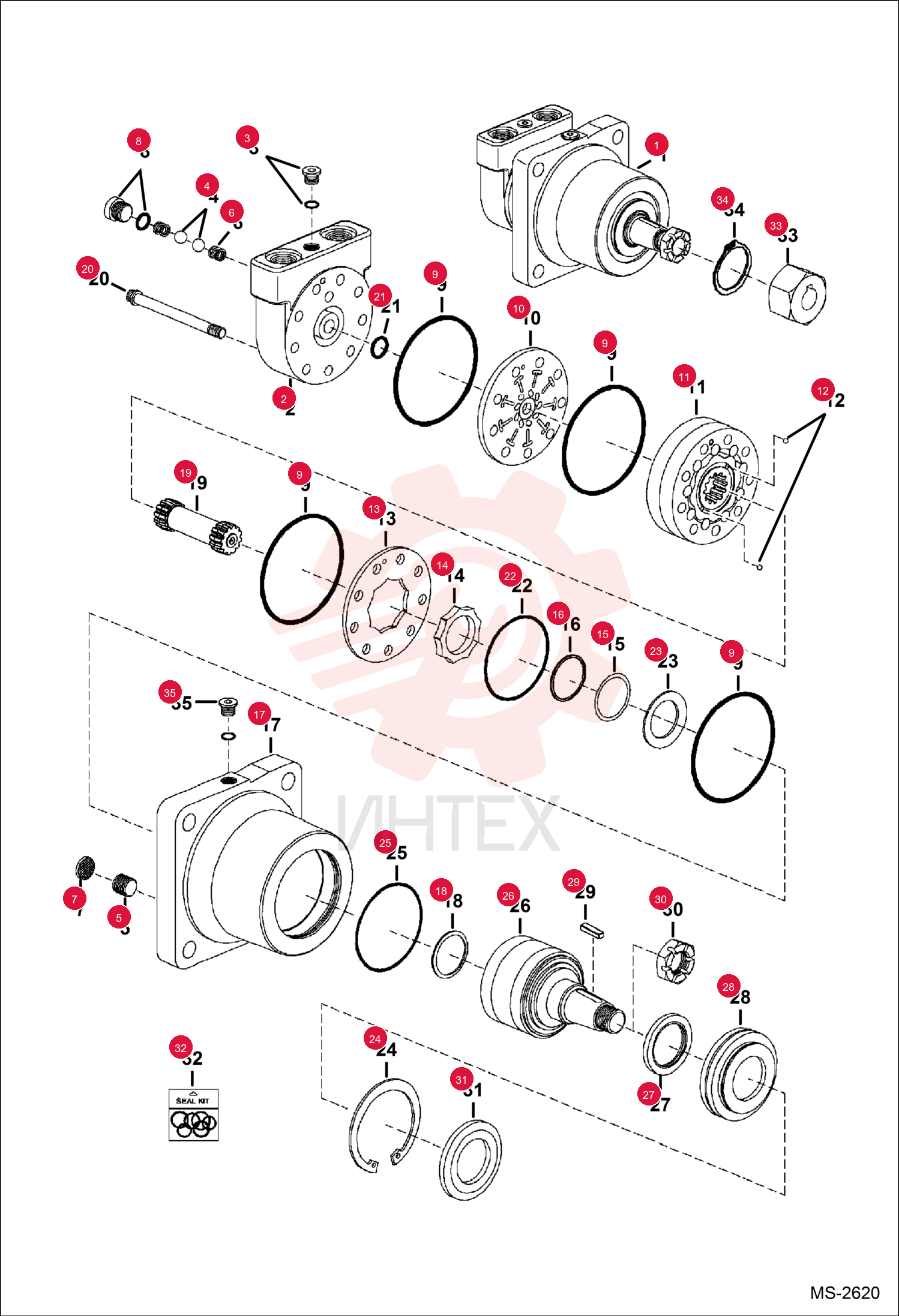

HOUSING, MOTOR 6689697 (1)

HOUSING, MOTOR 6689697 (1)

HOUSING, MOTOR 6689697 (1)

1 6689697

  • 6689697 - HOUSING
  • MOTOR

2 6668079

  • 6668079 - PLUG
  • MOTOR

3 6664428

  • 6664428 - BALL
  • STEEL
  • Was 6685065

4 6513533

  • 6513533 - SPRING

5 6850004

  • 6850004 - SCREEN
  • Was 6685066

6 6668089

  • 6668089 - PLUG
  • MOTOR

7 6678000

  • 6678000 - SEAL

8 6689698

  • 6689698 - PLATE

9 6691335

  • 6691335 - GEROLER
  • Use W/ 6689958 motor

10 6651542

  • 6651542 - BALL
  • STEEL

11 6689700

  • 6689700 - PLATE
  • balancing - outer

12 6678004

  • 6678004 - PLATE BALANCING
  • balancing - inner

13 6682860

  • 6682860 - O-RING

14 6678006

  • 6678006 - RING
  • BACK-UP

15 6691336

  • 6691336 - HOUSING

16 6664815

  • 6664815 - SEAL
  • OIL

17 6689741

  • 6689741 - DRIVE
  • Use W/ 6689958 motor

18 6689742

  • 6689742 - BOLT
  • Use W/ 6689958 motor

19 6669452

  • 6669452 - O-RING

20 6682897

  • 6682897 - SEAL

21 6685069

  • 6685069 - DISK
  • SPRING
  • belleville disc

22 6691337

  • 6691337 - RING
  • RETAINING

23 6513524

  • 6513524 - SEAL
  • O-RING
  • Was 6679818

24 7025099

  • 7025099 - MOTOR
  • HYD
  • Was 6691338

25 7277821

  • 7277821 - SEAL
  • SHAFT
  • Was 6691339

26 7025101

  • 7025101 - RETAINER
  • BEARING
  • Was 6691340

27 6669431

  • 6669431 - KEY
  • SQUARE

28 6669430

  • 6669430 - NUT
  • SLOTTED

29 6691420

  • 6691420 - GUARD
  • SEAL
  • 1.93" ID x 3.25" OD x .26" thick

30 6691341

  • 6691341 - SEAL KIT
  • W/Ref. 9
  • 15
  • 16
  • 18
  • 21
  • 22
  • 27 & 31

31 7121273

  • 7121273 - DRIVE
  • COUPLER MOTOR
  • hex - not included with motor

32 21J44

  • 21J44 - RING
  • SNAP
  • not included with motor

33 24K5

  • 24K5 - PLUG
