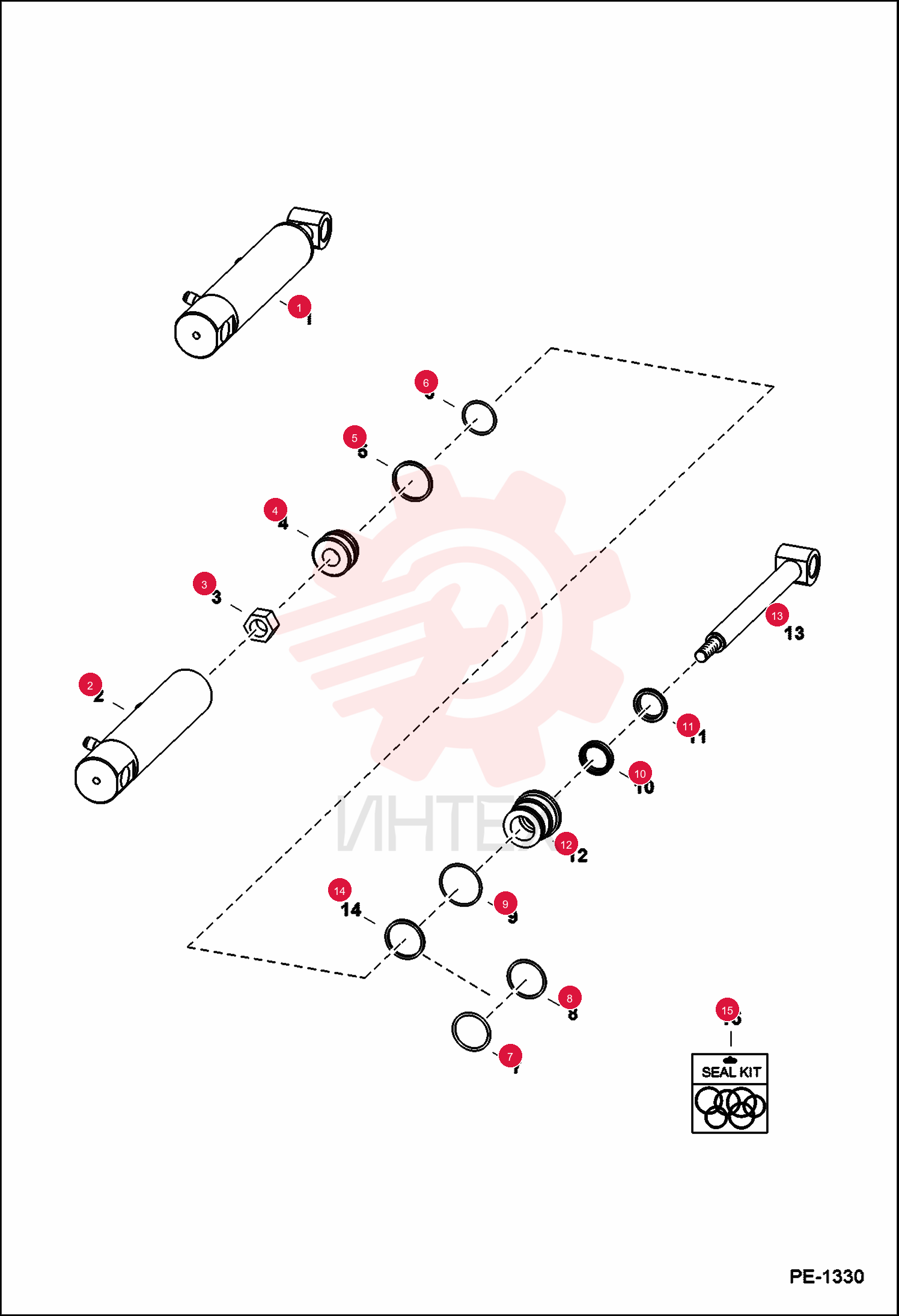

CYLINDER 6809501 (1)

CYLINDER 6809501 (1)

CYLINDER 6809501 (1)

1 6809501

  • 6809501 - CYLINDER
  • Ref. 2-13

2 6807379

  • 6807379 - CASE

3 92D14

  • 92D14 - NUT

4 6516231

  • 6516231 - SEAL

5 54K30118

  • 54K30118 - O-RING

6 6808338

  • 6808338 - PISTON
  • W/Ref. 4 & 5 - w/non- replaceable wear sleeves

7 54K40124

  • 54K40124 - O-RING

8 73K224

  • 73K224 - O-RING
  • back-up

9 82K136

  • 82K136 - O-RING
  • Was 58K136

10 6667324

  • 6667324 - SEAL
  • rod

11 6665208

  • 6665208 - WIPER
  • ROD CYL
  • wiper

12 6539323

  • 6539323 - HEAD
  • CYL LIFT

13 7137770

  • 7137770 - KIT
  • SEAL CYLINDER
  • Ref. 3-5 & 7-11 - Was 6804927
