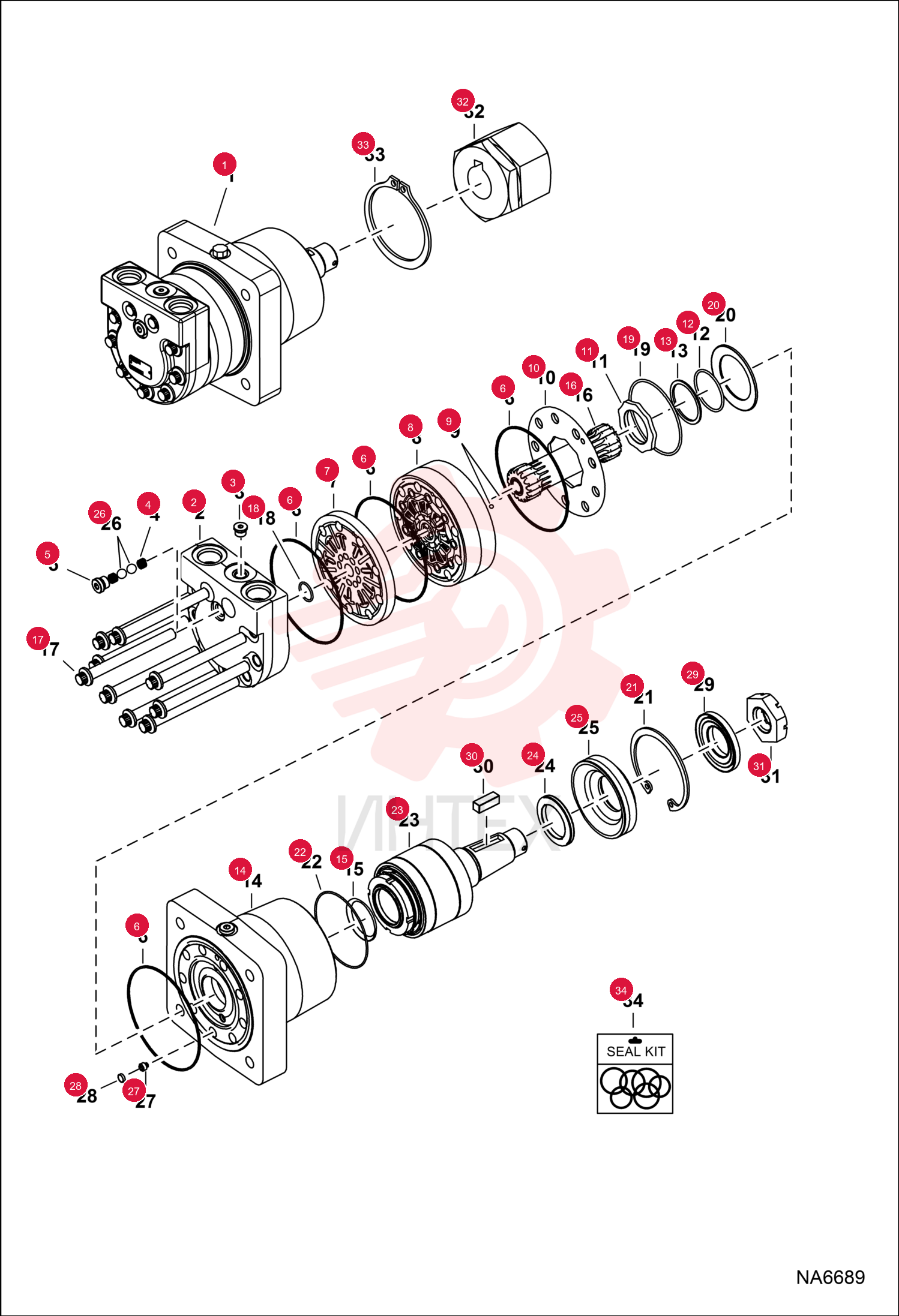

MOTOR, HYD 7025102 (2)

MOTOR, HYD 7025102 (2)

MOTOR, HYD 7025102 (2)

1 7025102

  • 7025102 - MOTOR
  • HYD
  • Ref. 2-30 - Eaton 180-0091-005

2 7025099

  • 7025099 - MOTOR
  • HYD
  • Ref. 2-30 - Eaton 180-0092-005

3 6689697

  • 6689697 - HOUSING
  • MOTOR

4 6668079

  • 6668079 - PLUG
  • MOTOR

5 79K5

  • 79K5 - O RING 10

6 6513533

  • 6513533 - SPRING

7 6668089

  • 6668089 - PLUG
  • MOTOR

8 79K6

  • 79K6 - O RING 10

9 6678000

  • 6678000 - SEAL

10 6689698

  • 6689698 - PLATE

11 7020789

  • 7020789 - GEROLER
  • Use W/ 7025099 motor

12 7020942

  • 7020942 - ROTOR ASSEMBLY
  • Use W/ 7025102 motor

13 6651542

  • 6651542 - BALL
  • STEEL

14 6689700

  • 6689700 - PLATE
  • outer

15 6678004

  • 6678004 - PLATE BALANCING
  • inner

16 6682860

  • 6682860 - O-RING

17 6678006

  • 6678006 - RING
  • BACK-UP

18 6664815

  • 6664815 - SEAL
  • OIL

19 7020944

  • 7020944 - SHAFT
  • DRIVE
  • Use W/ 7025102 motor

20 7020790

  • 7020790 - SHAFT
  • DRIVE
  • Use W/ 7025099 motor

21 6682863

  • 6682863 - BOLT
  • Use W/ 7025102 motor

22 6689742

  • 6689742 - BOLT
  • Use W/ 7025099 motor

23 6669452

  • 6669452 - O-RING

24 6682897

  • 6682897 - SEAL

25 6685069

  • 6685069 - DISK
  • SPRING

26 6691337

  • 6691337 - RING
  • RETAINING

27 6513524

  • 6513524 - SEAL
  • O-RING

28 7025100

  • 7025100 - SHAFT
  • OUTPUT

29 7277821

  • 7277821 - SEAL
  • SHAFT
  • Was 6691339

30 7025101

  • 7025101 - RETAINER
  • BEARING

31 6664428

  • 6664428 - BALL
  • STEEL

32 6850004

  • 6850004 - SCREEN

33 6691420

  • 6691420 - GUARD
  • SEAL
  • 1.93" ID x 3.25" OD x .26" thick

34 6669431

  • 6669431 - KEY
  • SQUARE

35 6669430

  • 6669430 - NUT
  • SLOTTED

36 7121273

  • 7121273 - DRIVE
  • COUPLER MOTOR
  • hex - not included W/motor

37 21J44

  • 21J44 - RING
  • SNAP
  • not included W/motor

38 6691341

  • 6691341 - SEAL KIT
  • Ref. 12
  • 13
  • 15
  • 18
  • 19
  • 22
  • 24
  • 29 & (4) of Ref. 6
