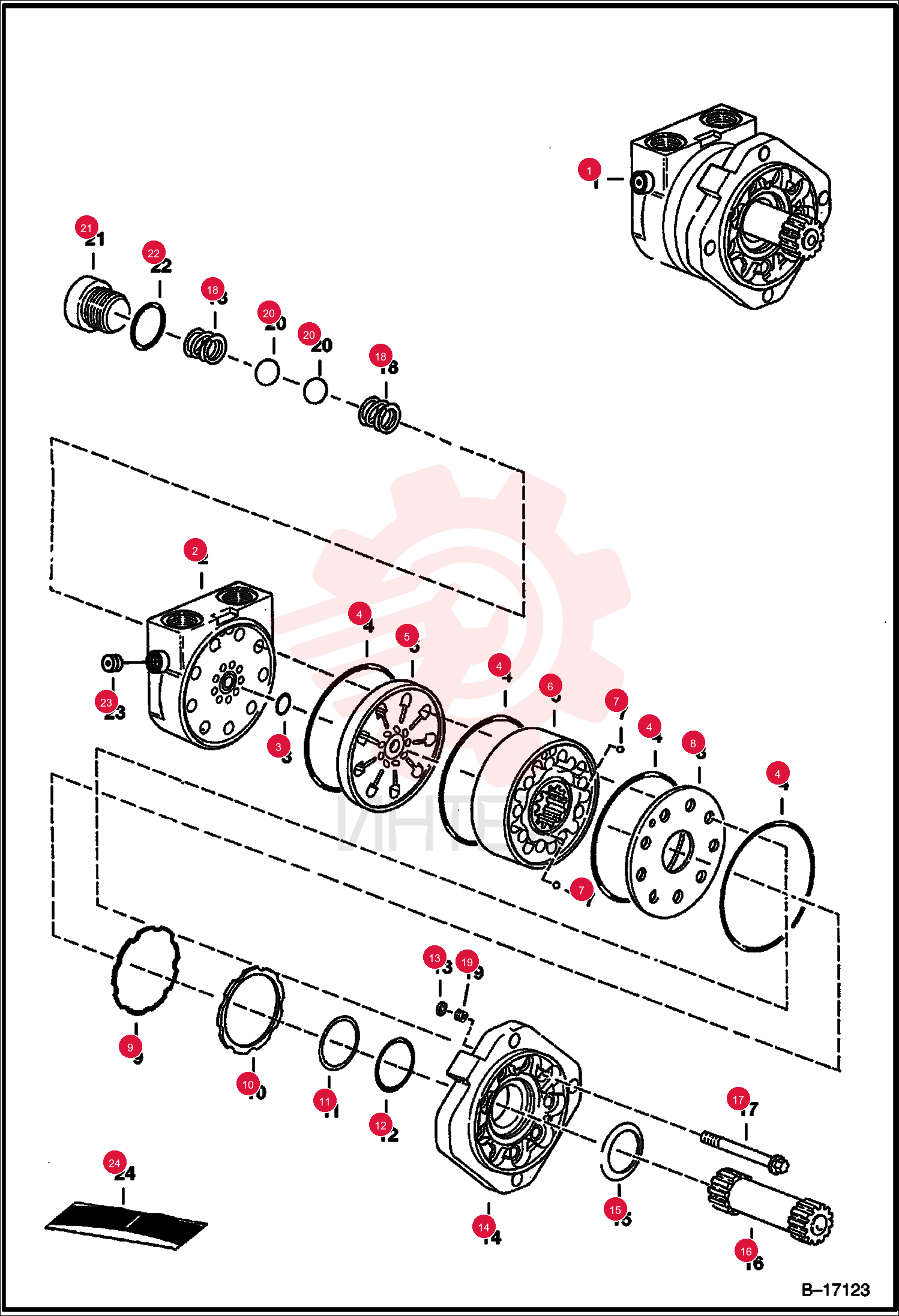

HOUSING 6673699

HOUSING 6673699

HOUSING 6673699

1 6673699

  • 6673699 - HOUSING

2 6669452

  • 6669452 - O-RING

3 6669446

  • 6669446 - O-RING
  • square cut - Was 6673700

4 6669447

  • 6669447 - PLATE
  • valve

5 6651542

  • 6651542 - BALL
  • STEEL

6 6669454

  • 6669454 - RING
  • BACK-UP
  • backup

7 6669453

  • 6669453 - SEAL

8 6669450

  • 6669450 - RING
  • BACK-UP
  • backup

9 6669449

  • 6669449 - O-RING

10 6673705

  • 6673705 - SCREEN

11 6664815

  • 6664815 - SEAL
  • OIL

12 6673703

  • 6673703 - SHAFT
  • drive

13 6673704

  • 6673704 - BOLT

14 6513533

  • 6513533 - SPRING

15 6673706

  • 6673706 - PLUG
  • orifice

16 6664428

  • 6664428 - BALL
  • STEEL

17 6668089

  • 6668089 - PLUG
  • MOTOR
  • W/ Ref. 22

18 79K6

  • 79K6 - O RING 10

19 90K4

  • 90K4 - PLUG
  • Was 90KN00004B

20 6669455

  • 6669455 - KIT
  • SEAL
  • Ref. 3
  • 4
  • 9-12
  • 15 & 22
