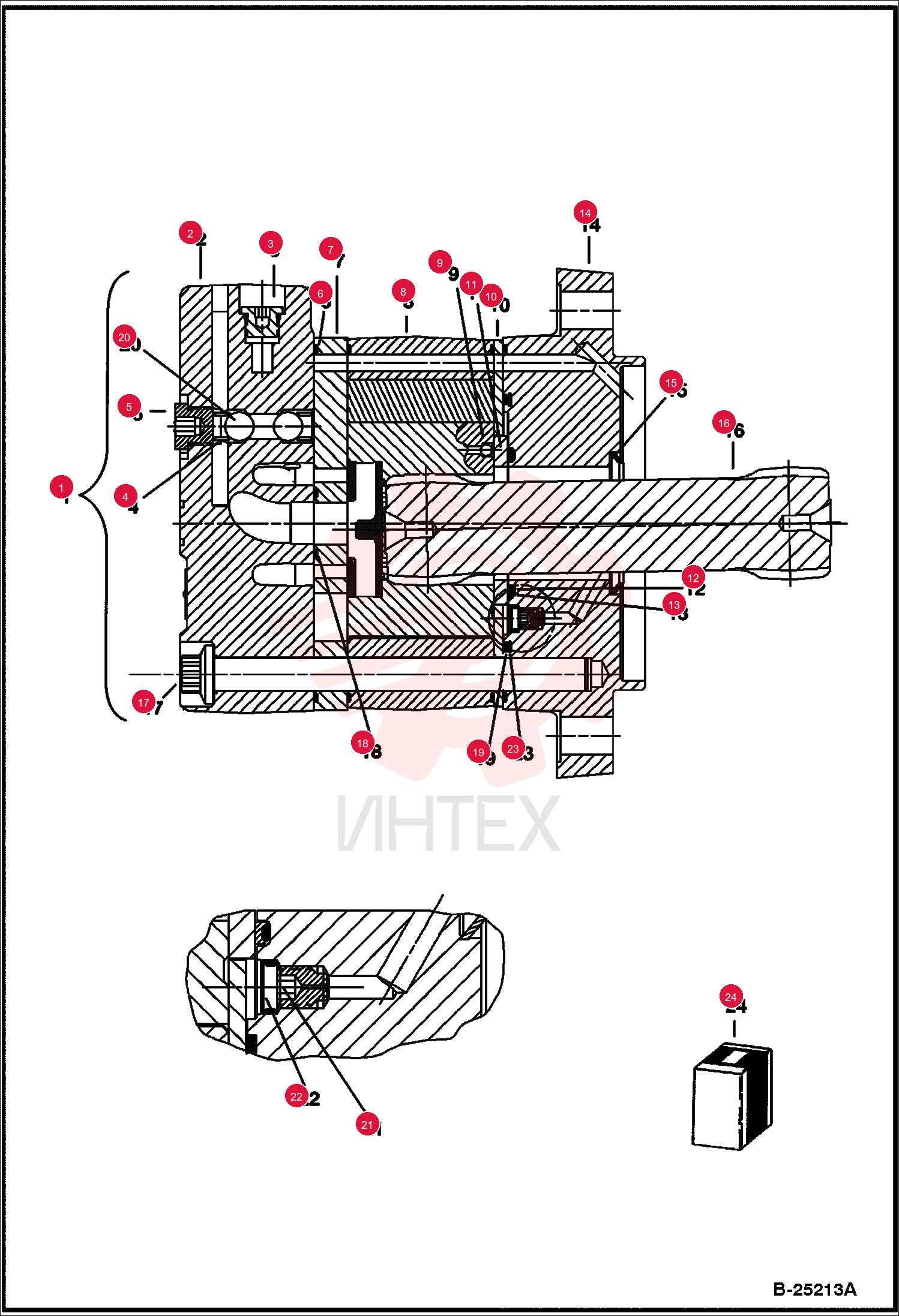

MOTOR, DRIVE HYD 7120100

MOTOR, DRIVE HYD 7120100

MOTOR, DRIVE HYD 7120100

1 7120100

  • 7120100 - MOTOR
  • DRIVE HYD
  • Model 161-0083-005 or 161-0094-005 - Ref. 2-23

2 6689697

  • 6689697 - HOUSING
  • MOTOR

3 6668079

  • 6668079 - PLUG
  • MOTOR

4 6513533

  • 6513533 - SPRING

5 6668089

  • 6668089 - PLUG
  • MOTOR

6 6678000

  • 6678000 - SEAL

7 6689698

  • 6689698 - PLATE
  • valve

8 6651542

  • 6651542 - BALL
  • STEEL

9 6689700

  • 6689700 - PLATE
  • balancing - outer

10 6678004

  • 6678004 - PLATE BALANCING
  • balancing - inner

11 6682860

  • 6682860 - O-RING

12 6678006

  • 6678006 - RING
  • BACK-UP

13 6685553

  • 6685553 - FLANGE
  • MOUNTING

14 6664815

  • 6664815 - SEAL
  • OIL

15 6682862

  • 6682862 - SHAFT
  • DRIVE

16 6682863

  • 6682863 - BOLT

17 6669452

  • 6669452 - O-RING

18 6682897

  • 6682897 - SEAL

19 6664428

  • 6664428 - BALL
  • STEEL

20 6850004

  • 6850004 - SCREEN

21 6685069

  • 6685069 - DISK
  • SPRING

22 6689679

  • 6689679 - SEAL KIT
  • Ref. 3
  • 5
  • 6
  • 12
  • 13
  • 15
  • 18 & 19
