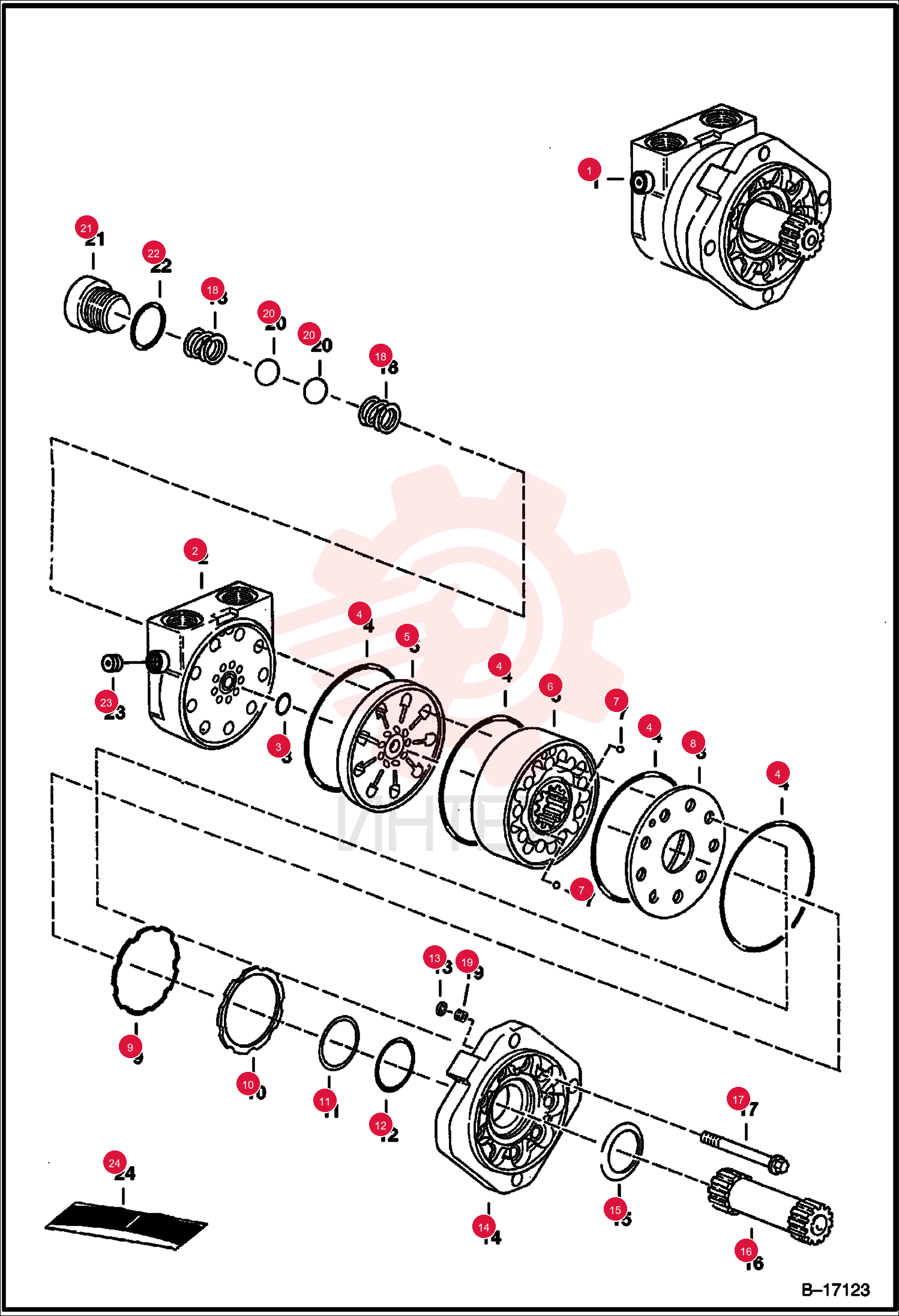

O-RING 6669452 (1)

O-RING 6669452 (1)

O-RING 6669452 (1)

1 6669452

  • 6669452 - O-RING

2 6669446

  • 6669446 - O-RING
  • square cut - Was 6673700

3 6669447

  • 6669447 - PLATE
  • valve

4 6669468

  • 6669468 - GEROLER

5 6651542

  • 6651542 - BALL
  • STEEL

6 6669454

  • 6669454 - RING
  • BACK-UP
  • backup

7 6669453

  • 6669453 - SEAL

8 6669450

  • 6669450 - RING
  • BACK-UP
  • backup

9 6669449

  • 6669449 - O-RING

10 6850004

  • 6850004 - SCREEN
  • Was 6673705

11 6664815

  • 6664815 - SEAL
  • OIL

12 6669469

  • 6669469 - SHAFT
  • drive

13 6669470

  • 6669470 - BOLT

14 6513533

  • 6513533 - SPRING

15 6664428

  • 6664428 - BALL
  • STEEL

16 6668089

  • 6668089 - PLUG
  • MOTOR
  • W/ Ref. 22

17 79K6

  • 79K6 - O RING 10

18 90K4

  • 90K4 - PLUG
  • Was 90KN00004B

19 6669455

  • 6669455 - KIT
  • SEAL
  • Ref. 3
  • 4
  • 9-12
  • 15 & 22
