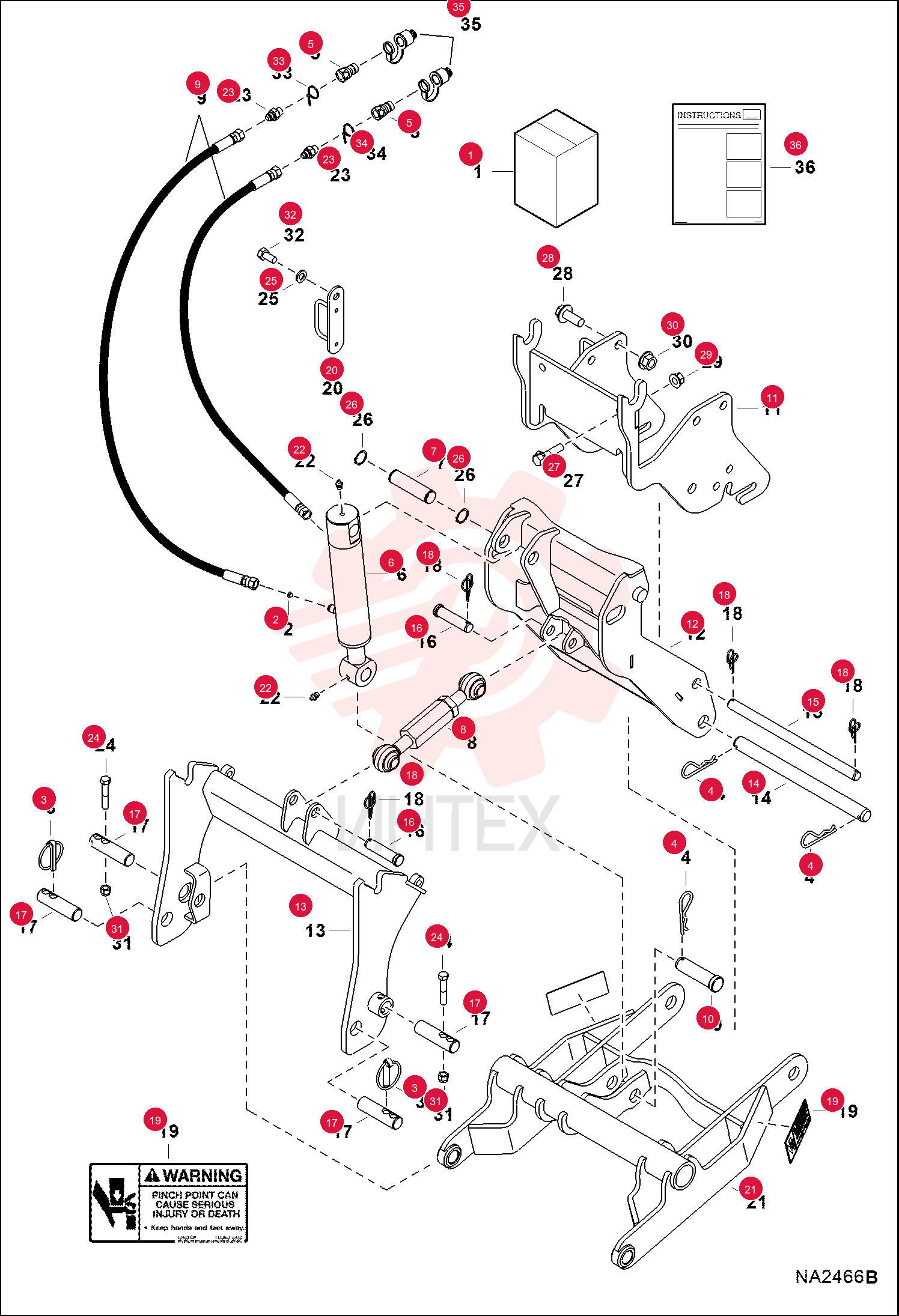

ORIFICE 6586430 (2)

ORIFICE 6586430 (2)

ORIFICE 6586430 (2)

1 6586430

  • 6586430 - ORIFICE

2 6668928

  • 6668928 - PIN
  • LOCK

3 6675029

  • 6675029 - PIN

4 7017076

  • 7017076 - KIT
  • SEAL
  • Faster

5 7190242

  • 7190242 - COUPLER
  • POPPET MALE
  • Faster

6 6809501

  • 6809501 - CYLINDER

7 6815505

  • 6815505 - PIN

8 7003512

  • 7003512 - LINK ASSEMBLY

9 7142444

  • 7142444 - HOSE
  • HYD ASSY

10 7176940

  • 7176940 - PIN

11 7178896

  • 7178896 - MOUNT

12 7178899

  • 7178899 - MOUNT
  • FRONT

13 7178920

  • 7178920 - HITCH
  • LIFT FRONT

14 7178965

  • 7178965 - PIN
  • PIVOT

15 7178966

  • 7178966 - PIN
  • MOUNTING

16 7178969

  • 7178969 - PIN

17 7183277

  • 7183277 - PIN

18 7183708

  • 7183708 - RING
  • RETAINING

19 7183845

  • 7183845 - DECAL
  • WARNING

20 7184983

  • 7184983 - GUIDE
  • HOSE

21 7185365

  • 7185365 - LINK
  • LIFT

22 10H25

  • 10H25 - FTG GREASE STRAIGHT

23 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR

24 17C736

  • 17C736 - BOLT

25 1EM120

  • 1EM120 - WASHER

26 21J16

  • 21J16 - SNAP RING

27 29CM1450

  • 29CM1450 - BOLT

28 29CM1640

  • 29CM1640 - BOLT

29 43DM14

  • 43DM14 - NUT

30 43DM16

  • 43DM16 - NUT

31 59D7

  • 59D7 - NUT

32 5CM1225

  • 5CM1225 - BOLT

33 6693543

  • 6693543 - BAND
  • SPIRAL YELLOW

34 6693544

  • 6693544 - BAND
  • SPIRAL GREEN

35 7188736

  • 7188736 - COVER
  • DUST

36 6989403

  • 6989403 - INSTRUCTIONS
