Главная
/
Бренды
/
Bobcat
/
Angle Broom
/

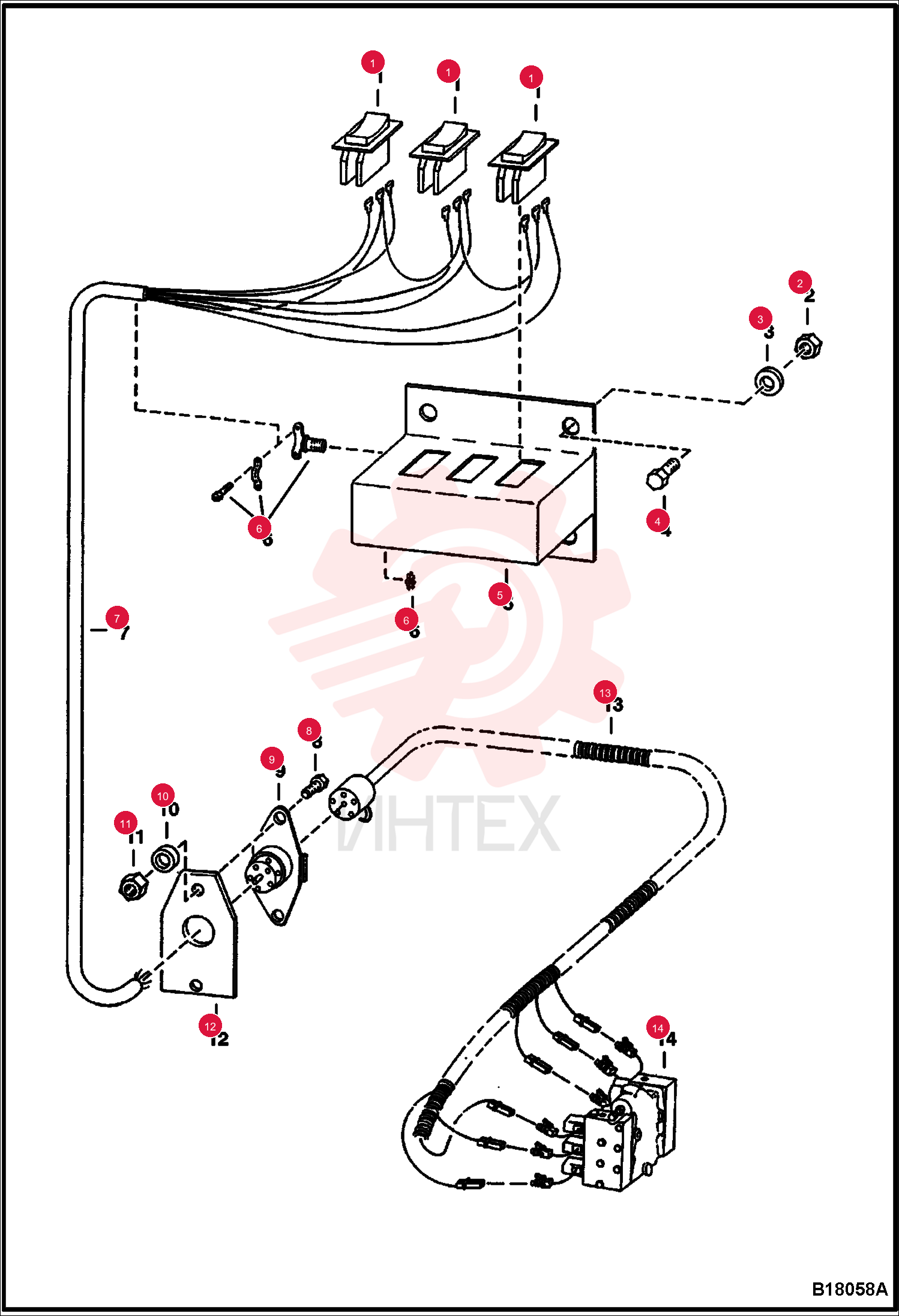

NUT 5 61D4

NUT 5 61D4

NUT 5 61D4

1 61D4

  • 61D4 - NUT 5

2 23E4

  • 23E4 - WASHER

3 17C412

  • 17C412 - BOLT 5

4 6649324

  • 6649324 - BOX

5 6649028

  • 6649028 - CONNECTOR

6 17C516

  • 17C516 - BOLT

7 6648629

  • 6648629 - SOCKET

8 23E5

  • 23E5 - L WASHER

9 61D5

  • 61D5 - NUT HEX FINISHED GR5

10 6649330

  • 6649330 - BRACKET

11 6648627

  • 6648627 - HARNESS

12 6659299

  • 6659299 - HARNESS

13 6665869

  • 6665869 - HARNESS
  • 14 pin - weather pack connectors
