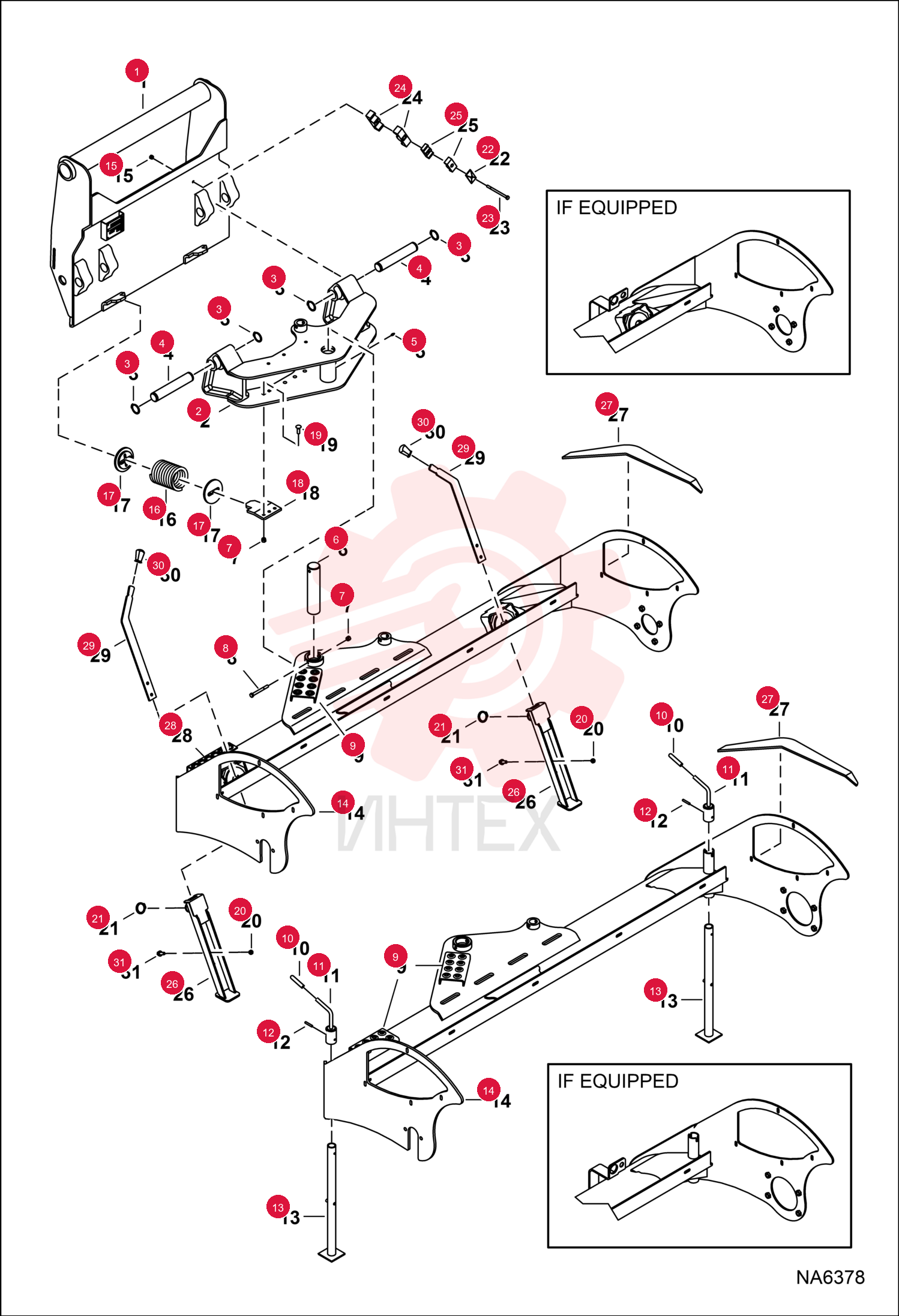

FRAME 6906628 (1)

FRAME 6906628 (1)

FRAME 6906628 (1)

1 6906628

  • 6906628 - FRAME
  • mounting

2 6714203

  • 6714203 - PIVOT

3 22J24

  • 22J24 - RING
  • SNAP
  • Was 6538285

4 6714161

  • 6714161 - PIN

5 10H35

  • 10H35 - FTG GREASE STRAIGHT

6 6714163

  • 6714163 - PIN

7 59D6

  • 59D6 - NUT LOCK HEX PT

8 17C656

  • 17C656 - BOLT

9 6905990

  • 6905990 - STEP

10 6657337

  • 6657337 - GRIP

11 6714197

  • 6714197 - HANDLE
  • CRANKING

12 14J2526

  • 14J2526 - PIN

13 6714205

  • 6714205 - STAND
  • ANGLE BROOM
  • round frame

14 6714206

  • 6714206 - FRAME
  • MAIN

15 7130504

  • 7130504 - MAIN FRAME

16 7197530

  • 7197530 - MAIN FRAME
  • Use W/square frame stand

17 59D5

  • 59D5 - NUT LOCK HEX PT

18 6716549

  • 6716549 - SPRING
  • COIL

19 6716508

  • 6716508 - DISC

20 6716509

  • 6716509 - BRACKET

21 37C620

  • 37C620 - BOLT CARRIAGE

22 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

23 22J24

  • 22J24 - RING
  • SNAP

24 6673015

  • 6673015 - CLAMP

25 17C572

  • 17C572 - BOLT

26 7248556

  • 7248556 - CLAMP
  • HOSE
  • Was 6595353

27 6673016

  • 6673016 - CLAMP

28 7203125

  • 7203125 - STAND
  • ANGLE BROOM
  • square frame

29 6905994

  • 6905994 - BRACE

30 6577917

  • 6577917 - STEP

31 7203165

  • 7203165 - HANDLE
  • STAND

32 6564452

  • 6564452 - GRIP LEVER

33 31C616

  • 31C616 - SCREW
