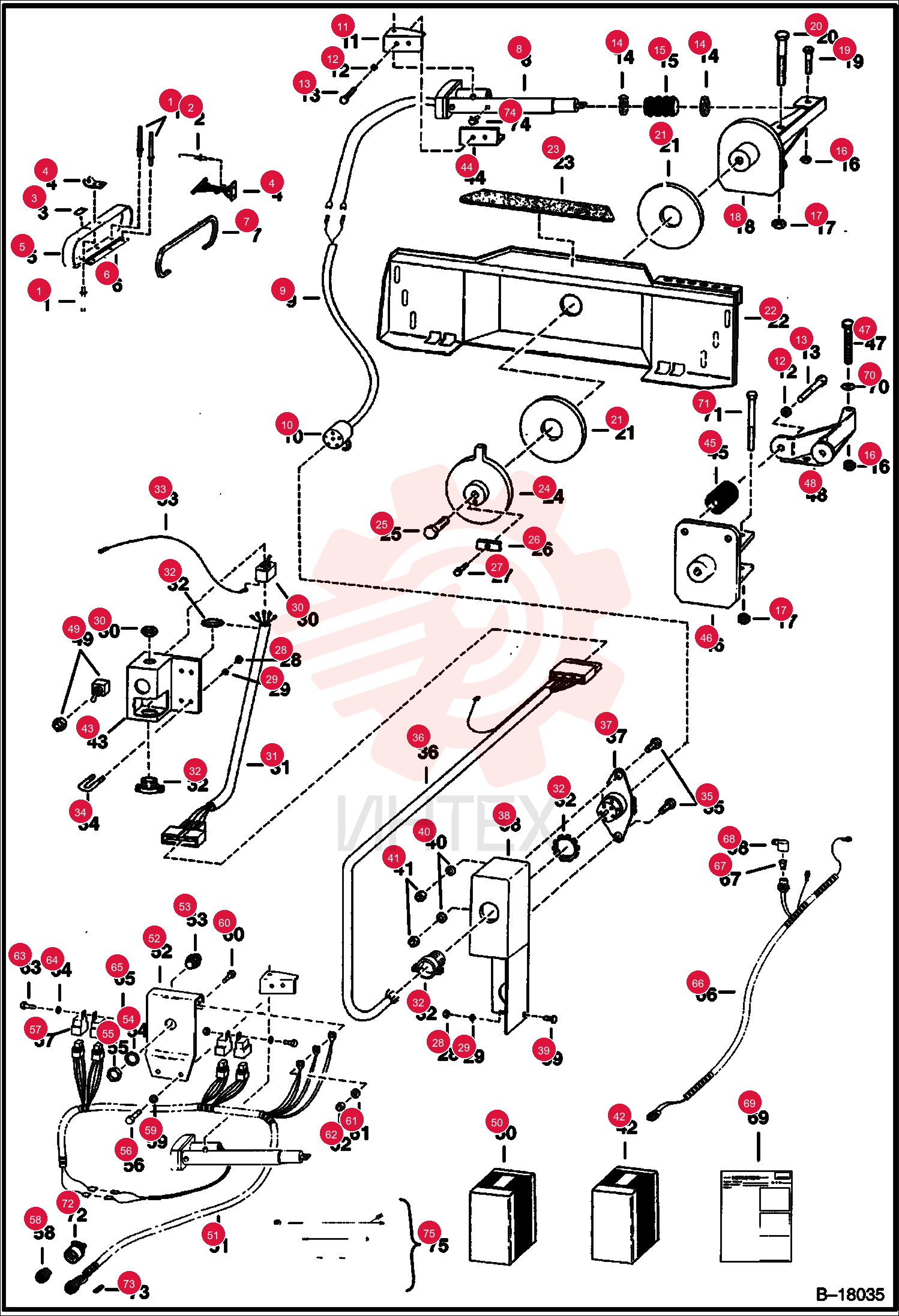

RIVET 6657352 (1)
1 6657352
- 6657352 - RIVET
2 6657353
- 6657353 - RIVET
3 6657355
- 6657355 - LATCH
4 6657356
- 6657356 - COVER
5 6657357
- 6657357 - HINGE
6 6657358
- 6657358 - MOLDING
7 6664229
- 6664229 - MOTOR KIT
- Burr
8 6664230
- 6664230 - TUBE KIT
- Burr
9 6664228
- 6664228 - ACTUATOR
- Burr
10 6657360
- 6657360 - HARNESS
- for 4 post switch
11 6658141
- 6658141 - HARNESS
- for 6 post switch
12 6659845
- 6659845 - WIRE
- Less plug-in for 6658141
13 6648630
- 6648630 - PLUG
- 6 way
14 6657361
- 6657361 - MOUNT
15 23E8
- 23E8 - WASHER
16 17C816
- 17C816 - BOLT
17 42H32
- 42H32 - HS CLAMP5
18 6657362
- 6657362 - BOOT
19 81D8
- 81D8 - NUT
20 82D16
- 82D16 - NUT
21 17C840
- 17C840 - BOLT
22 18C1696
- 18C1696 - BOLT
23 6657365
- 6657365 - MOUNT
- Bob-Tach
24 6569233
- 6569233 - TREAD
- SAFETY
- trim to fit - Was 6657366
25 6657367
- 6657367 - PLATE
26 18C1632
- 18C1632 - BOLT
27 6657368
- 6657368 - PLATE
28 17C616
- 17C616 - BOLT 5
29 61D5
- 61D5 - NUT HEX FINISHED GR5
30 23E5
- 23E5 - L WASHER
31 6659846
- 6659846 - SWITCH
- 4 post
32 6655699
- 6655699 - SWITCH
- 6 post
33 6656163
- 6656163 - HARNESS
- for 6 post switch
34 6659847
- 6659847 - HARNESS
- for 4 post switch
35 6649082
- 6649082 - 6649028
36 6648625
- 6648625 - U-BOLT
37 17C412
- 17C412 - BOLT 5
38 6649029
- 6649029 - W AND B ASSY
39 6648629
- 6648629 - SOCKET
40 6660063
- 6660063 - MOUNT
- Was 6648628
41 17C516
- 17C516 - BOLT
42 4E4
- 4E4 - WASHER
43 61D4
- 61D4 - NUT 5
44 6709152
- 6709152 - AUXPWRKIT
- Auxiliary power - W/Ref. 66-69 Provides an isolated power supply & individual fuse for electric motor control
45 6655696
- 6655696 - BOX
46 6659334
- 6659334 - MTG BRKT
47 6648646
- 6648646 - MOUNT
- LOAD ISOLATOR
48 6659842
- 6659842 - BRACKET
49 17C848
- 17C848 - BOLT
50 6659843
- 6659843 - MOUNT
51 6664856
- 6664856 - KIT
- WIRING
- Wiring - W/Ref. 51 - 57 - For Multi Switch Handles
52 6706806
- 6706806 - HARNESS
53 6664857
- 6664857 - MOUNT
54 6664038
- 6664038 - PLUG CAP
55 6664037
- 6664037 - WASHER
56 6664036
- 6664036 - NUT
57 17C820
- 17C820 - BOLT 5
58 6651975
- 6651975 - SWITCH
- RELAY MAGNETIC
- mag
59 6664034
- 6664034 - CONNECTOR
60 4E8
- 4E8 - WASHER
61 17C612
- 17C612 - SCREW HEX CAP
62 4E6
- 4E6 - WASHER
63 63D8
- 63D8 - NUT
64 17C412
- 17C412 - BOLT 5
65 4E4
- 4E4 - WASHER
66 85D4
- 85D4 - NUT 5
67 6707346
- 6707346 - HARNESS
- auxiliary power - W/Ref. 67 & 68
68 6702444
- 6702444 - FUSE 25A 5
69 6657306
- 6657306 - CAP
- FUSE
70 6722954
- 6722954 - INSTRUCTIONS
- - for Ref. 42 kit
71 25E22
- 25E22 - WASHER
72 18C16112
- 18C16112 - BOLT
73 6669286
- 6669286 - CLAMP
- with saddles
74 6664041
- 6664041 - PIN 10
- female
75 6671009
- 6671009 - FITTING
- GREASE
76 6714216
- 6714216 - HARNESSAY
- See Serviceletter
