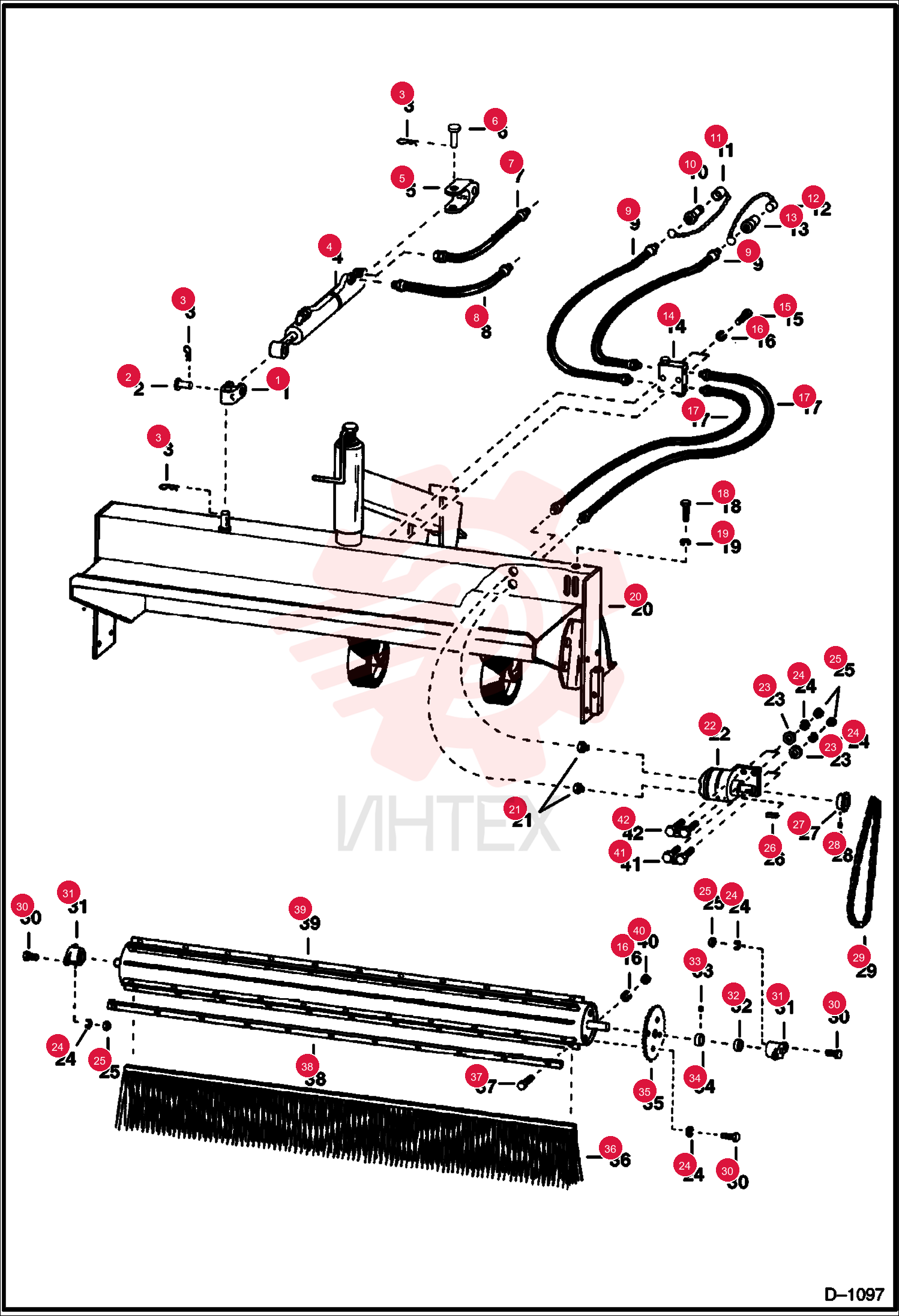

BRACKET 6508334

BRACKET 6508334

BRACKET 6508334

1 6508334

  • 6508334 - BRACKET

2 6520730

  • 6520730 - PIN

3 1320075

  • 1320075 - PIN
  • COTTER

4 6508333

  • 6508333 - BRACKET

5 6520729

  • 6520729 - PIN

6 6501050

  • 6501050 - ASSY
  • HOSE
  • Was 6508336

7 6508337

  • 6508337 - HOSE

8 6508527

  • 6508527 - HOSE
  • hydraulic

9 6508345

  • 6508345 - HOSE

10 6598755

  • 6598755 - COUPLER
  • male half

11 6515168

  • 6515168 - CAP
  • W/Chain

12 6515167

  • 6515167 - CAP
  • W/Chain

13 6598756

  • 6598756 - COUPLER
  • female half

14 25K40026

  • 25K40026 - O RING 10

15 17C536

  • 17C536 - BOLT

16 4E5

  • 4E5 - WASHER

17 550873

  • 550873 - HOSE

18 17C832

  • 17C832 - BOLT

19 4E8

  • 4E8 - WASHER

20 19F9

  • 19F9 - BUSHING

21 6515465

  • 6515465 - MOTOR
  • hydraulic

22 25E19

  • 25E19 - WASHER

23 4E7

  • 4E7 - WASHER

24 61D7

  • 61D7 - NUT

25 7J2104

  • 7J2104 - KEY
  • square

26 6520616

  • 6520616 - SPROCKET

27 15G406

  • 15G406 - SCREW

28 6508335

  • 6508335 - CHAIN
  • No. 40 - 94 pitches - W/Connector Link

29 6564943

  • 6564943 - CON LINK
  • connector

30 17C724

  • 17C724 - BOLT

31 6531100

  • 6531100 - BEARING
  • W/Ref. 32 - 34 - Was 6518258

32 6518259

  • 6518259 - BEARING

33 6515095

  • 6515095 - COLLAR
  • locking - W/Ref. 33

34 6508602

  • 6508602 - SPROCKET

35 6508338

  • 6508338 - BRISTLE
  • polypropylene

36 6508596

  • 6508596 - BRISTLE
  • wire

37 17C520

  • 17C520 - BOLT 5

38 6508460

  • 6508460 - STRAP
  • brush retainer

39 6508332

  • 6508332 - CORE
  • brush

40 61D5

  • 61D5 - NUT HEX FINISHED GR5

41 6508344

  • 6508344 - BRACKET

42 6508331

  • 6508331 - BRACKET
