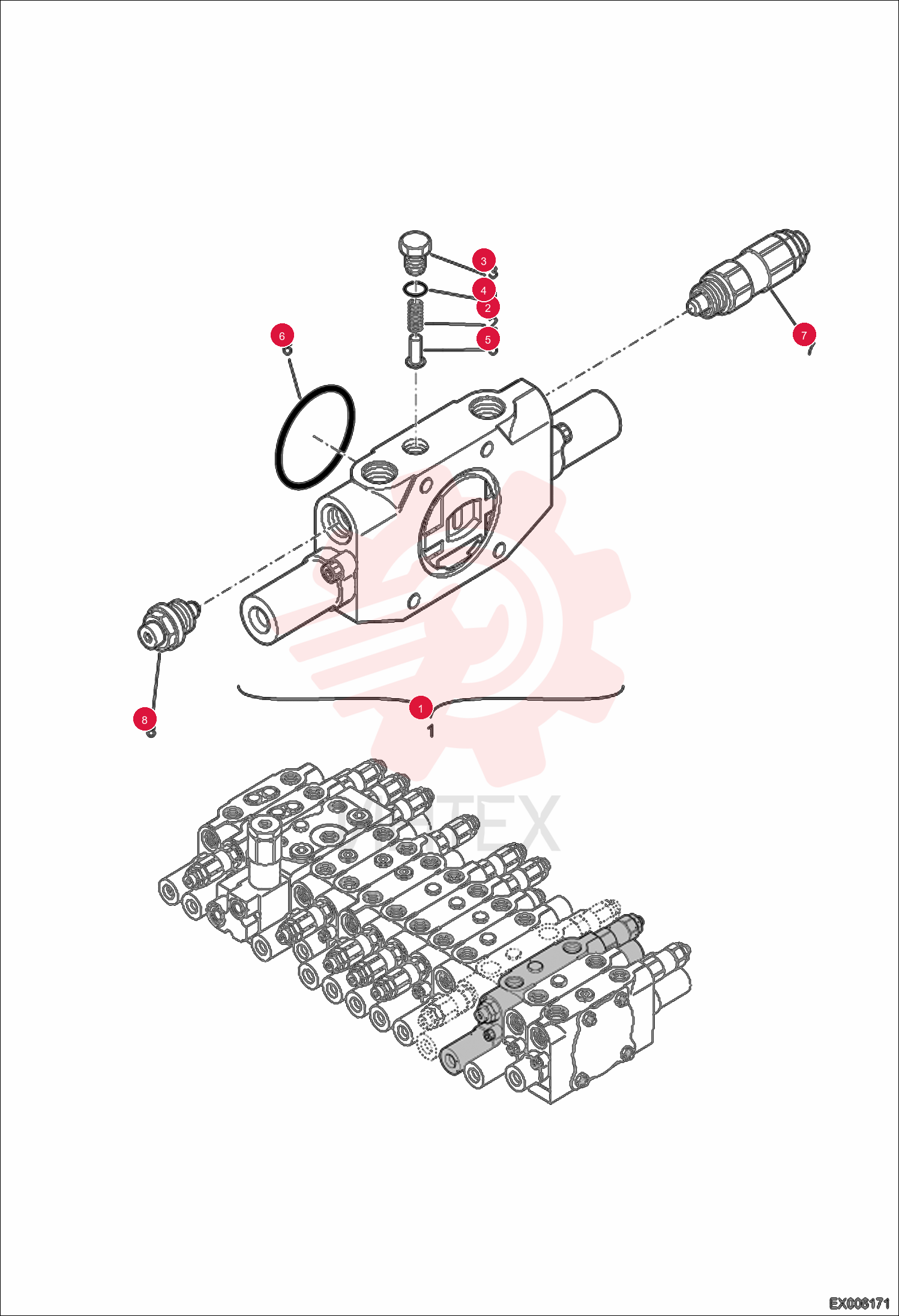

BLOCK ASSY-BOOM SWING 7007056

BLOCK ASSY-BOOM SWING 7007056

BLOCK ASSY-BOOM SWING 7007056

1 7007056

  • 7007056 - BLOCK ASSY-BOOM SWING
  • offset - W/Ref. 2-6

2 7006936

  • 7006936 - SPRING

3 7006942

  • 7006942 - PLUG

4 7006934

  • 7006934 - ORING

5 7006935

  • 7006935 - ORIFICE POPPET

6 7007937

  • 7007937 - O-RING

7 7006926

  • 7006926 - VALVE RELIEF ASSY

8 7006944

  • 7006944 - VALVE SHUT OFF
