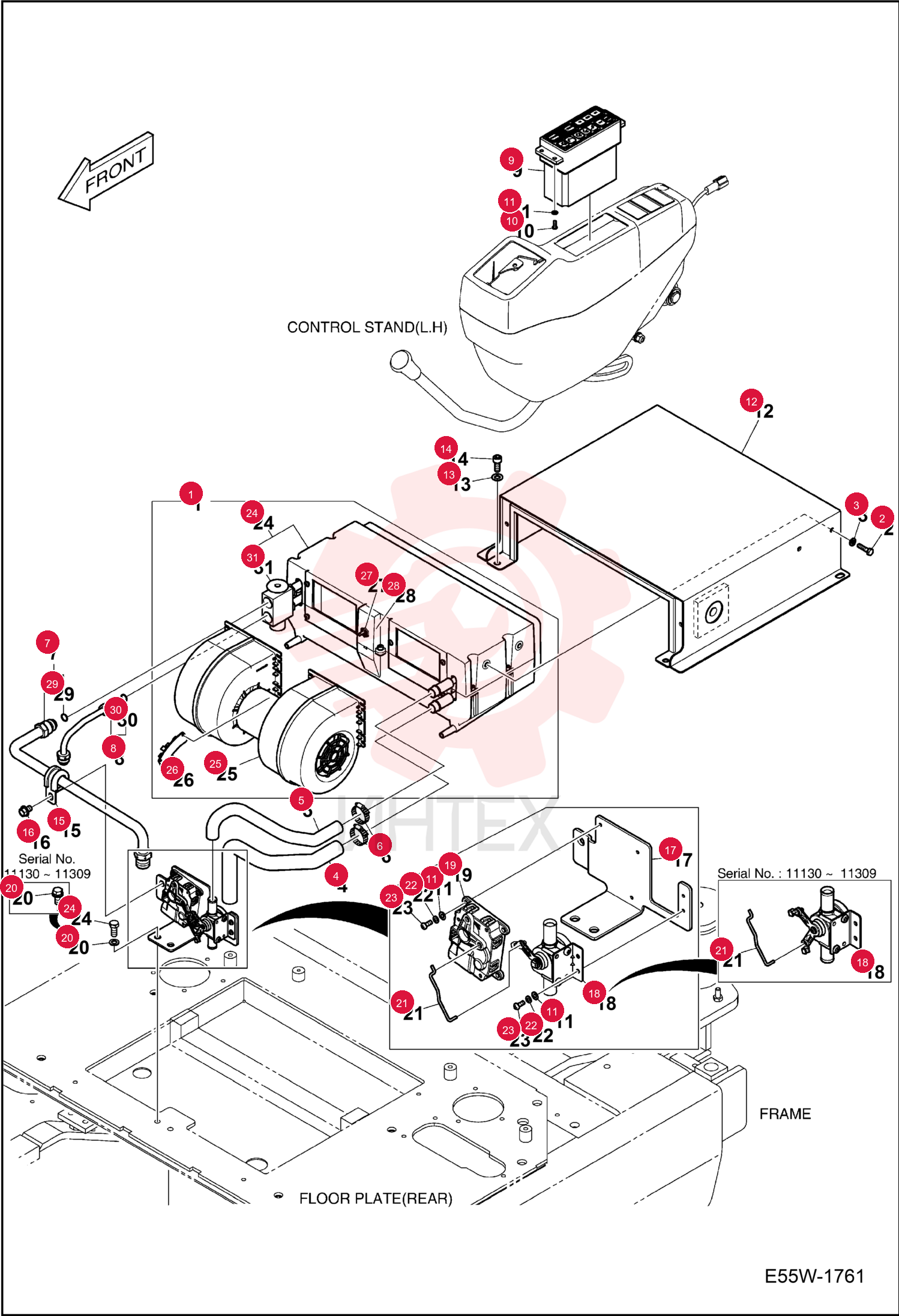

HVAC ASSEMBLY 7028922

HVAC ASSEMBLY 7028922

HVAC ASSEMBLY 7028922

1 7028922

  • 7028922 - HVAC ASSEMBLY

2 7007609

  • 7007609 - BOLT

3 7007833

  • 7007833 - WASHER
  • SPRING

4 7345870

  • 7345870 - HOSE
  • A/C

5 7345871

  • 7345871 - HOSE
  • A/C

6 7007974

  • 7007974 - CLAMP

7 7280833

  • 7280833 - CLAMP

8 7330161

  • 7330161 - CLIP HOSE

9 7005977

  • 7005977 - TUBELINE A/C SUCTION

10 7005978

  • 7005978 - TUBELINE A/C LIQUID

11 7331128

  • 7331128 - TUBELINE A/C LIQUID

12 7005714

  • 7005714 - CONTROLLER A/C

13 7007777

  • 7007777 - BOLT

14 7007809

  • 7007809 - WASHER

15 7021831

  • 7021831 - PLATE

16 7004511

  • 7004511 - WASHER

17 7007735

  • 7007735 - BOLT

18 7003895

  • 7003895 - CLIP

19 7005629

  • 7005629 - BOLT

20 7283565

  • 7283565 - BRACKET

21 7336491

  • 7336491 - VALVE STEM

22 7029229

  • 7029229 - VALVE
  • HEATER CAB
  • Was 7029299

23 7024711

  • 7024711 - BOLT

24 7288595

  • 7288595 - WASHER

25 7029224

  • 7029224 - ROD
  • CONTROL

26 7007826

  • 7007826 - WASHER SPRING

27 7029353

  • 7029353 - SCREW

28 7006233

  • 7006233 - CORE ASSEMBLY

29 7028698

  • 7028698 - BLOWER
  • ASS'Y

30 7006235

  • 7006235 - RESISTOR BOX ASSY

31 7022725

  • 7022725 - THERMOSTAT

32 7028976

  • 7028976 - COVER
  • THERMOSTAT

33 7006239

  • 7006239 - O-RING

34 7006238

  • 7006238 - O-RING

35 7306912

  • 7306912 - VALVE
  • EXPANSION
