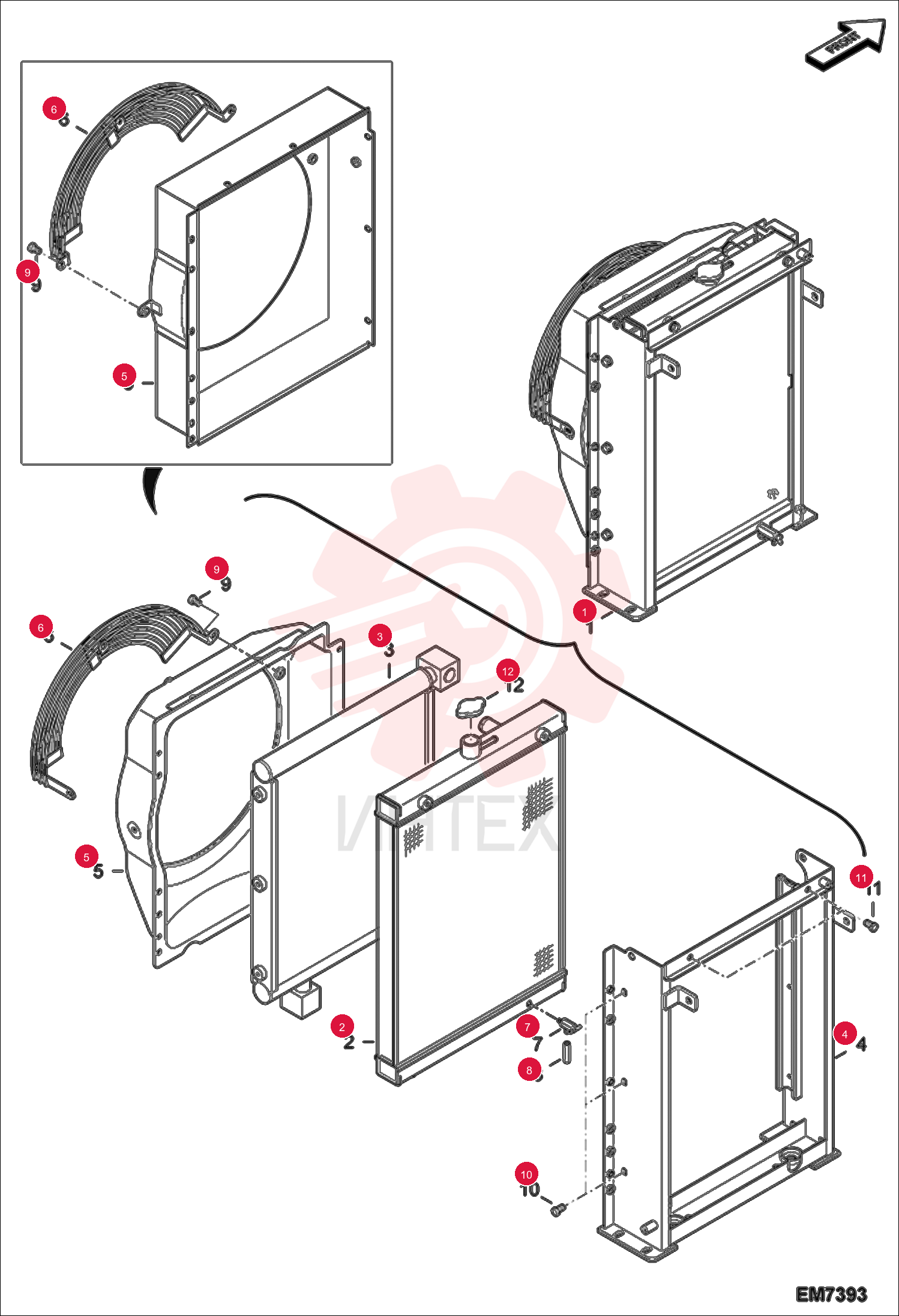

RADIATOR ASSEMBLY 7018645

RADIATOR ASSEMBLY 7018645

RADIATOR ASSEMBLY 7018645

1 7018645

  • 7018645 - RADIATOR ASSEMBLY
  • Ref. 2-12

2 7277711

  • 7277711 - RADIATOR

3 7007246

  • 7007246 - EXCHANGER RADIATOR

4 7312830

  • 7312830 - RADIATOR

5 7277800

  • 7277800 - COOLER
  • OIL

6 7007248

  • 7007248 - FRAME

7 7007249

  • 7007249 - SHROUD

8 7018649

  • 7018649 - SHROUD

9 7007250

  • 7007250 - GUARD FAN

10 7277801

  • 7277801 - GUARD
  • FAN

11 7003965

  • 7003965 - FITTING COCK DRAIN

12 7277721

  • 7277721 - DRAIN

13 7003803

  • 7003803 - HOSE DRAIN

14 7005131

  • 7005131 - BOLT M8X1.25X15

15 7006851

  • 7006851 - BOLT M10X1.25X25

16 7005118

  • 7005118 - BOLT M10X1.25X30

17 7005051

  • 7005051 - CAP
