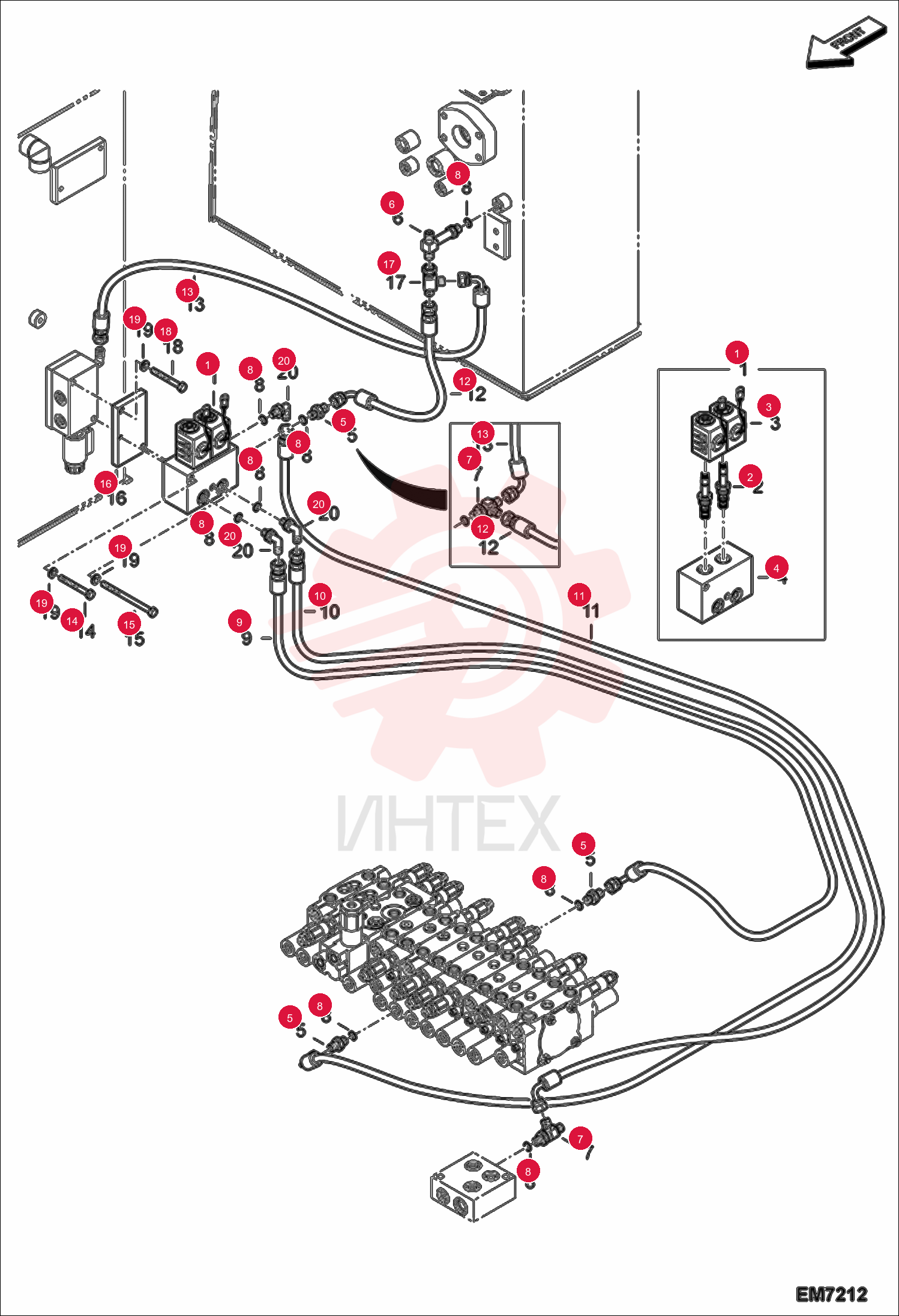

VALVE SOLENOID 7004982

VALVE SOLENOID 7004982

VALVE SOLENOID 7004982

1 7004982

  • 7004982 - VALVE SOLENOID
  • W/Ref. 2-4

2 7006824

  • 7006824 - SPOOL SOLENOID

3 7003849

  • 7003849 - COIL

4 7004683

  • 7004683 - ADAPTER

5 7004683

  • 7004683 - ADAPTER

6 7004752

  • 7004752 - TEE

7 7004738

  • 7004738 - TEE

8 7004738

  • 7004738 - TEE

9 7283267

  • 7283267 - O-RING
  • Was 7007906

10 7005337

  • 7005337 - HOSE PF1/4-1880L

11 7005345

  • 7005345 - HOSE PF1/4-2500L

12 7005318

  • 7005318 - HOSE
  • HYD

13 7005467

  • 7005467 - HOSE PF1/4-380L

14 7005349

  • 7005349 - HOSE 380L

15 7005336

  • 7005336 - HOSE 400L

16 7005344

  • 7005344 - HOSE

17 7007663

  • 7007663 - BOLT

18 7008296

  • 7008296 - BOLT
  • M8X1.25X120

19 7008279

  • 7008279 - PLATE

20 7003960

  • 7003960 - TEE UNION

21 7007662

  • 7007662 - BOLT

22 7276756

  • 7276756 - WASHER
  • Was 7007834

23 7004713

  • 7004713 - ELBOW
