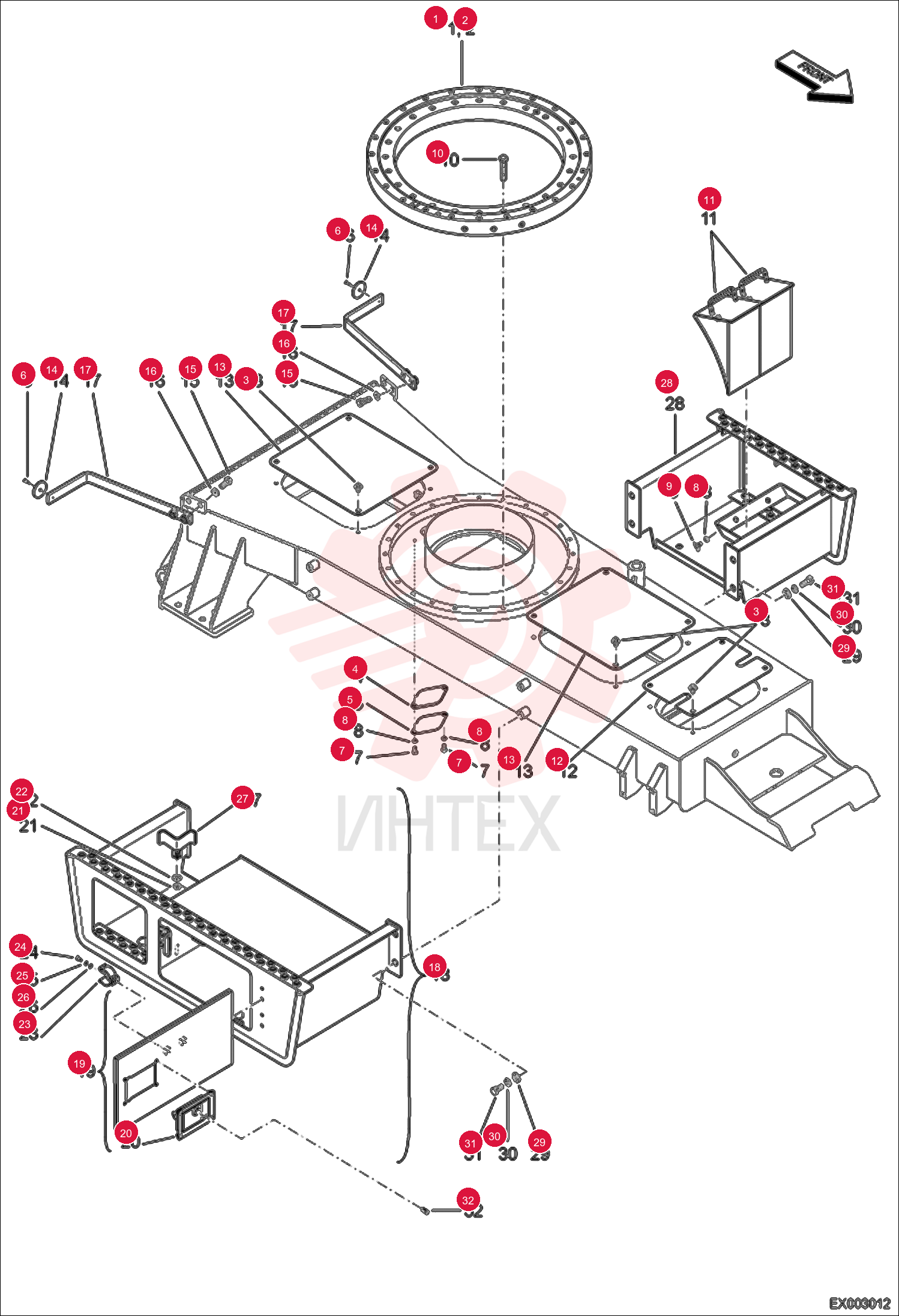

SLEW RING 7024759

SLEW RING 7024759

SLEW RING 7024759

1 7024759

  • 7024759 - SLEW RING
  • W/Ref. 2

2 7024778

  • 7024778 - SEAL

3 7003946

  • 7003946 - SEAL

4 7005121

  • 7005121 - BOLT SET

5 7004643

  • 7004643 - SEAL

6 7004926

  • 7004926 - COVER GREASE

7 7007782

  • 7007782 - BOLT

8 7007626

  • 7007626 - BOLT

9 7007835

  • 7007835 - WASHER SPRING

10 7007776

  • 7007776 - BOLT WING

11 7007705

  • 7007705 - BOLT

12 7005699

  • 7005699 - STABILIZER WHEEL

13 7005697

  • 7005697 - COVER

14 7005696

  • 7005696 - COVER

15 7003966

  • 7003966 - DEFLECTOR REFLECTOR

16 7007648

  • 7007648 - BOLT

17 7030045

  • 7030045 - WASHER
  • SPRING

18 7005743

  • 7005743 - PLATE

19 7281064

  • 7281064 - STEP

20 7005728

  • 7005728 - STEP RH
  • W/Ref. 19-27

21 7008182

  • 7008182 - DOOR
  • TOOL BOX
  • W/Ref. 20

22 7006267

  • 7006267 - CATCH DOOR

23 7007798

  • 7007798 - NUT M10X1.5

24 7004467

  • 7004467 - WASHER PLAIN

25 7005744

  • 7005744 - CLAMP

26 7007615

  • 7007615 - BOLT

27 7276756

  • 7276756 - WASHER
  • Was 7007834

28 7007815

  • 7007815 - WASHER PLAIN

29 7005628

  • 7005628 - BRACKET

30 7005729

  • 7005729 - STEP LH

31 7004468

  • 7004468 - WASHER

32 7030045

  • 7030045 - WASHER
  • SPRING

33 7007647

  • 7007647 - BOLT M16X2.0X35

34 7005642

  • 7005642 - CYLINDER KEY
