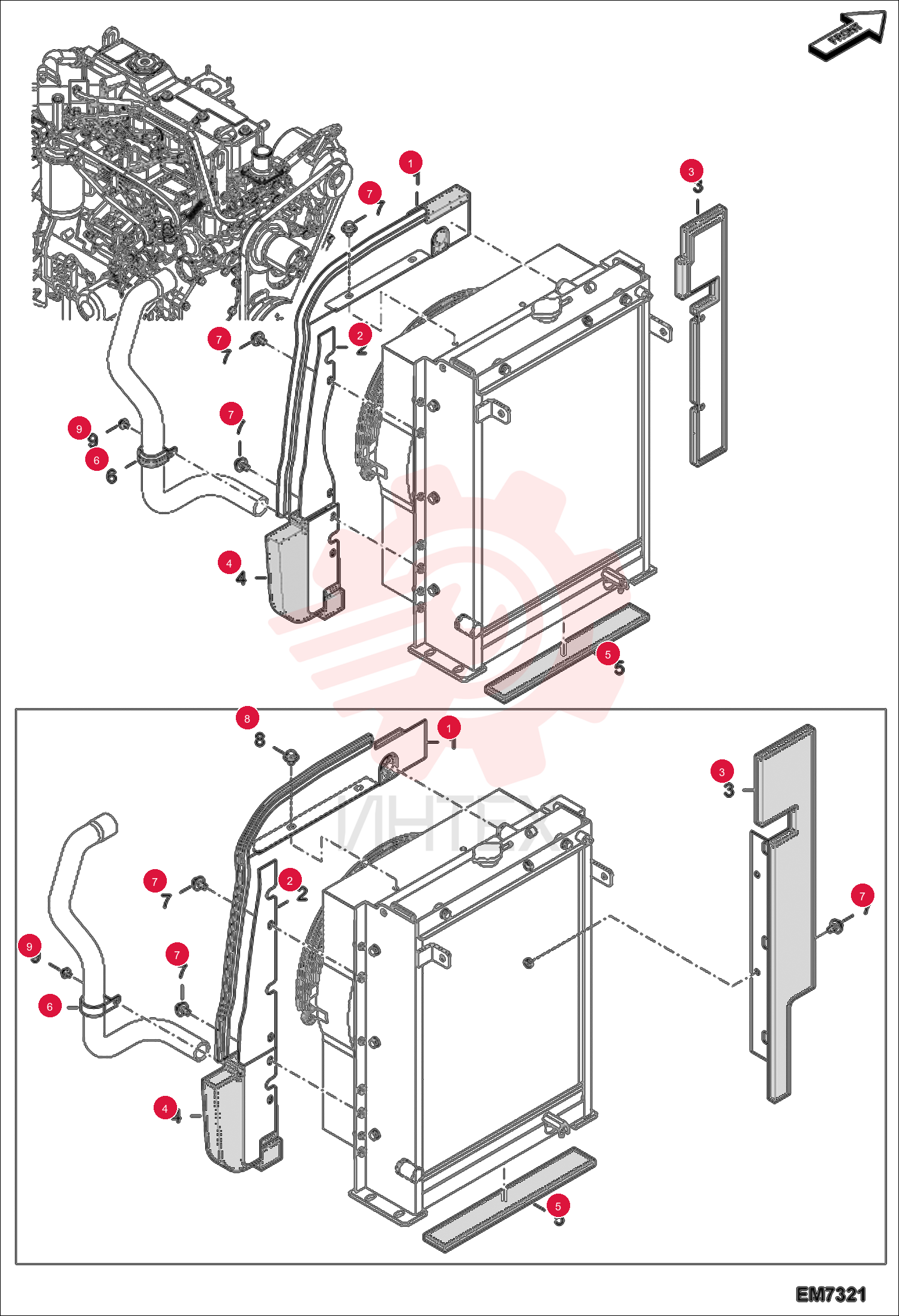

COVER BAFFLE 7005994

COVER BAFFLE 7005994

COVER BAFFLE 7005994

1 7005994

  • 7005994 - COVER BAFFLE

2 7018639

  • 7018639 - COVER
  • BAFFLE

3 7005998

  • 7005998 - COVER BAFFLE

4 7018640

  • 7018640 - COVER
  • BAFFLE

5 7005995

  • 7005995 - COVER BAFFLE

6 7018641

  • 7018641 - COVER
  • BAFFLE

7 7005996

  • 7005996 - COVER BAFFLE

8 7005944

  • 7005944 - FOAM

9 7018642

  • 7018642 - FOAM

10 7003899

  • 7003899 - CLIP

11 7004589

  • 7004589 - CLIP

12 7012244

  • 7012244 - BOLT
  • FLANGE

13 7005121

  • 7005121 - BOLT SET

14 7005119

  • 7005119 - BOLT SET

15 7005629

  • 7005629 - BOLT
