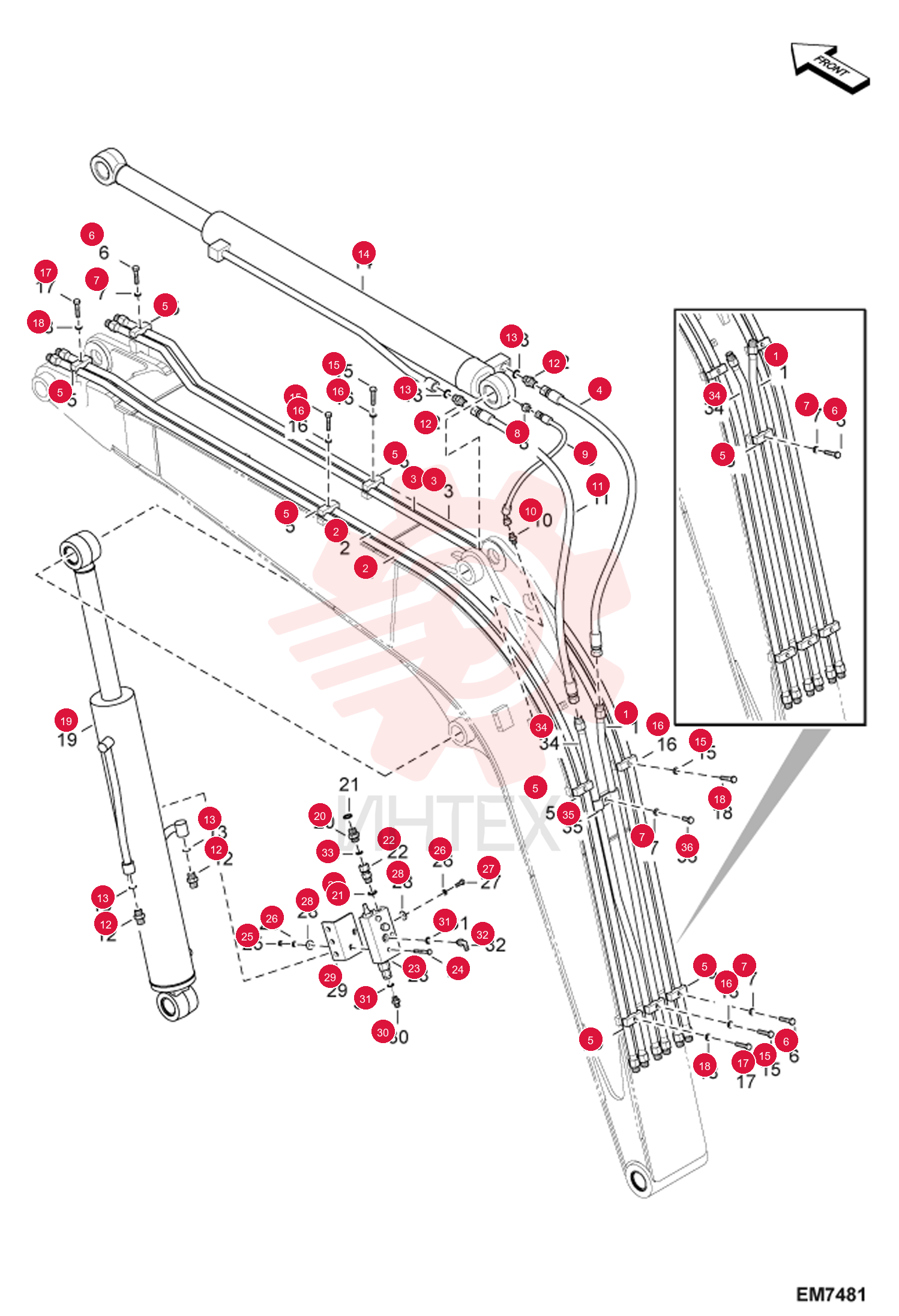

TUBELINE 7023681

TUBELINE 7023681

TUBELINE 7023681

1 7023681

  • 7023681 - TUBELINE

2 7005898

  • 7005898 - TUBELINE

3 7277410

  • 7277410 - TUBELINE
  • HYD

4 7008053

  • 7008053 - TUBELINE

5 7277411

  • 7277411 - TUBELINE
  • HYD

6 7277413

  • 7277413 - HOSE
  • HYD

7 7005168

  • 7005168 - HOSE

8 7277412

  • 7277412 - HOSE
  • HYD

9 7013257

  • 7013257 - CLAMP
  • PIPE

10 7013257

  • 7013257 - CLAMP
  • PIPE
  • Was 7005911

11 7007672

  • 7007672 - BOLT

12 7007672

  • 7007672 - BOLT

13 7007835

  • 7007835 - WASHER SPRING

14 7004669

  • 7004669 - ADAPTER

15 7005171

  • 7005171 - HOSE

16 7021827

  • 7021827 - HOSE
  • HYD

17 7004667

  • 7004667 - ADAPTER

18 7005164

  • 7005164 - HOSE

19 7277414

  • 7277414 - HOSE
  • HYD

20 7277415

  • 7277415 - HOSE
  • HYD

21 7004699

  • 7004699 - ADAPTER

22 7284557

  • 7284557 - O-RING
  • Was 7007911

23 7310476

  • 7310476 - CYLINDER ARM

24 7007672

  • 7007672 - BOLT

25 7007835

  • 7007835 - WASHER SPRING

26 7007672

  • 7007672 - BOLT

27 7007835

  • 7007835 - WASHER SPRING

28 7005867

  • 7005867 - CYLINDER BOOM LOCK VALVE
  • Ref. 2-25 - Was 7019007

29 7277072

  • 7277072 - CYLINDER
  • BOOM

30 7281407

  • 7281407 - CYLINDER
  • BOOM

31 7281299

  • 7281299 - ADAPTER
  • Was 7004773

32 7284557

  • 7284557 - O-RING
  • Was 7007911

33 7005551

  • 7005551 - ADAPTER

34 7004987

  • 7004987 - VALVE LOCK

35 7007663

  • 7007663 - BOLT

36 7007796

  • 7007796 - NUT

37 7276756

  • 7276756 - WASHER
  • Was 7007834

38 7007620

  • 7007620 - BOLT

39 7004470

  • 7004470 - WASHER PLAIN

40 7003969

  • 7003969 - BRACKET

41 7303229

  • 7303229 - BRACKET

42 7004683

  • 7004683 - ADAPTER

43 7283267

  • 7283267 - O-RING
  • Was 7007906

44 7004713

  • 7004713 - ELBOW

45 7007959

  • 7007959 - O-RING

46 7023682

  • 7023682 - TUBELINE

47 7023683

  • 7023683 - CLAMP

48 7007627

  • 7007627 - BOLT M10X1.5X22
