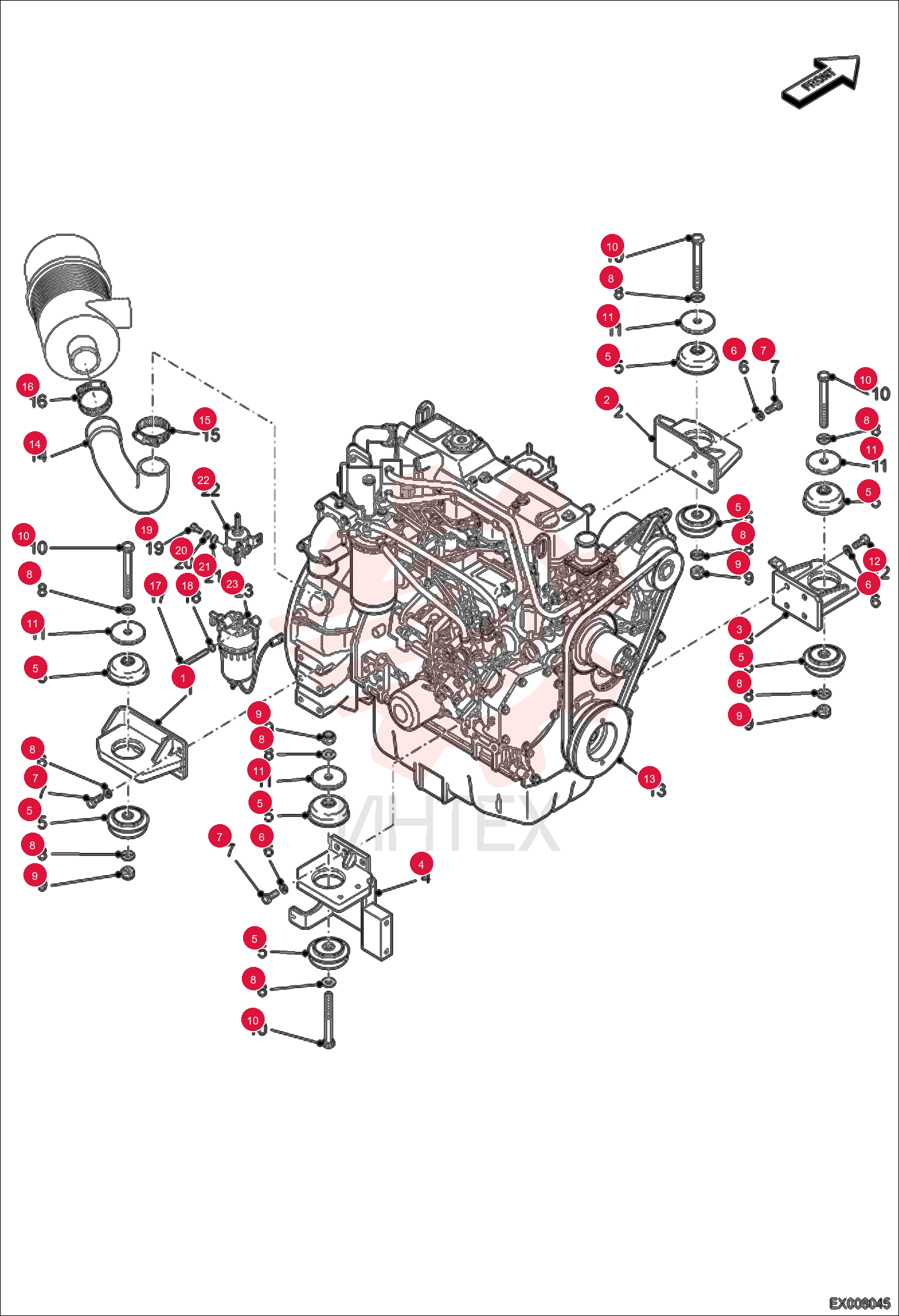

BRACKET ENGINE MOUNT 7005820

BRACKET ENGINE MOUNT 7005820

BRACKET ENGINE MOUNT 7005820

1 7005820

  • 7005820 - BRACKET ENGINE MOUNT

2 7005821

  • 7005821 - BRACKET ENGINE MOUNT

3 7005822

  • 7005822 - BRACKET ENGINE MOUNT

4 7005802

  • 7005802 - BRACKET ENGINE MOUNT

5 7006458

  • 7006458 - MOUNT ENGINE RUBBER

6 7007835

  • 7007835 - WASHER SPRING

7 7007630

  • 7007630 - BOLT

8 7007821

  • 7007821 - WASHER

9 7005141

  • 7005141 - NUT LOCK

10 7007718

  • 7007718 - BOLT

11 7006463

  • 7006463 - WASHER

12 7007631

  • 7007631 - BOLT M10X1.5X35

13 7005790

  • 7005790 - ENGINE ASSEMBLY

14 7006697

  • 7006697 - HOSE AIR

15 7007979

  • 7007979 - CLAMP HOSE

16 7007665

  • 7007665 - BOLT

17 7276756

  • 7276756 - WASHER
  • Was 7007834

18 7007604

  • 7007604 - BOLT

19 7007833

  • 7007833 - WASHER
  • SPRING

20 7007814

  • 7007814 - WASHER

21 7006899

  • 7006899 - PUMP FUEL FEED

22 7023335

  • 7023335 - SEPARATOR
  • Was 7007241
