Bobcat
/
E55W
/

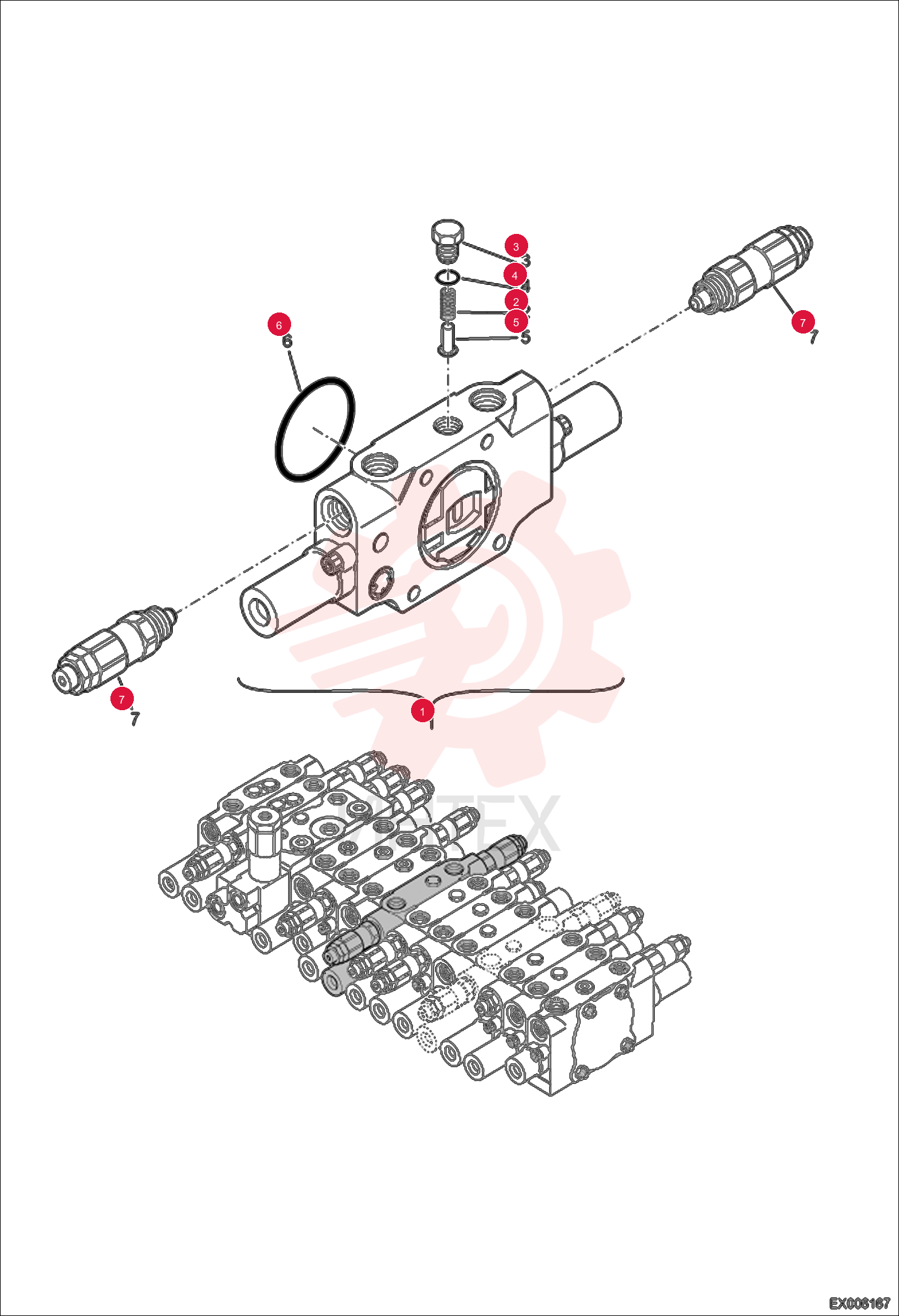

BLOCK ASSY-ROTARY 7007055

BLOCK ASSY-ROTARY 7007055

BLOCK ASSY-ROTARY 7007055

1 7007055

  • 7007055 - BLOCK ASSY-ROTARY
  • rotary - W/Ref. 2-6

2 7006936

  • 7006936 - SPRING

3 7006942

  • 7006942 - PLUG

4 7006934

  • 7006934 - ORING

5 7006935

  • 7006935 - ORIFICE POPPET

6 7007937

  • 7007937 - O-RING

7 7006926

  • 7006926 - VALVE RELIEF ASSY
