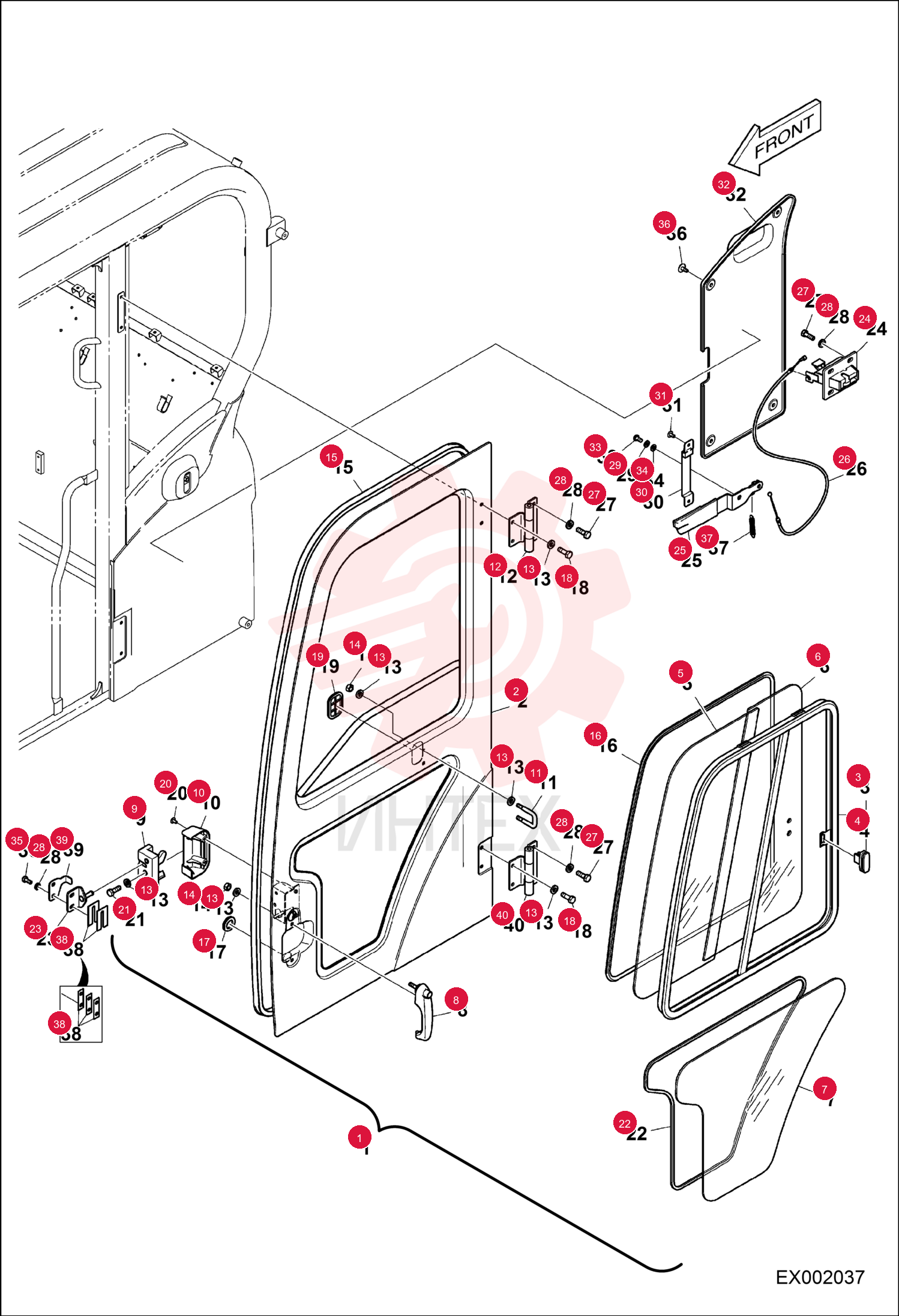

DOOR ASSEMBLY 7031252

DOOR ASSEMBLY 7031252

DOOR ASSEMBLY 7031252

1 7031252

  • 7031252 - DOOR ASSEMBLY
  • Ref. 2-22 & 40

2 7004584

  • 7004584 - LOCK

3 7005756

  • 7005756 - GLASS SASH FRONT

4 7005757

  • 7005757 - GLASS SASH REAR

5 7008051

  • 7008051 - GLASS
  • DOOR LOWER

6 7028230

  • 7028230 - HANDLE DOOR
  • Was 7006460

7 7006802

  • 7006802 - KEY SWITCH STARTER

8 7006740

  • 7006740 - CATCH DOOR INNER

9 7028879

  • 7028879 - CATCH
  • LATCH

10 7005795

  • 7005795 - COVER

11 7005816

  • 7005816 - HOOK CATCH DOOR

12 7024764

  • 7024764 - HINGE

13 7004515

  • 7004515 - WASHER

14 7007796

  • 7007796 - NUT

15 7005813

  • 7005813 - SEAL
  • EXTRUSION

16 7005818

  • 7005818 - EDGE

17 7004617

  • 7004617 - BUSHING
  • RUBBER

18 7004533

  • 7004533 - BOLT

19 7005830

  • 7005830 - COVER

20 7004548

  • 7004548 - BOLT

21 7004551

  • 7004551 - BOLT

22 7005850

  • 7005850 - DAMPER

23 7276609

  • 7276609 - STRIKER

24 7282134

  • 7282134 - LOCK
  • DOOR

25 7005807

  • 7005807 - LEVER BACK LOCK

26 7004592

  • 7004592 - CABLE BACK LOCK

27 7004533

  • 7004533 - BOLT

28 7004515

  • 7004515 - WASHER

29 7007833

  • 7007833 - WASHER
  • SPRING

30 7005840

  • 7005840 - BRACKET

31 7004548

  • 7004548 - BOLT

32 7005846

  • 7005846 - PAD

33 7007785

  • 7007785 - SCREW M6X1.0X12

34 7007814

  • 7007814 - WASHER

35 7004546

  • 7004546 - BOLT

36 7005648

  • 7005648 - RIVET

37 7004595

  • 7004595 - SPRING

38 7029283

  • 7029283 - PLATE

39 7006290

  • 7006290 - PLATE

40 7024765

  • 7024765 - HINGE
