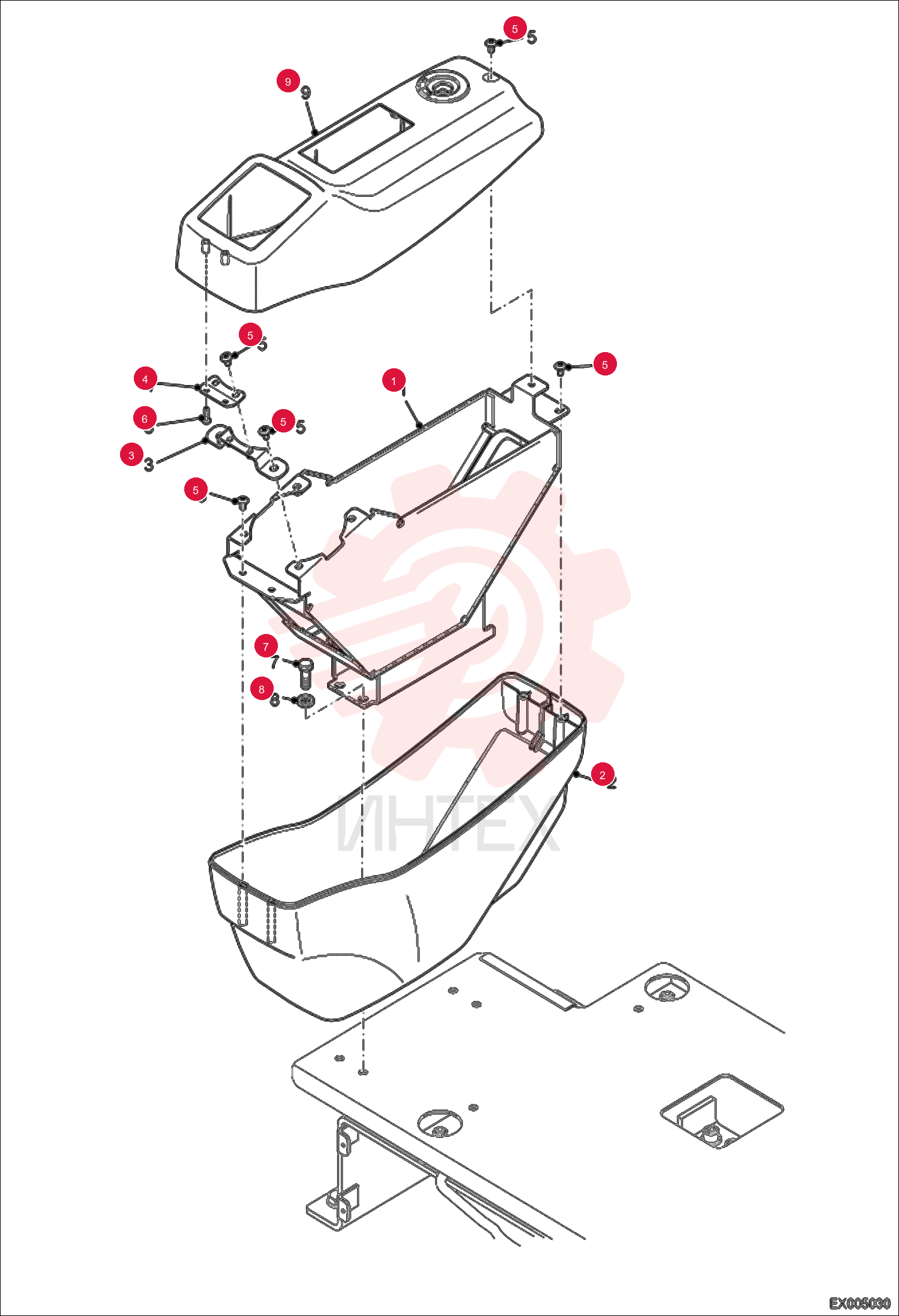

BRACKET, STAND RH 7019010

BRACKET, STAND RH 7019010

BRACKET, STAND RH 7019010

1 7019010

  • 7019010 - BRACKET
  • STAND RH
  • Was 7006217

2 7005773

  • 7005773 - HOUSING LOWER

3 7005894

  • 7005894 - PLATE

4 7005893

  • 7005893 - PLATE

5 7004548

  • 7004548 - BOLT

6 7007789

  • 7007789 - BOLT

7 7004546

  • 7004546 - BOLT

8 7004515

  • 7004515 - WASHER

9 7006574

  • 7006574 - HOUSING UPPER RH
