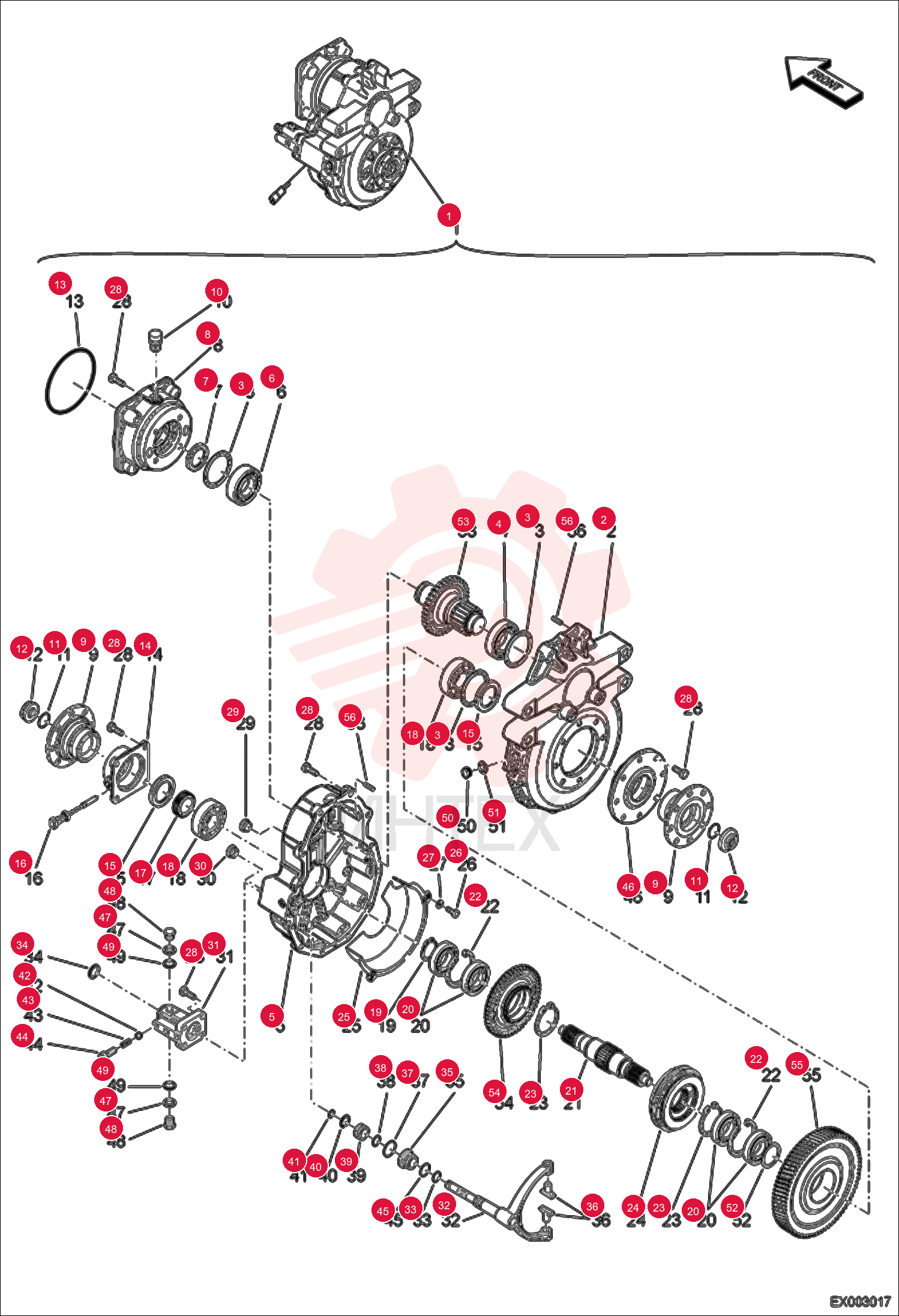

TRANSMISSION 7005736

TRANSMISSION 7005736

TRANSMISSION 7005736

1 7005736

  • 7005736 - TRANSMISSION
  • W/Ref. 2-56

2 7007077

  • 7007077 - HOUSING

3 7004024

  • 7004024 - SHIM

4 7004025

  • 7004025 - SHIM

5 7004026

  • 7004026 - SHIM

6 7004034

  • 7004034 - SHIM

7 7004027

  • 7004027 - SHIM

8 7007068

  • 7007068 - BEARING BALL

9 7007078

  • 7007078 - COVER

10 7003985

  • 7003985 - BEARING BALL

11 7004257

  • 7004257 - SEAL

12 7004434

  • 7004434 - COVER

13 7004305

  • 7004305 - FLANGE

14 7004402

  • 7004402 - FILTER BREATHER AIR

15 7004244

  • 7004244 - O-RING

16 7004145

  • 7004145 - NUT

17 7004253

  • 7004253 - O-RING

18 7007084

  • 7007084 - COVER

19 7004229

  • 7004229 - SEAL

20 7007088

  • 7007088 - SENSOR ELECTRONIC

21 7007085

  • 7007085 - GEAR

22 7003992

  • 7003992 - BEARING BALL

23 7004185

  • 7004185 - RING SNAP

24 7007067

  • 7007067 - BEARING BALL

25 7007079

  • 7007079 - SHAFT OUTPUT

26 7007066

  • 7007066 - RING SNAP

27 7007065

  • 7007065 - RING SNAP

28 7007087

  • 7007087 - TOOL SYNCHRONIZER

29 7007076

  • 7007076 - PLATE SHEET

30 7004123

  • 7004123 - BOLT HEX.

31 7007069

  • 7007069 - WASHER LOCK

32 7004124

  • 7004124 - BOLT HEX.

33 7004281

  • 7004281 - PLUG

34 7004301

  • 7004301 - PLUG MAGNET

35 7007083

  • 7007083 - CYLINDER

36 7007089

  • 7007089 - SHAFT SELECTOR

37 7007059

  • 7007059 - ORING

38 7007063

  • 7007063 - SEAL

39 7007082

  • 7007082 - BUSHING REDUCTION

40 7007075

  • 7007075 - PIN SLIDING

41 7007058

  • 7007058 - ORING

42 7007061

  • 7007061 - ORING

43 7007081

  • 7007081 - PISTON

44 7007064

  • 7007064 - RING SNAP

45 7007060

  • 7007060 - ORING

46 7007072

  • 7007072 - BALL

47 7007090

  • 7007090 - SPRING

48 7007073

  • 7007073 - BOLT SOCKET

49 7007062

  • 7007062 - ORING

50 7004435

  • 7004435 - COVER

51 7007070

  • 7007070 - WASHER

52 7007074

  • 7007074 - PLUG

53 7007071

  • 7007071 - WASHER SEAL

54 7004115

  • 7004115 - BOLT

55 7004048

  • 7004048 - WASHER

56 7004007

  • 7004007 - SHIM

57 7004006

  • 7004006 - SHIM

58 7004005

  • 7004005 - SHIM

59 7004004

  • 7004004 - SHIM

60 7004366

  • 7004366 - SHAFT INPUT

61 7007080

  • 7007080 - GEAR

62 7007086

  • 7007086 - GEAR

63 7004176

  • 7004176 - PIN
