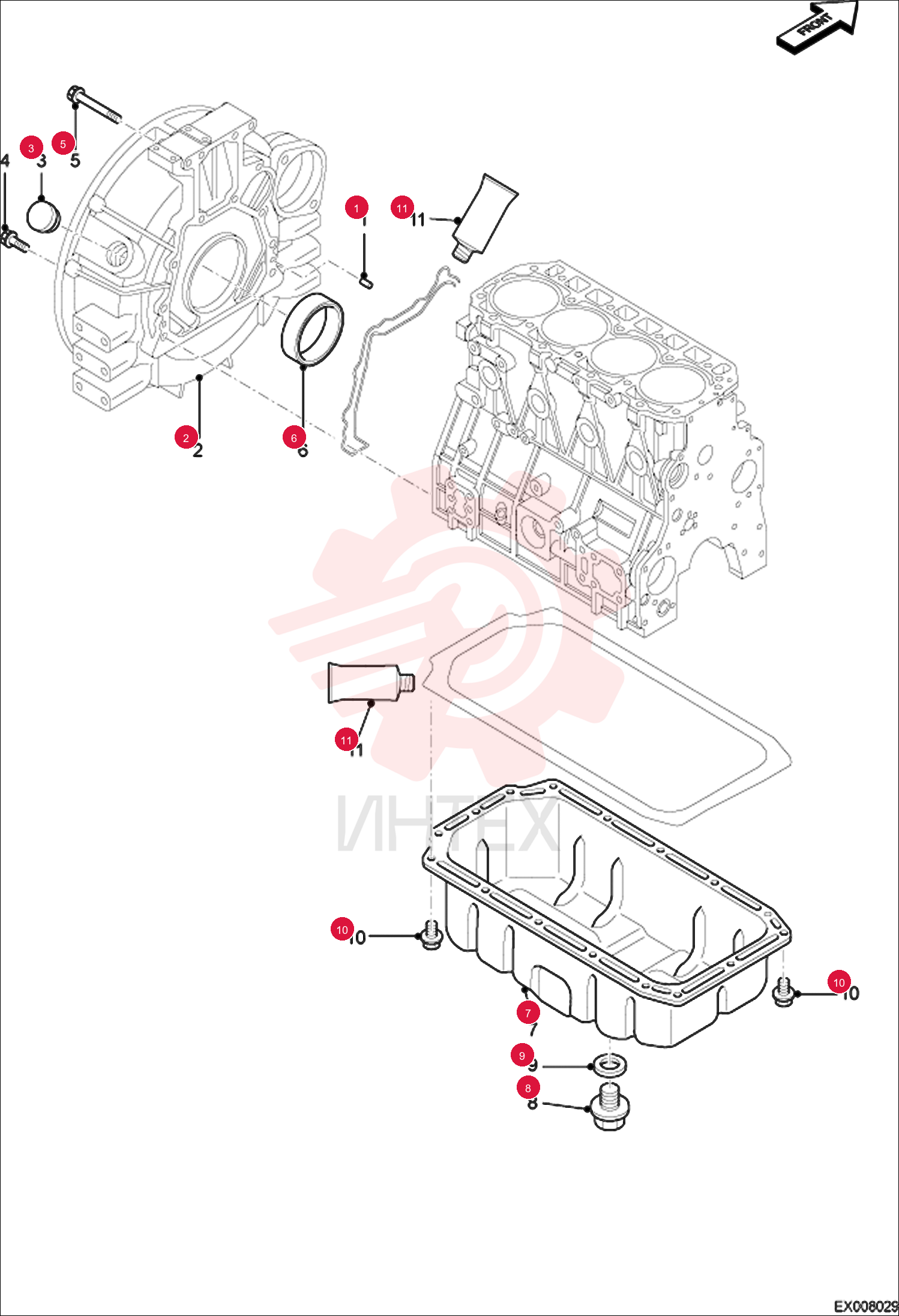

PIN PARALLEL 7007851 (2)

PIN PARALLEL 7007851 (2)

PIN PARALLEL 7007851 (2)

1 7007851

  • 7007851 - PIN PARALLEL

2 7004425

  • 7004425 - HOUSING FLYWHEEL

3 7004421

  • 7004421 - CAP FLYWHEEL COVER

4 7004092

  • 7004092 - BOLT PLATED M10X35

5 7004091

  • 7004091 - BOLT PLATED M10X70

6 7005052

  • 7005052 - SEAL OIL

7 7006838

  • 7006838 - PAN OIL ASSY
  • W/Ref. 8-9

8 7004299

  • 7004299 - PLUG DRAIN

9 7004231

  • 7004231 - SEAL WASHER

10 7004093

  • 7004093 - BOLT M8X12

11 7006924

  • 7006924 - GASKET LIQUID
