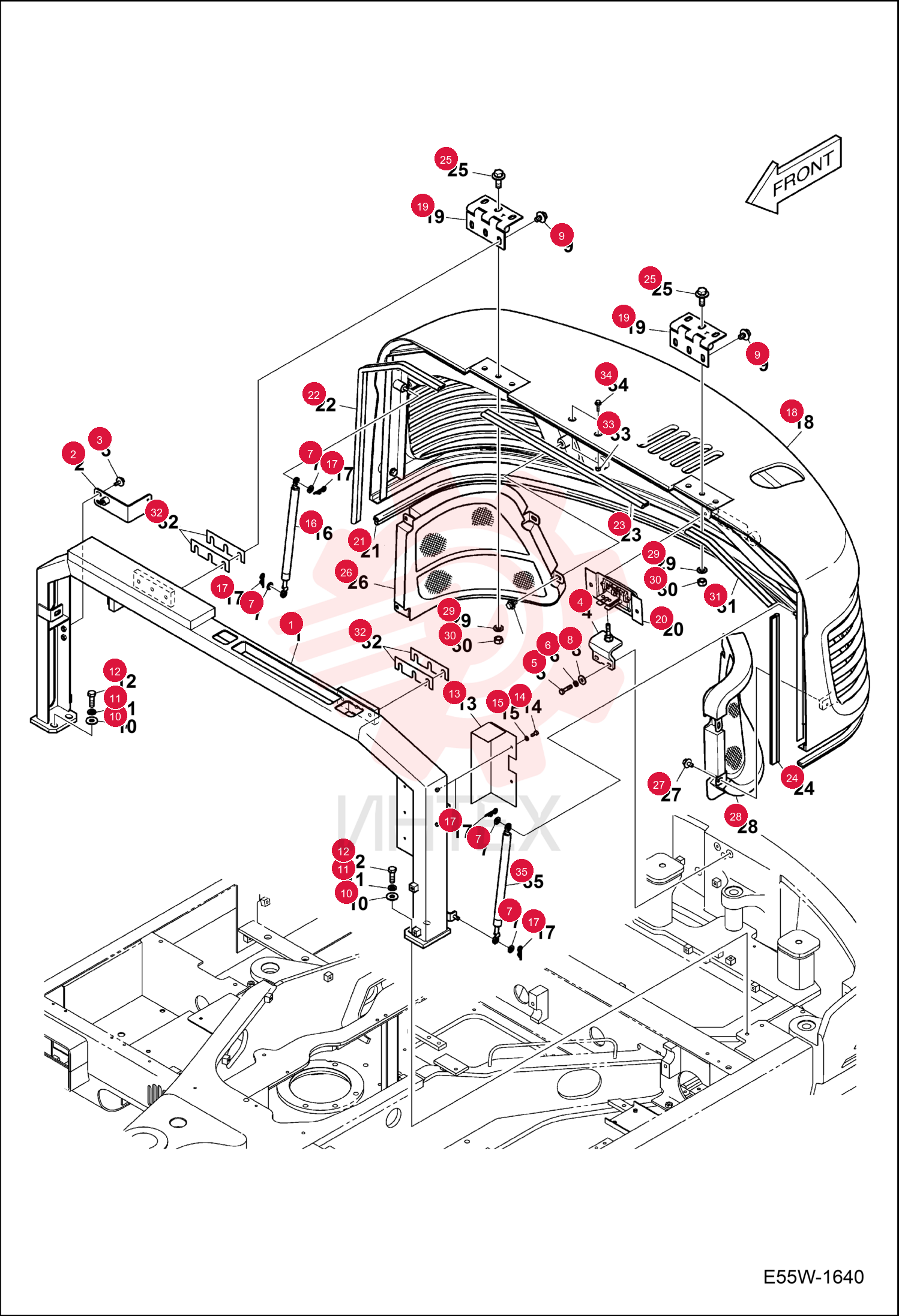

SUPPORT ASSEMBLY 7015597

SUPPORT ASSEMBLY 7015597

SUPPORT ASSEMBLY 7015597

1 7015597

  • 7015597 - SUPPORT ASSEMBLY
  • W/Ref. 2-3

2 7005877

  • 7005877 - PLATE

3 7005128

  • 7005128 - BOLT SET

4 7012229

  • 7012229 - BOLT FLANGE

5 7005950

  • 7005950 - STRIKER

6 7007622

  • 7007622 - BOLT

7 7276756

  • 7276756 - WASHER
  • Was 7007834

8 7007816

  • 7007816 - WASHER

9 7004470

  • 7004470 - WASHER PLAIN

10 7005123

  • 7005123 - BOLT SET

11 7004477

  • 7004477 - WASHER PLAIN

12 7007836

  • 7007836 - WASHER SPRING M12

13 7007642

  • 7007642 - BOLT

14 7006498

  • 7006498 - COVER

15 7007606

  • 7007606 - BOLT

16 7007814

  • 7007814 - WASHER

17 7006441

  • 7006441 - CYLINDER GAS

18 7006441

  • 7006441 - CYLINDER GAS

19 7004569

  • 7004569 - PIN

20 7012262

  • 7012262 - BONNET ASSEMBLY
  • W/Ref. 19-31

21 7005858

  • 7005858 - HINGE

22 7012749

  • 7012749 - CATCH
  • Was 7005859

23 7006587

  • 7006587 - EDGE RUBBER

24 7006588

  • 7006588 - EDGE RUBBER

25 7006589

  • 7006589 - EDGE RUBBER

26 7006590

  • 7006590 - EDGE RUBBER

27 7005134

  • 7005134 - BOLT SET

28 7006729

  • 7006729 - BRACKET

29 7005129

  • 7005129 - BOLT SET

30 7006730

  • 7006730 - BRACKET

31 7007813

  • 7007813 - WASHER

32 7007799

  • 7007799 - NUT

33 7006663

  • 7006663 - PAD

34 7006654

  • 7006654 - SHIM

35 7012264

  • 7012264 - NUT LOCK

36 7012263

  • 7012263 - BOLT
  • SET

37 7015609

  • 7015609 - CYLINDER
  • GAS
