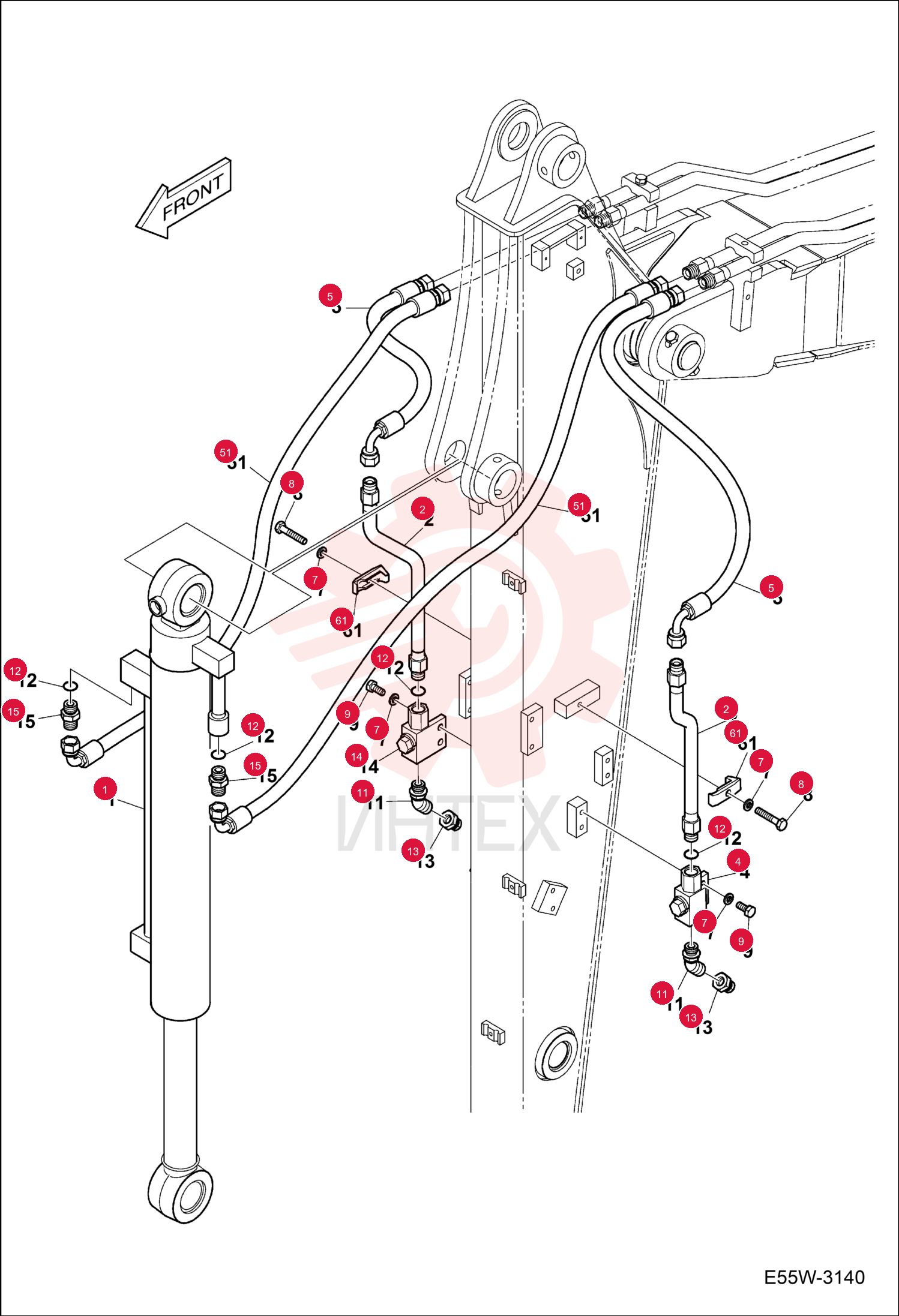

CYLINDER BUCKET 7005718 (1)

CYLINDER BUCKET 7005718 (1)

CYLINDER BUCKET 7005718 (1)

1 7005718

  • 7005718 - CYLINDER BUCKET

2 7005901

  • 7005901 - TUBELINE

3 7006244

  • 7006244 - VALVE STOP LH

4 7005455

  • 7005455 - HOSE

5 7007835

  • 7007835 - WASHER SPRING

6 7007673

  • 7007673 - BOLT

7 7007628

  • 7007628 - BOLT

8 7004757

  • 7004757 - ELBOW

9 7284557

  • 7284557 - O-RING
  • Was 7007911

10 7004766

  • 7004766 - PLUG

11 7006245

  • 7006245 - VALVE STOP RH

12 7004699

  • 7004699 - ADAPTER

13 7005455

  • 7005455 - HOSE

14 7006055

  • 7006055 - CLAMP TUBELINE
