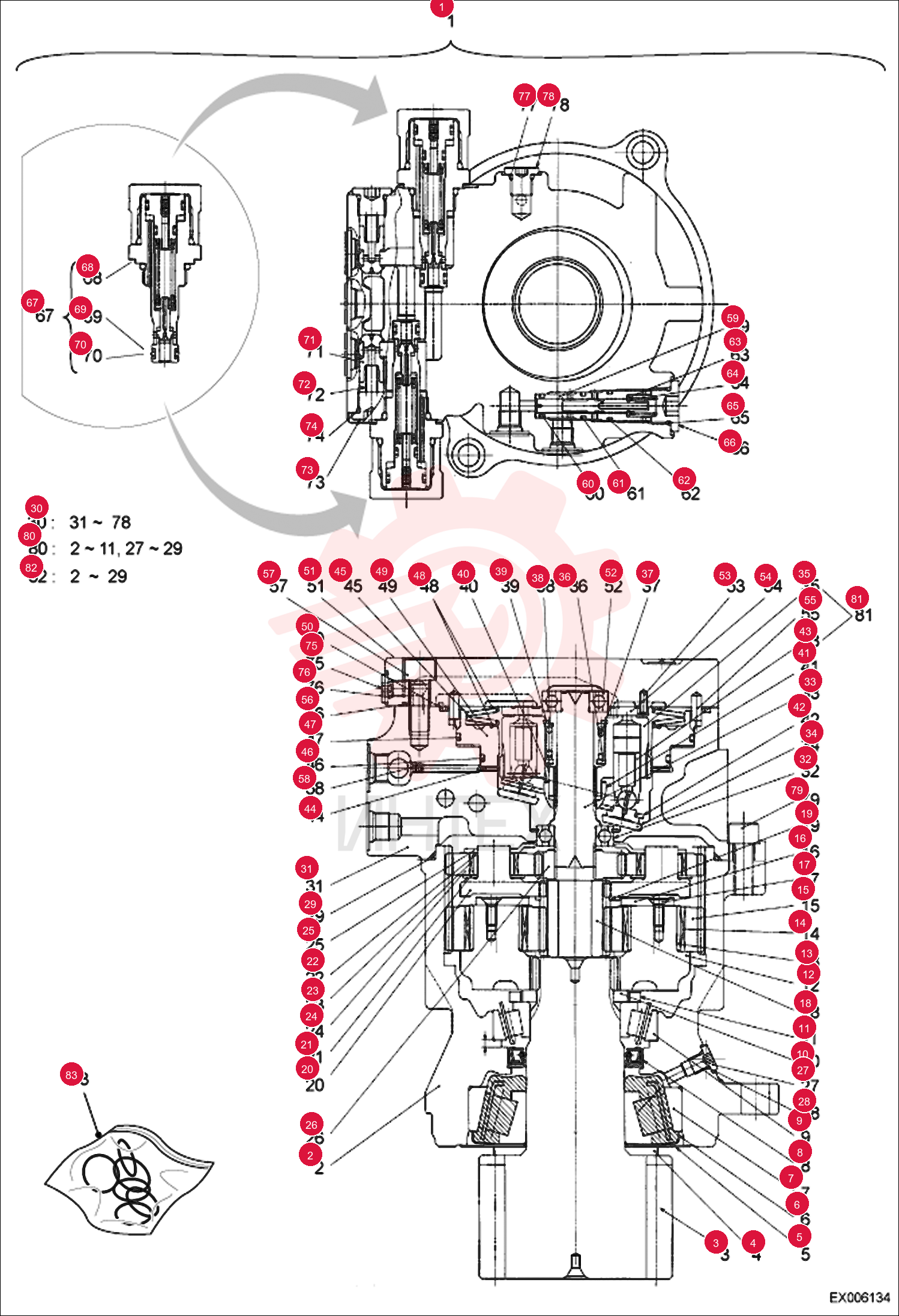

MOTOR, SWING 7023679

MOTOR, SWING 7023679

MOTOR, SWING 7023679

1 7023679

  • 7023679 - MOTOR
  • SWING
  • W/Ref. 2-82 - Was 7005792

2 7006968

  • 7006968 - SEAL OIL

3 7006981

  • 7006981 - HOLDER

4 7006973

  • 7006973 - RACE INNER

5 7006970

  • 7006970 - BEARING NEEDLE

6 7006972

  • 7006972 - GEAR PLANETARY

7 7006985

  • 7006985 - PLATE THRUST

8 7006853

  • 7006853 - BOLT

9 7006971

  • 7006971 - GEAR SUN

10 7007874

  • 7007874 - RING SNAP

11 7006980

  • 7006980 - HOLDER

12 7006984

  • 7006984 - WASHER THRUST

13 7006974

  • 7006974 - RACE INNER

14 7006969

  • 7006969 - BEARING NEEDLE

15 7006983

  • 7006983 - GEAR PLANETARY

16 7006986

  • 7006986 - KIT THRUST PLATE

17 7006982

  • 7006982 - GEAR DRIVE

18 7006857

  • 7006857 - PLUG

19 7007903

  • 7007903 - O-RING

20 7004645

  • 7004645 - O-RING

21 7006977

  • 7006977 - HOUSING

22 7006858

  • 7006858 - BEARING BALL

23 7006859

  • 7006859 - SHAFT

24 7006860

  • 7006860 - PLATE THRUST

25 7006861

  • 7006861 - COLLAR

26 7006862

  • 7006862 - SPRING

27 7006863

  • 7006863 - WASHER

28 7007882

  • 7007882 - RING SNAP

29 7006864

  • 7006864 - PIN

30 7006865

  • 7006865 - HOLDER RETAINER

31 7006866

  • 7006866 - PLATE RETAINER

32 7006867

  • 7006867 - DISC

33 7006868

  • 7006868 - PISTON BRAKE

34 7007950

  • 7007950 - O-RING

35 7007953

  • 7007953 - O-RING

36 7006976

  • 7006976 - SEAT SPRING

37 7006869

  • 7006869 - SPRING ASSY DISK

38 7006870

  • 7006870 - ORING

39 7006871

  • 7006871 - COVER

40 7006856

  • 7006856 - BEARING BALL

41 7006855

  • 7006855 - PIN

42 7006854

  • 7006854 - PLATE VALVE

43 7006872

  • 7006872 - PIN

44 7007914

  • 7007914 - O-RING

45 7007760

  • 7007760 - BOLT SOCKET

46 7006873

  • 7006873 - ORIFICE

47 7006978

  • 7006978 - VALVE ASSY

48 7007931

  • 7007931 - ORING

49 7007908

  • 7007908 - O-RING

50 7284551

  • 7284551 - O-RING
  • Was 7007909

51 7004017

  • 7004017 - WASHER

52 7006975

  • 7006975 - SPRING

53 7284557

  • 7284557 - O-RING
  • Was 7007911

54 7004290

  • 7004290 - PLUG

55 7006988

  • 7006988 - VALVE RELIEF

56 7007917

  • 7007917 - O-RING

57 7007908

  • 7007908 - O-RING

58 7007965

  • 7007965 - RING BACK-UP

59 7006874

  • 7006874 - VALVE CHECK

60 7006875

  • 7006875 - SPRING

61 7004291

  • 7004291 - PLUG

62 7284551

  • 7284551 - O-RING
  • Was 7007909

63 7006857

  • 7006857 - PLUG

64 7007903

  • 7007903 - O-RING

65 7006876

  • 7006876 - PLUG

66 7283267

  • 7283267 - O-RING
  • Was 7007906

67 7007760

  • 7007760 - BOLT SOCKET

68 7006987

  • 7006987 - HOUSING ASSY
  • W/Ref. 2-11 & 27-29

69 7006877

  • 7006877 - CYLINDER BLOCK KIT
  • Ref. 35 & 41

70 7006979

  • 7006979 - KIT SEAL SWING MOTOR
