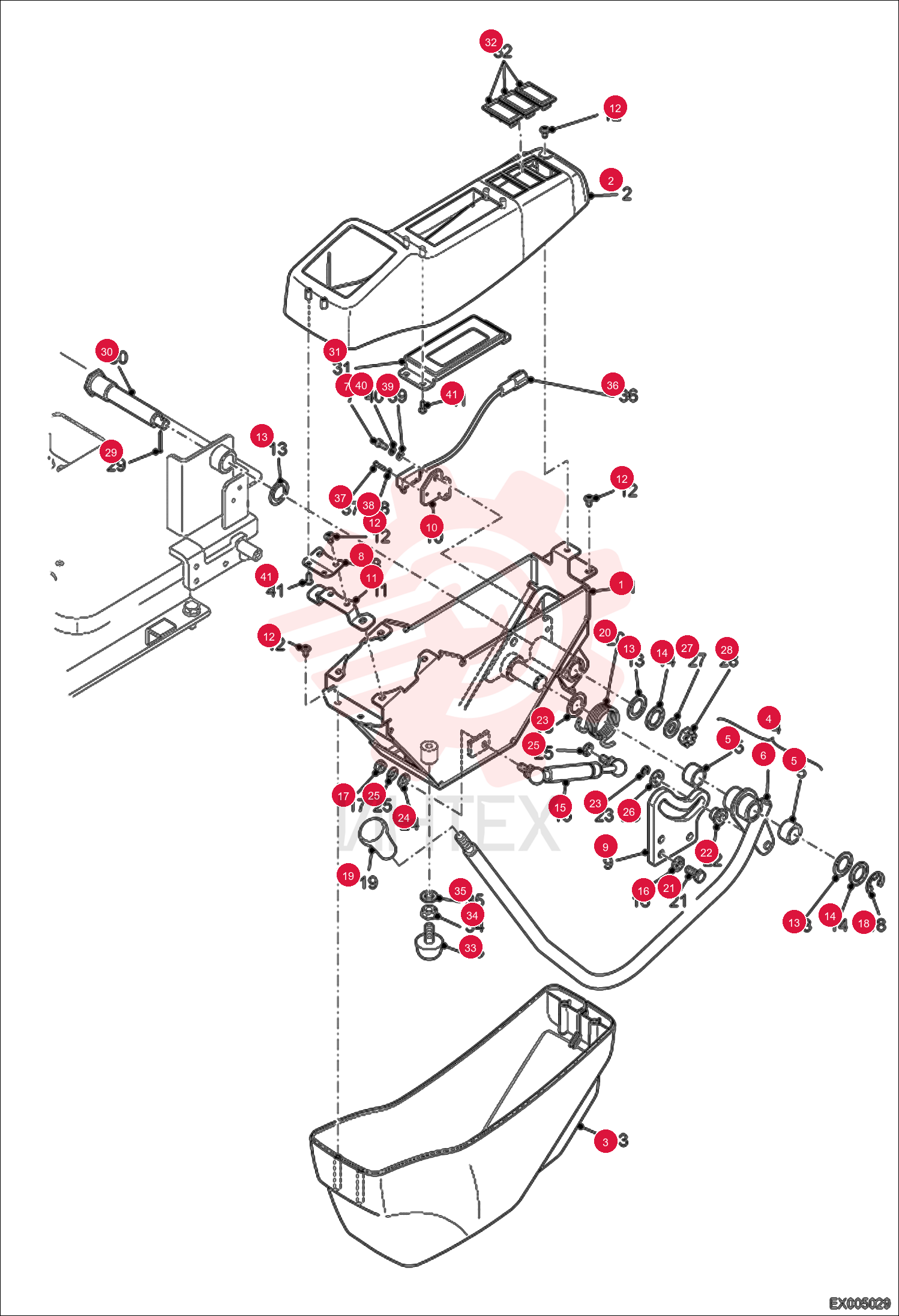

BRACKET, STAND RH 7018638

BRACKET, STAND RH 7018638

BRACKET, STAND RH 7018638

1 7018638

  • 7018638 - BRACKET
  • STAND RH
  • Was 7008189

2 7005772

  • 7005772 - HOUSING UPPER LH

3 7005773

  • 7005773 - HOUSING LOWER

4 7005915

  • 7005915 - LEVER SAFETY
  • W/Ref. 5-6

5 7004459

  • 7004459 - BUSHING

6 7008294

  • 7008294 - BOLT
  • M5X0.8X12

7 7005893

  • 7005893 - PLATE

8 7005914

  • 7005914 - PLATE GUIDE

9 7008186

  • 7008186 - PLATE

10 7005894

  • 7005894 - PLATE

11 7004548

  • 7004548 - BOLT

12 7005659

  • 7005659 - SHIM

13 7004523

  • 7004523 - WASHER

14 7005143

  • 7005143 - CYLINDER GAS

15 7004515

  • 7004515 - WASHER

16 7004562

  • 7004562 - NUT

17 7005662

  • 7005662 - RING

18 7005674

  • 7005674 - HANDLE GRIP

19 7006010

  • 7006010 - SPRING COIL

20 7004546

  • 7004546 - BOLT

21 7005661

  • 7005661 - ROLLER

22 7005663

  • 7005663 - RING

23 7004511

  • 7004511 - WASHER

24 7004521

  • 7004521 - WASHER
  • SPRING

25 7004512

  • 7004512 - WASHER

26 7007812

  • 7007812 - WASHER

27 7007807

  • 7007807 - NUT

28 7007853

  • 7007853 - PIN SNAP

29 7006116

  • 7006116 - PIN TILT STAND

30 7005947

  • 7005947 - COVER STAND RH

31 7004930

  • 7004930 - COVER

32 7003928

  • 7003928 - STOP SLIDE DOOR

33 7004563

  • 7004563 - NUT

34 7004512

  • 7004512 - WASHER

35 7008282

  • 7008282 - SWITCH
  • PILOT CUTOFF

36 7008298

  • 7008298 - SCREW
  • M3X16

37 7008300

  • 7008300 - WASHER
  • PLAIN

38 7007810

  • 7007810 - WASHER

39 7007832

  • 7007832 - WASHER SPRING

40 7007789

  • 7007789 - BOLT
