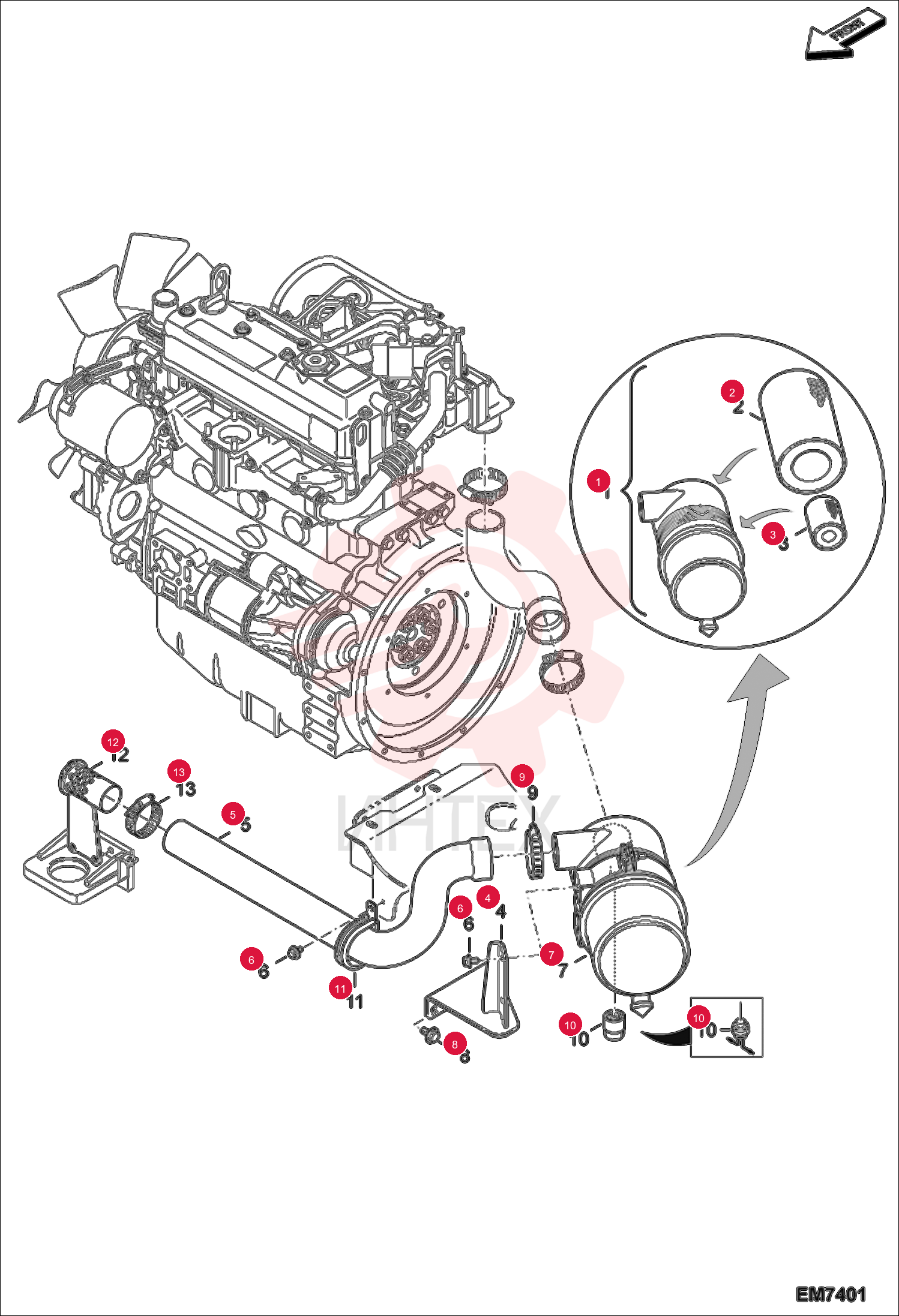

AIR CLEANER 7017792

AIR CLEANER 7017792

AIR CLEANER 7017792

1 7017792

  • 7017792 - AIR CLEANER
  • W/Ref. 2-3 - Was 7004450

2 6666333

  • 6666333 - FILTER
  • AIR OUTER
  • Was 7005000

3 6666334

  • 6666334 - FILTER
  • AIR INNER
  • Was 7005001

4 7006672

  • 7006672 - BRACKET

5 7006723

  • 7006723 - HOSE AIR

6 7005129

  • 7005129 - BOLT SET

7 7005869

  • 7005869 - CLAMP

8 7005125

  • 7005125 - BOLT SET

9 7007981

  • 7007981 - CLAMP HOSE

10 7005694

  • 7005694 - INDEX INDICATOR DUST

11 7015632

  • 7015632 - INDICATOR
  • DUST

12 7003900

  • 7003900 - CLIP

13 7006722

  • 7006722 - BRACKET

14 7007979

  • 7007979 - CLAMP HOSE
