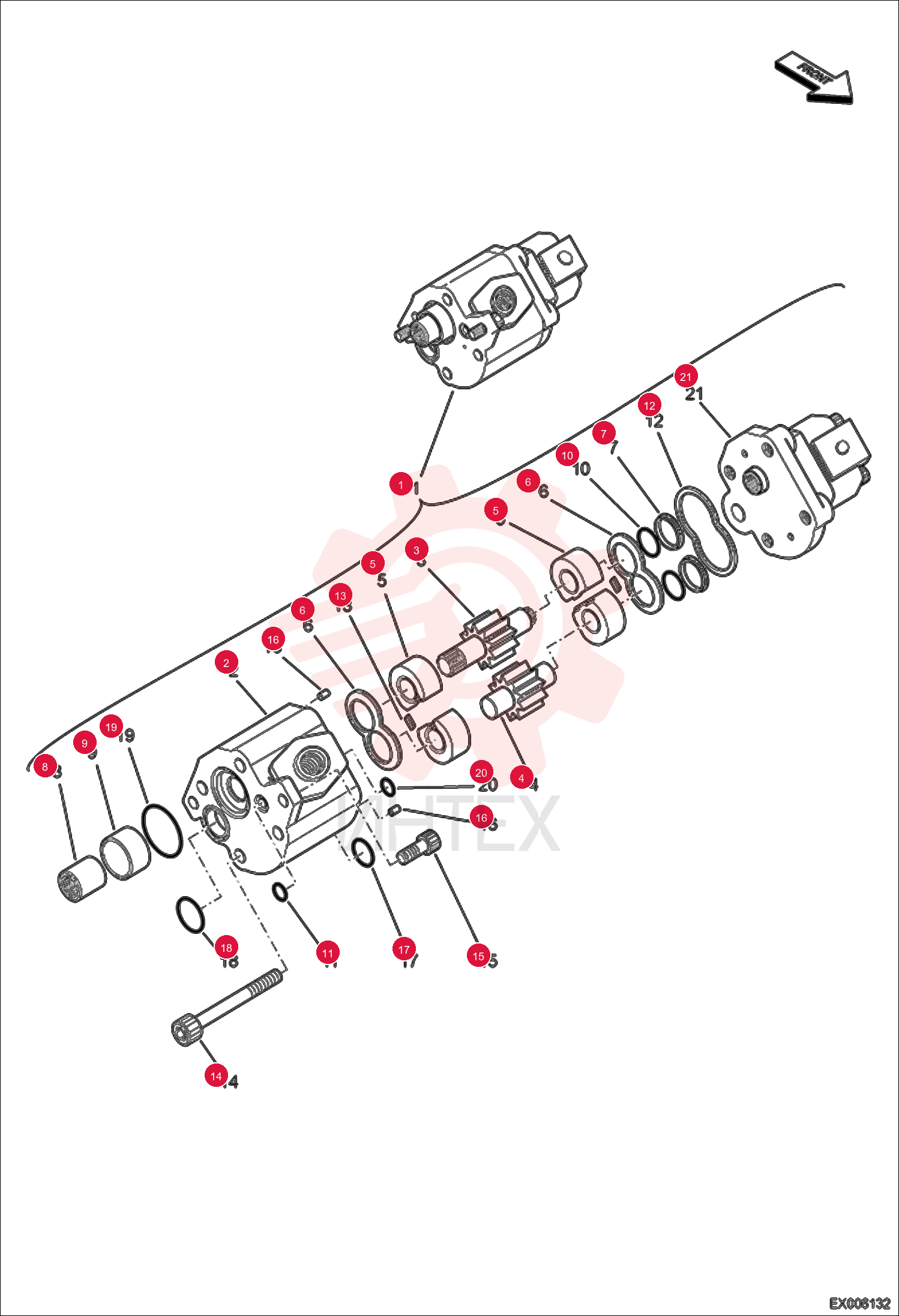

PUMP GEAR 7007288

PUMP GEAR 7007288

PUMP GEAR 7007288

1 7007288

  • 7007288 - PUMP GEAR
  • W/Ref. 2-21

2 7007281

  • 7007281 - HOUSING GEAR

3 7006955

  • 7006955 - GEAR DRIVING

4 7006954

  • 7006954 - GEAR IDLE

5 7006961

  • 7006961 - PLATE SIDE ASSY

6 7004391

  • 7004391 - PLATE

7 7004416

  • 7004416 - GUIDE

8 7004392

  • 7004392 - COUPLER

9 7004369

  • 7004369 - BUSHING

10 7004220

  • 7004220 - O-RING 2.5X6

11 7007905

  • 7007905 - O-RING

12 7004240

  • 7004240 - RING COUPLER

13 7004241

  • 7004241 - RING COUPLER

14 7007756

  • 7007756 - BOLT M10X90

15 7007746

  • 7007746 - BOLT HEX SOCKET M10X5L

16 7007849

  • 7007849 - PIN PARALLEL

17 7004647

  • 7004647 - O-RING 18.77X.78

18 7004648

  • 7004648 - O-RING

19 7004650

  • 7004650 - O-RING 37.77X.62

20 7004644

  • 7004644 - O-RING

21 7003806

  • 7003806 - PUMP GEAR
