Bobcat
/
E55W
/

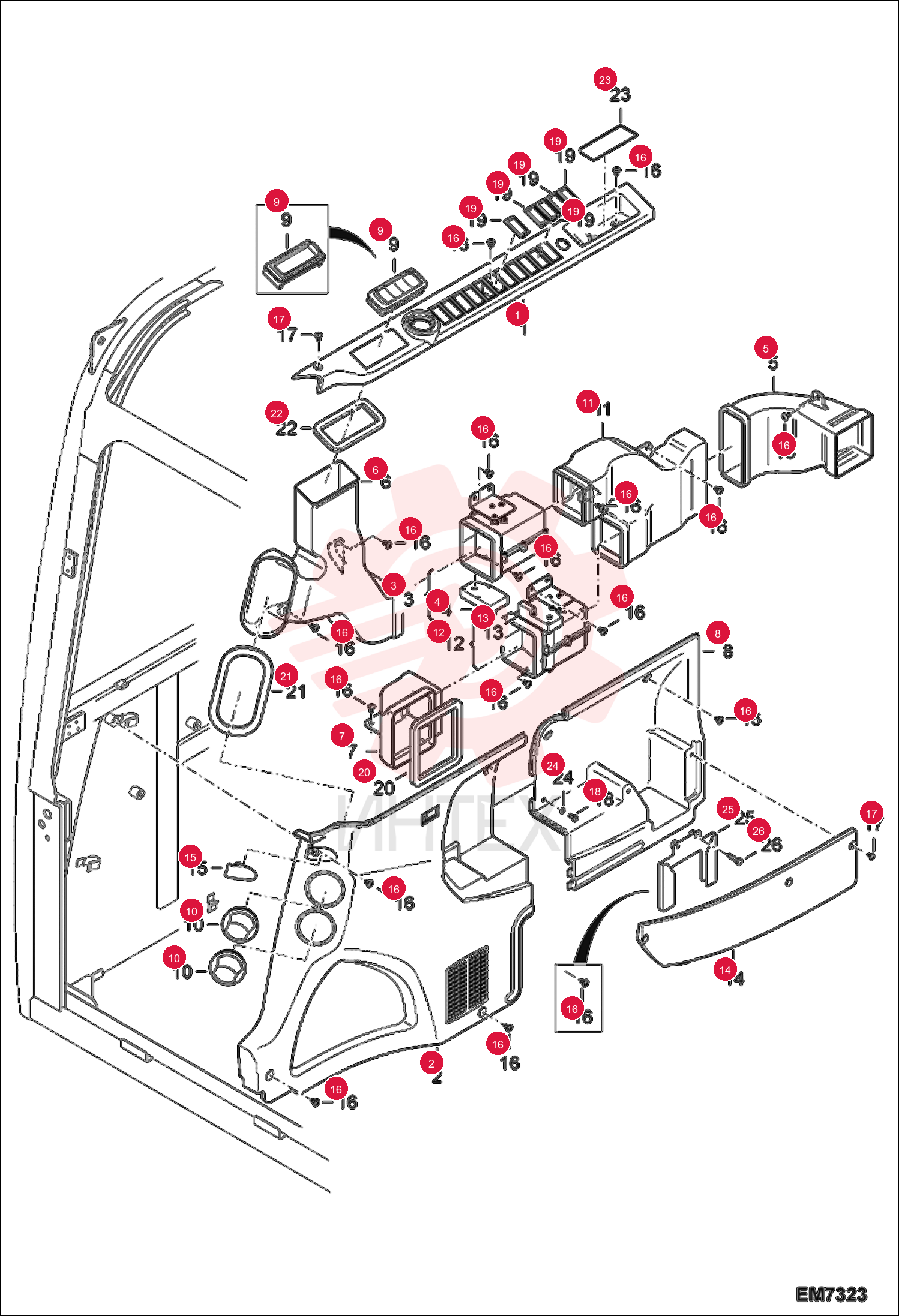

COVER, SWITCH 7015584

COVER, SWITCH 7015584

COVER, SWITCH 7015584

1 7015584

  • 7015584 - COVER
  • SWITCH

2 7005784

  • 7005784 - COVER

3 7015585

  • 7015585 - DUCT
  • CONTROL
  • W/Ref. 4

4 7006530

  • 7006530 - MOTOR MIX

5 7005781

  • 7005781 - DUCT
  • REAR

6 7005782

  • 7005782 - DUCT FACE

7 7005783

  • 7005783 - DUCT DEF

8 7006374

  • 7006374 - COVER

9 7015588

  • 7015588 - NOZZLE
  • DUCT

10 7005643

  • 7005643 - NOZZLE

11 7005881

  • 7005881 - DUCT
  • REAR

12 7015586

  • 7015586 - DUCT
  • CONTROL
  • W/Ref. 13

13 7006530

  • 7006530 - MOTOR MIX

14 7005948

  • 7005948 - COVER POCKET

15 7005953

  • 7005953 - COVER HOLE

16 7004547

  • 7004547 - BOLT

17 7004547

  • 7004547 - BOLT

18 7004548

  • 7004548 - BOLT

19 7004538

  • 7004538 - BOLT

20 7004930

  • 7004930 - COVER

21 7006113

  • 7006113 - DUCT
  • FOAM

22 7006114

  • 7006114 - DUCT
  • FOAM

23 7006115

  • 7006115 - DUCT
  • FOAM

24 7006256

  • 7006256 - PAD RUBBER

25 7004516

  • 7004516 - WASHER

26 7017366

  • 7017366 - BRACKET

27 7007609

  • 7007609 - BOLT
