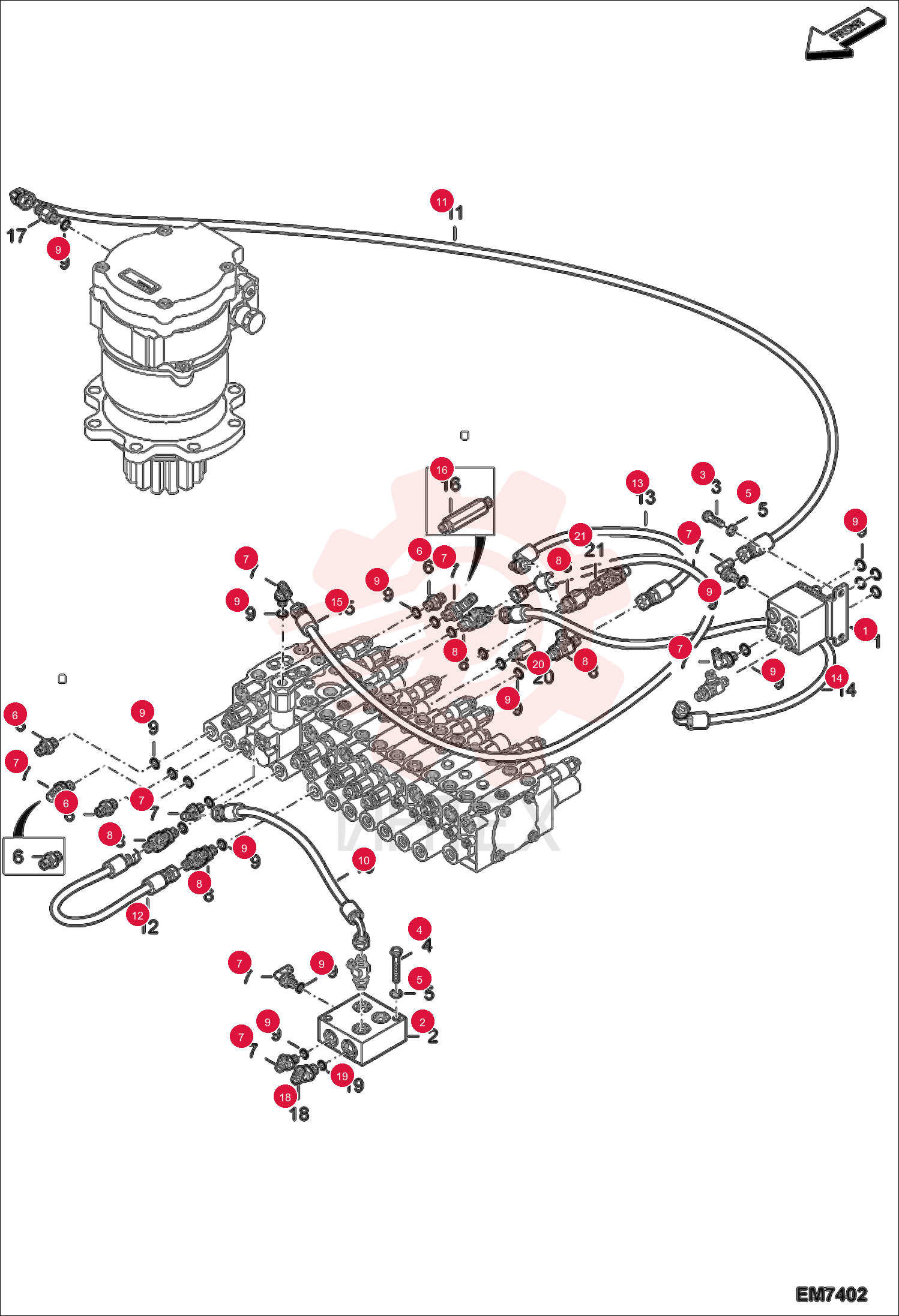

VALVE, SHUTTLE 7008274 (2)

VALVE, SHUTTLE 7008274 (2)

VALVE, SHUTTLE 7008274 (2)

1 7008274

  • 7008274 - VALVE
  • SHUTTLE

2 7005686

  • 7005686 - BLOCK

3 7007673

  • 7007673 - BOLT

4 7007658

  • 7007658 - BOLT

5 7276756

  • 7276756 - WASHER
  • Was 7007834

6 7004683

  • 7004683 - ADAPTER

7 7004683

  • 7004683 - ADAPTER

8 7004683

  • 7004683 - ADAPTER

9 7004713

  • 7004713 - ELBOW

10 7004713

  • 7004713 - ELBOW

11 7004738

  • 7004738 - TEE

12 7283267

  • 7283267 - O-RING
  • Was 7007906

13 7005308

  • 7005308 - HOSE

14 7005322

  • 7005322 - HOSE

15 7005492

  • 7005492 - HOSE

16 7008173

  • 7008173 - HOSE

17 7005377

  • 7005377 - HOSE

18 7005341

  • 7005341 - HOSE PF1/4-1200L

19 7004698

  • 7004698 - ADAPTER

20 7004678

  • 7004678 - ADAPTER

21 7004707

  • 7004707 - ELBOW

22 7284551

  • 7284551 - O-RING
  • Was 7007909

23 7005554

  • 7005554 - REDUCER

24 7008275

  • 7008275 - VALVE
  • SHUTTLE
