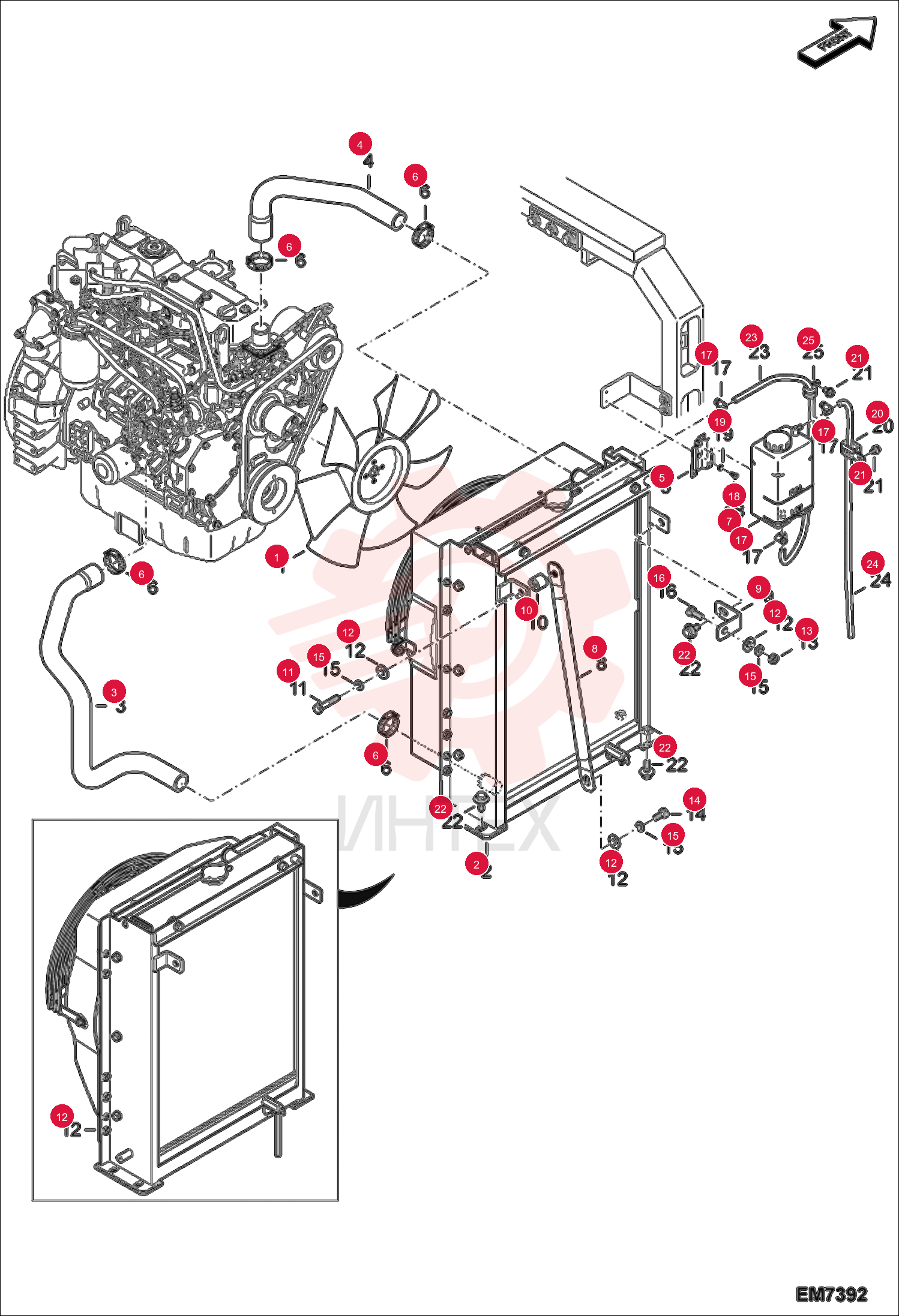

FAN COOLING 7005878

FAN COOLING 7005878

FAN COOLING 7005878

1 7005878

  • 7005878 - FAN COOLING

2 7277712

  • 7277712 - HOSE
  • WATER

3 7277713

  • 7277713 - HOSE
  • WATER

4 7004823

  • 7004823 - BRACKET

5 7007977

  • 7007977 - CLAMP

6 7007984

  • 7007984 - CLAMP HOSE

7 7005637

  • 7005637 - TANK RESERVE

8 7277856

  • 7277856 - CAP

9 7005883

  • 7005883 - STRAP

10 7005719

  • 7005719 - BRACKET

11 7005578

  • 7005578 - COLLAR

12 7007686

  • 7007686 - BOLT

13 7004477

  • 7004477 - WASHER PLAIN

14 7007799

  • 7007799 - NUT

15 7007636

  • 7007636 - BOLT

16 7007836

  • 7007836 - WASHER SPRING M12

17 7007639

  • 7007639 - BOLT

18 7007973

  • 7007973 - CLAMP

19 7028908

  • 7028908 - CLIP
  • HOSE

20 7282935

  • 7282935 - CLIP HOSE

21 7007973

  • 7007973 - CLAMP

22 7007603

  • 7007603 - BOLT

23 7007814

  • 7007814 - WASHER

24 7003902

  • 7003902 - CLIP

25 7005629

  • 7005629 - BOLT

26 7005124

  • 7005124 - BOLT SET

27 7005819

  • 7005819 - HOSE WATER

28 7004795

  • 7004795 - HOSE
  • WATER

29 7005534

  • 7005534 - HOSE
  • WATER

30 7282948

  • 7282948 - HOSE
  • WATER

31 7003894

  • 7003894 - CLIP

32 7029532

  • 7029532 - CLIP
