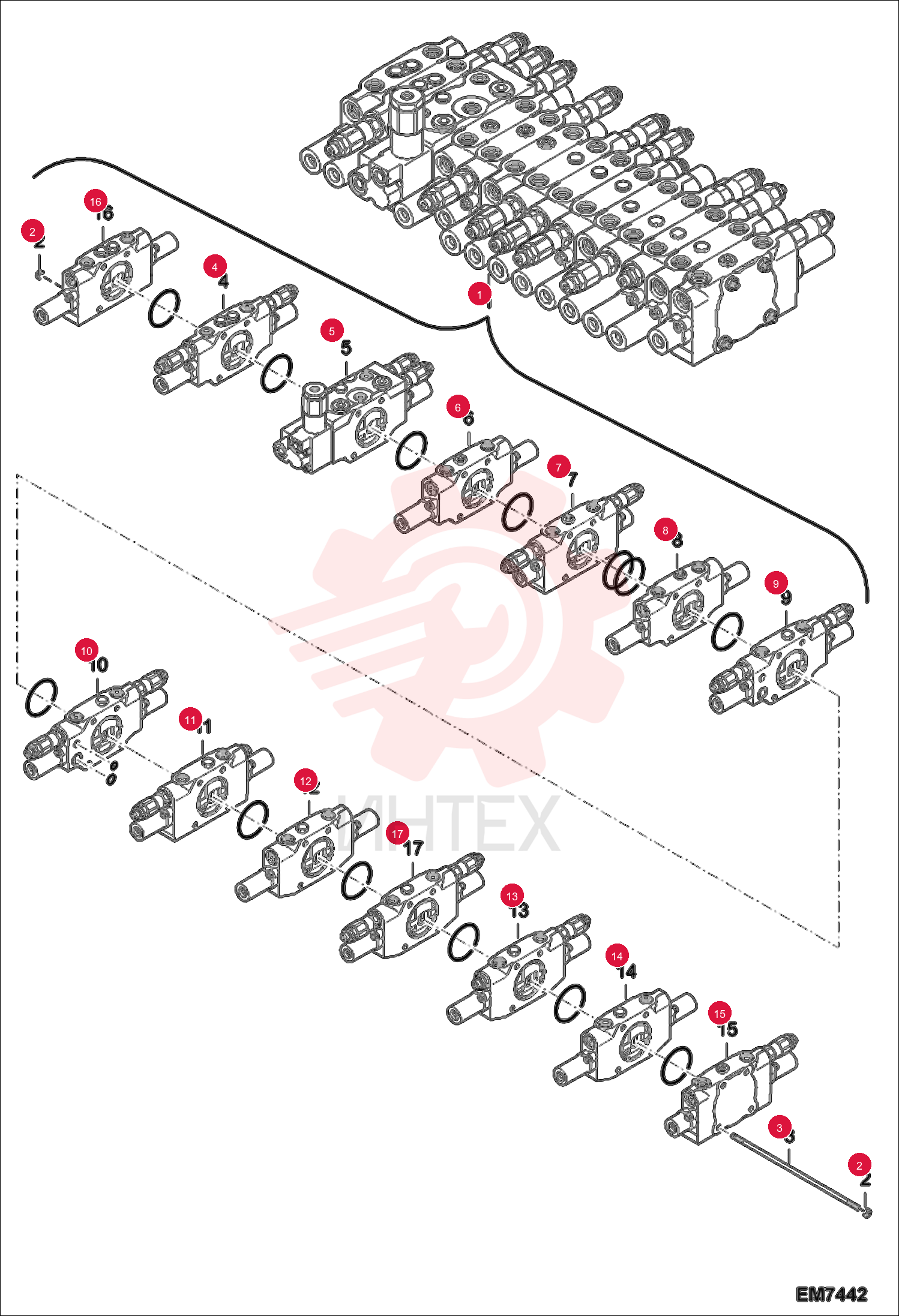

VALVE, CONTROL 7023678 (2)

VALVE, CONTROL 7023678 (2)

VALVE, CONTROL 7023678 (2)

1 7023678

  • 7023678 - VALVE
  • CONTROL
  • W/Ref. 2-17 - Was 7020394

2 7006925

  • 7006925 - NUT

3 7006945

  • 7006945 - TIE ROD

4 7007007

  • 7007007 - BLOCK ASSY-BUCKET
  • bucket

5 7007008

  • 7007008 - BLOCK ASSY-BOOM1
  • boom 1

6 7007009

  • 7007009 - BLOCK ASSY-TRAVEL R
  • RH travel

7 7007010

  • 7007010 - BLOCK ASSY-INLET
  • inlet

8 7007011

  • 7007011 - BLOCK ASSY-TRAVEL L
  • LH travel

9 7007055

  • 7007055 - BLOCK ASSY-ROTARY
  • rotary

10 7006929

  • 7006929 - BLOCK ASSY-ARM1
  • arm 1

11 7007013

  • 7007013 - BLOCK ASSY-BOOM2/AUX
  • boom 2 auxiliary

12 7007014

  • 7007014 - BLOCK ASSY-DOZER
  • blade

13 7007056

  • 7007056 - BLOCK ASSY-BOOM SWING
  • offset

14 7007015

  • 7007015 - BLOCK ASSY-SWING
  • slew

15 7020839

  • 7020839 - SECTION
  • VALVE
  • travel - Was 7006928

16 7007006

  • 7007006 - BLOCK ASSY-ARM2
  • arm 2

17 7007244

  • 7007244 - BLOCK ASSY-TILTING
  • 2nd auxiliary/rotation
