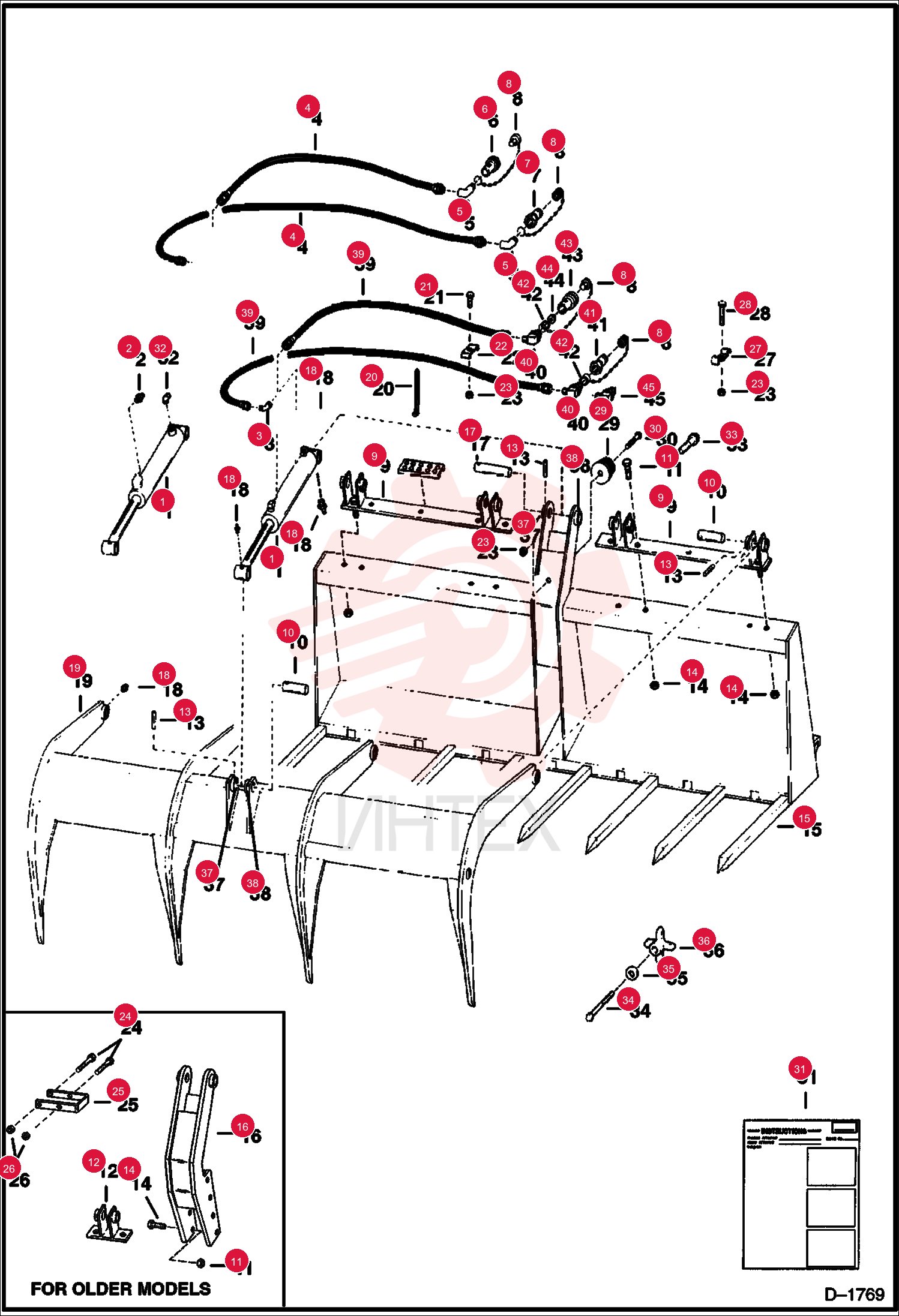

CONNECTR 89F5 (3)
1 89F5
- 89F5 - CONNECTR
2 83F5
- 83F5 - ELBOW
3 6557124
- 6557124 - ASSY
- HOSE
4 29F3
- 29F3 - ELBOW
5 25K40026
- 25K40026 - O RING 10
6 6598756
- 6598756 - COUPLER
- Female
7 6598755
- 6598755 - COUPLER
- Male
8 6515168
- 6515168 - CAP
- Steel
9 6515167
- 6515167 - CAP
- Steel
10 6513709
- 6513709 - CAP AND PLUG
- assy. - Rubber
11 6576260
- 6576260 - MOUNT
- BRACKET
- 2 piece - Weld On
12 6505199
- 6505199 - PIN
13 17C820
- 17C820 - BOLT 5
14 6505124
- 6505124 - BRACKET
- Inside
15 6508592
- 6508592 - BRACKET
- Outside
16 742953
- 742953 - ROLL PIN
17 85D8
- 85D8 - NUT PRETRQ HEX LOCK
18 6505126
- 6505126 - MOUNT
19 6505198
- 6505198 - PIN
20 10H25
- 10H25 - FTG GREASE STRAIGHT
21 6554629
- 6554629 - TOOTH
22 6610510
- 6610510 - STRAP
- TIE 10
- Was 1715312B
23 17C628
- 17C628 - BOLT
24 6502773
- 6502773 - CLAMP
25 85D6
- 85D6 - NUT PRETRQ HEX LOCK
26 17C572
- 17C572 - BOLT
27 6557125
- 6557125 - CLAMP
28 85D5
- 85D5 - NUT PRETRQ HEX LOCK
29 6563353
- 6563353 - CLAMP
30 17C644
- 17C644 - BOLT
31 6562109
- 6562109 - STOP
- SWING
32 17C616
- 17C616 - BOLT 5
33 6570942
- 6570942 - INSTRUCTION
- Was 6570386
34 11K5
- 11K5 - FITTING
- ELBOW
35 84G3728
- 84G3728 - SCREW THD ROLLING TT
36 17C652
- 17C652 - BOLT
37 17C680
- 17C680 - BOLT
38 25E17
- 25E17 - WASHER FLAT PLAIN
39 6647668
- 6647668 - KNOB
40 6504062
- 6504062 - HUB
41 6503743
- 6503743 - TUBE
42 6563438
- 6563438 - HOSE
43 1300913
- 1300913 - ELBOW
- Use with poppet couplers
44 6589193
- 6589193 - ELBOW
- Use with flush face couplers
45 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
46 6598757
- 6598757 - COUPLER
- POPPET MALE
- straight
47 7246777
- 7246777 - COUPLER
- FF MALE
- - Was 6674688
48 79K12
- 79K12 - O RING 10
- Use with flush face couplers
49 79K10
- 79K10 - O RING 10
- Use with poppet couplers
50 6598758
- 6598758 - COUPLER FF FEMALE
- straight
51 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
52 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
53 6660556
- 6660556 - ORIFICE
- .07"(1
- 78mm) Dia-.875" threads used with poppet couplers
54 6668115
- 6668115 - ORIFICE
- .07"(1
- 78mm) Dia-1.06" threads used with flush face couplers - do not use with 6674688 coupler
55 6678056
- 6678056 - ELBOW
- w/built-in .070" orifice
