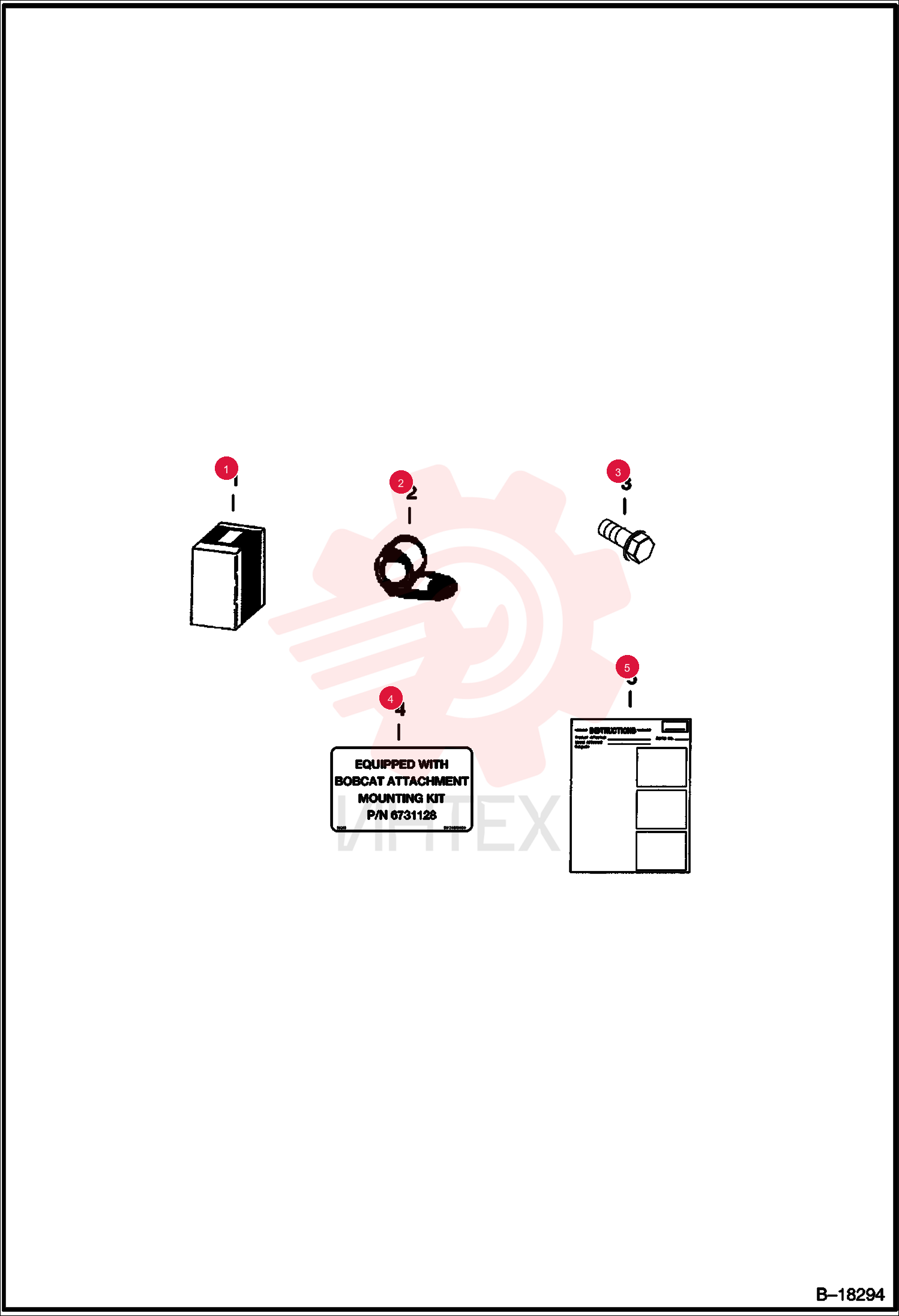

KIT,UTIL GRPL 85XT

KIT,UTIL GRPL 85XT

KIT,UTIL GRPL 85XT

1 6731128

  • 6731128 - KIT
  • UTIL GRPL 85XT
  • Case 85XT / Utility Grapple - W/Ref. 2 - 5

2 31H46

  • 31H46 - CLAMP

3 84G3716

  • 84G3716 - SCREW THD ROLLING TT

4 6731130

  • 6731130 - DECAL

5 6901487

  • 6901487 - INSTRUCTIONS
