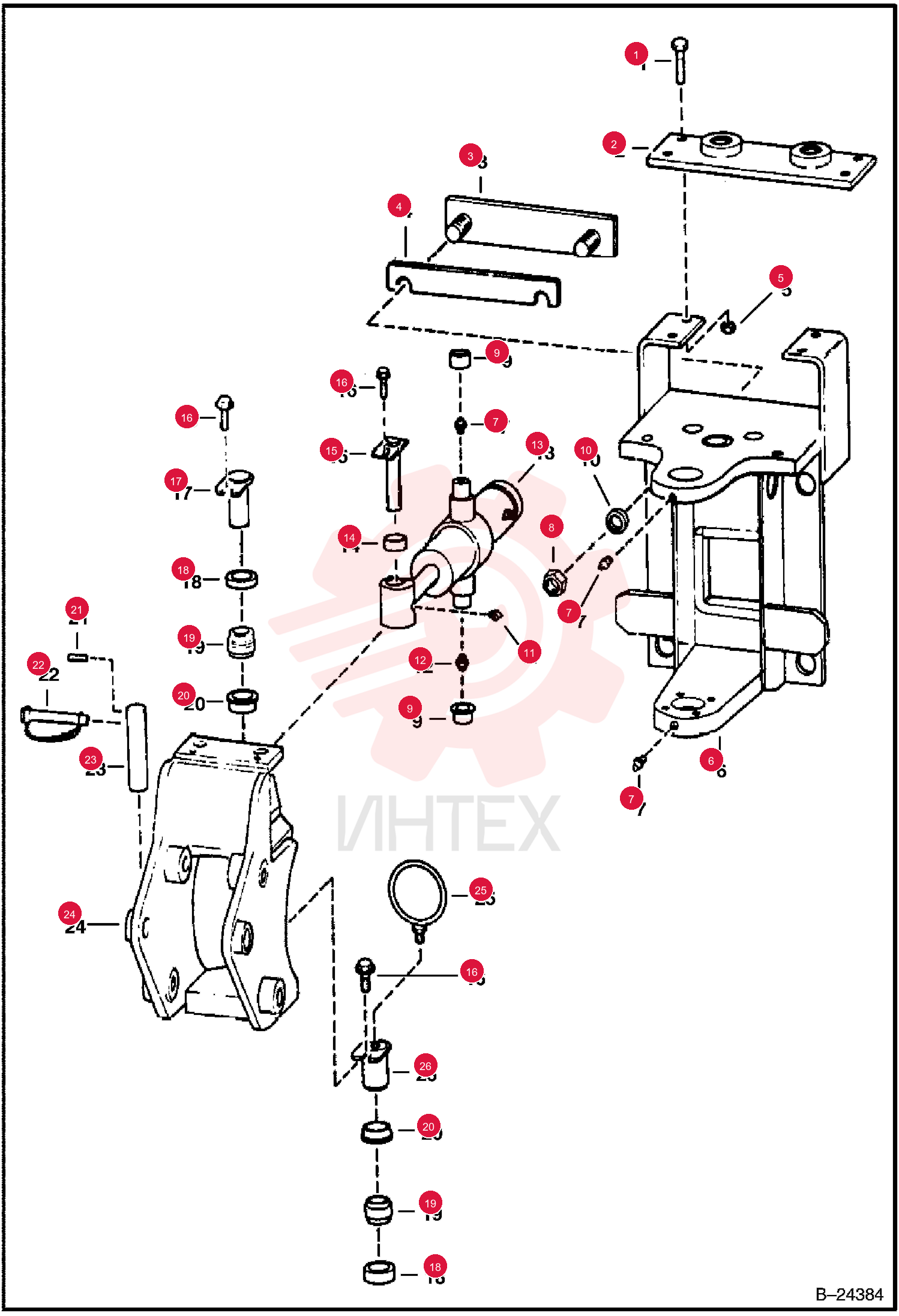

BOLT 17C1028 (2)

BOLT 17C1028 (2)

BOLT 17C1028 (2)

1 17C1028

  • 17C1028 - BOLT
  • Was 17C001040B

2 6808812

  • 6808812 - BRACKET
  • Was 6532339

3 6532826

  • 6532826 - BAR
  • Clamping

4 85D10

  • 85D10 - NUT
  • 5

5 6806372

  • 6806372 - FRAME SLIDE
  • Was 6538889

6 10H25

  • 10H25 - FTG GREASE STRAIGHT

7 85D16

  • 85D16 - NUT
  • LOCK

8 6650253

  • 6650253 - BEARING

9 28E16

  • 28E16 - WASHER

10 11H15

  • 11H15 - FTG GREASE STRAIGHT

11 12H15

  • 12H15 - FTG GREASE 90

12 6651449

  • 6651449 - BEARING

13 6531964

  • 6531964 - PIN

14 84G3712

  • 84G3712 - SCREW THD ROLLING TT

15 6538962

  • 6538962 - PIN

16 6538963

  • 6538963 - BEARING

17 6658692

  • 6658692 - BEARING

18 6538958

  • 6538958 - BEARING
  • Flanged

19 14J3740

  • 14J3740 - PIN

20 6510020

  • 6510020 - PIN
  • LOCK

21 6593895

  • 6593895 - LOCK
  • BOOM
  • Boom Lock

22 6806554

  • 6806554 - FRAME
  • SWING
  • Was 6537745

23 6538953

  • 6538953 - PIN
