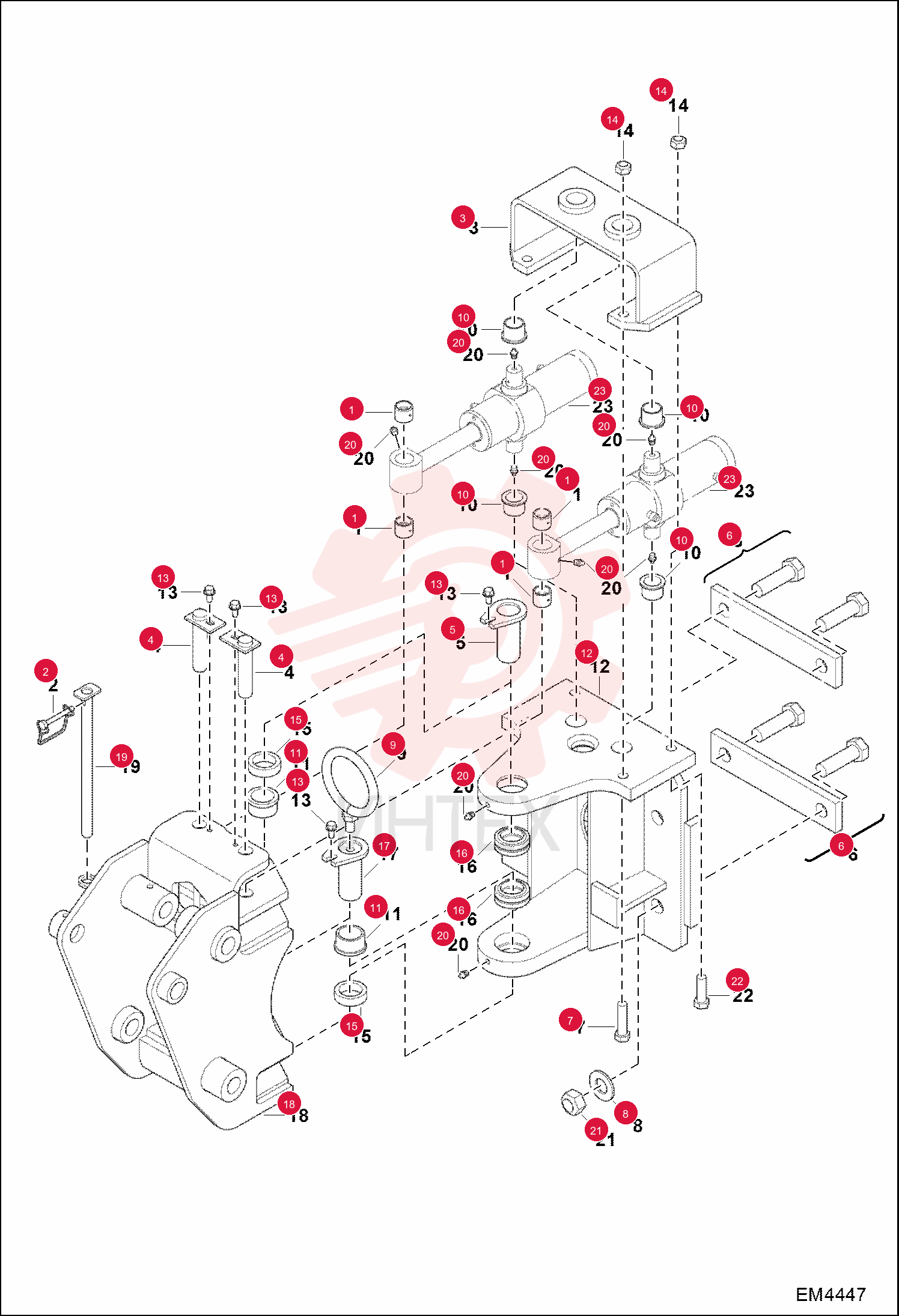

BUSHING 618453

BUSHING 618453

BUSHING 618453

1 618453

  • 618453 - BUSHING

2 6510020

  • 6510020 - PIN
  • LOCK

3 6531897

  • 6531897 - BRACKET

4 6531913

  • 6531913 - PIN

5 6531942

  • 6531942 - PIN

6 6531955

  • 6531955 - BAR

7 1C1040

  • 1C1040 - SCREW

8 27E16

  • 27E16 - WASHER

9 6541143

  • 6541143 - BUSHING

10 6968396

  • 6968396 - BUSHING

11 6713478

  • 6713478 - SLIDEFRAM

12 84G3712

  • 84G3712 - SCREW THD ROLLING TT

13 85D10

  • 85D10 - NUT
  • 5

14 6968396

  • 6968396 - BUSHING

15 6968397

  • 6968397 - Bushing

16 6968884

  • 6968884 - PIN

17 6977401

  • 6977401 - FRAME
  • W/A SWING

18 7125353

  • 7125353 - PIN
  • W/A

19 10H25

  • 10H25 - FTG GREASE STRAIGHT

20 85D16

  • 85D16 - NUT
  • LOCK

21 1C1032

  • 1C1032 - BOLT

22 6802067

  • 6802067 - ASSY
  • CYL
