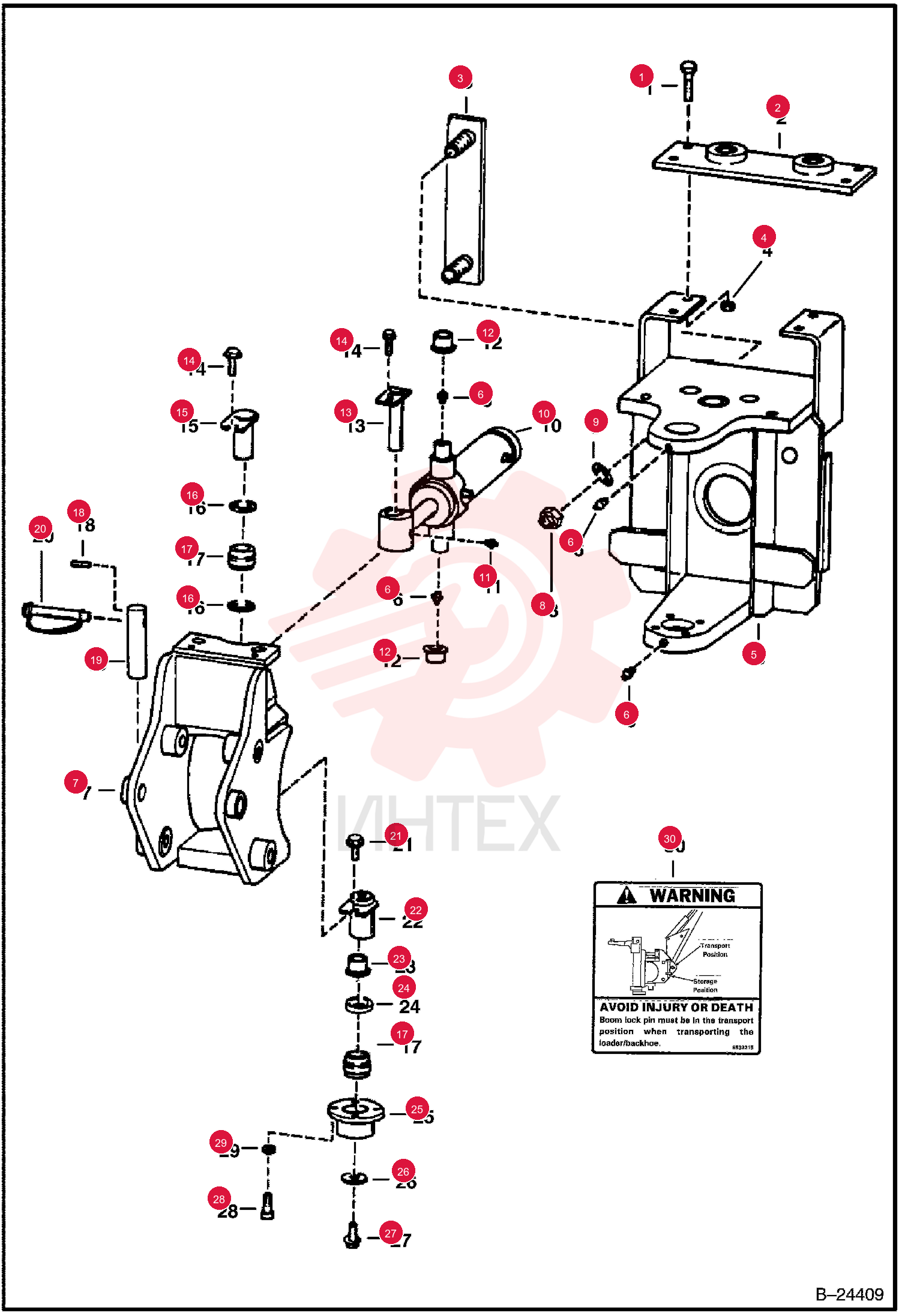

BOLT 17C1028 (3)

BOLT 17C1028 (3)

BOLT 17C1028 (3)

1 17C1028

  • 17C1028 - BOLT
  • Was 17C001040B

2 6808812

  • 6808812 - BRACKET
  • Was 6532339

3 6532826

  • 6532826 - BAR
  • Clamping

4 85D10

  • 85D10 - NUT
  • 5

5 6532358

  • 6532358 - FRAME

6 10H25

  • 10H25 - FTG GREASE STRAIGHT

7 6538520

  • 6538520 - FRAME
  • SWING

8 85D16

  • 85D16 - NUT
  • LOCK

9 28E16

  • 28E16 - WASHER

10 11H15

  • 11H15 - FTG GREASE STRAIGHT

11 6651449

  • 6651449 - BEARING

12 6531964

  • 6531964 - PIN

13 84G3712

  • 84G3712 - SCREW THD ROLLING TT

14 6531942

  • 6531942 - PIN

15 6531946

  • 6531946 - SPACER

16 6651229

  • 6651229 - BEARING

17 14J3740

  • 14J3740 - PIN

18 6593895

  • 6593895 - LOCK
  • BOOM
  • Boom Lock

19 6510020

  • 6510020 - PIN
  • LOCK

20 31C820

  • 31C820 - BOLT

21 84G3712

  • 84G3712 - SCREW THD ROLLING TT

22 6531945

  • 6531945 - PIN

23 6538519

  • 6538519 - BEARING
  • Flanged

24 6538516

  • 6538516 - SPACER

25 6531939

  • 6531939 - RETAINER

26 6534555

  • 6534555 - WASHER

27 6560416

  • 6560416 - WASHER

28 31C1224

  • 31C1224 - BOLT

29 31C1024

  • 31C1024 - BOLT

30 93G824

  • 93G824 - BOLT
  • Was 73G824

31 4E8

  • 4E8 - WASHER

32 6533215

  • 6533215 - DECAL
  • WARNING
  • Transport Warning
