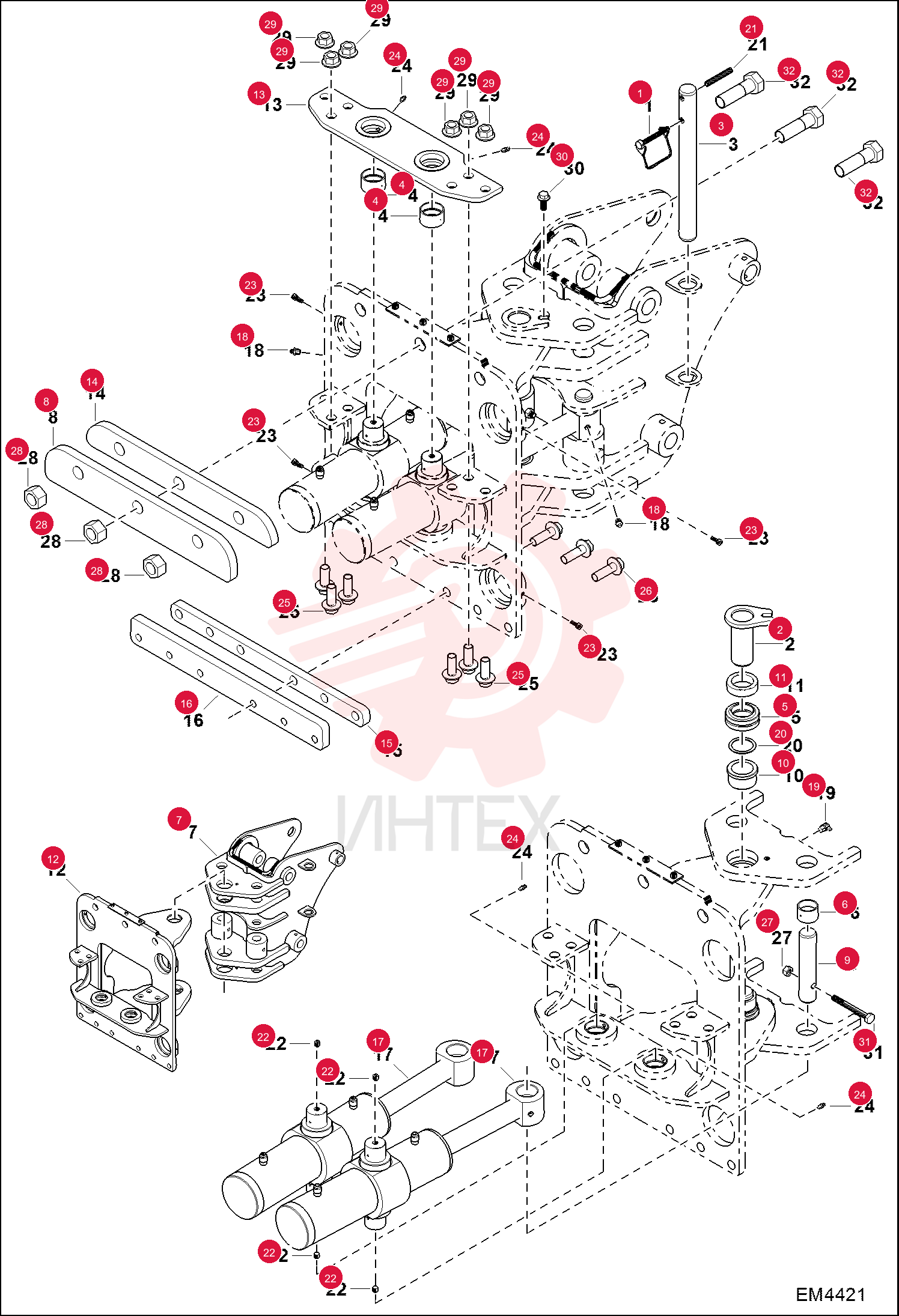

PIN, LOCK 6510020

PIN, LOCK 6510020

PIN, LOCK 6510020

1 6510020

  • 6510020 - PIN
  • LOCK

2 6531942

  • 6531942 - PIN

3 6593895

  • 6593895 - LOCK
  • BOOM

4 6650253

  • 6650253 - BEARING

5 6651229

  • 6651229 - BEARING

6 6651449

  • 6651449 - BEARING

7 6963024

  • 6963024 - Swing Frame W/A

8 6977093

  • 6977093 - Swing Frame W/A

9 6963042

  • 6963042 - Plate

10 6963043

  • 6963043 - Pin

11 6968396

  • 6968396 - BUSHING

12 6968397

  • 6968397 - Bushing

13 6978946

  • 6978946 - Slide W/A

14 6978947

  • 6978947 - Bracket Cyl WA

15 6979316

  • 6979316 - Plate

16 6979729

  • 6979729 - Plate

17 6979730

  • 6979730 - Plate

18 6817561

  • 6817561 - SWING CYLINDER

19 10H25

  • 10H25 - FTG GREASE STRAIGHT

20 12H15

  • 12H15 - FTG GREASE 90

21 13EM4015

  • 13EM4015 - Washer Shim

22 14J3740

  • 14J3740 - PIN

23 16F2

  • 16F2 - PLUG

24 1GM616

  • 1GM616 - BOLT

25 1HM6

  • 1HM6 - FTG GREASESTRAIGHT

26 30CM1640

  • 30CM1640 - Screw Hex HD W/F10.9

27 30CM1650

  • 30CM1650 - SCREW HEX HD W/F 10.9

28 4DM10

  • 4DM10 - NUT HEX

29 4DM24

  • 4DM24 - NUT HEX

30 51DM16

  • 51DM16 - NUT HEX FLNG 10 W/T

31 59CM1025

  • 59CM1025 - SCREW HX FLNG W/T 8.8

32 7CM1090

  • 7CM1090 - BOLT
  • HEX SOCKET

33 7CM2480

  • 7CM2480 - Screw Hex HD 10.9
