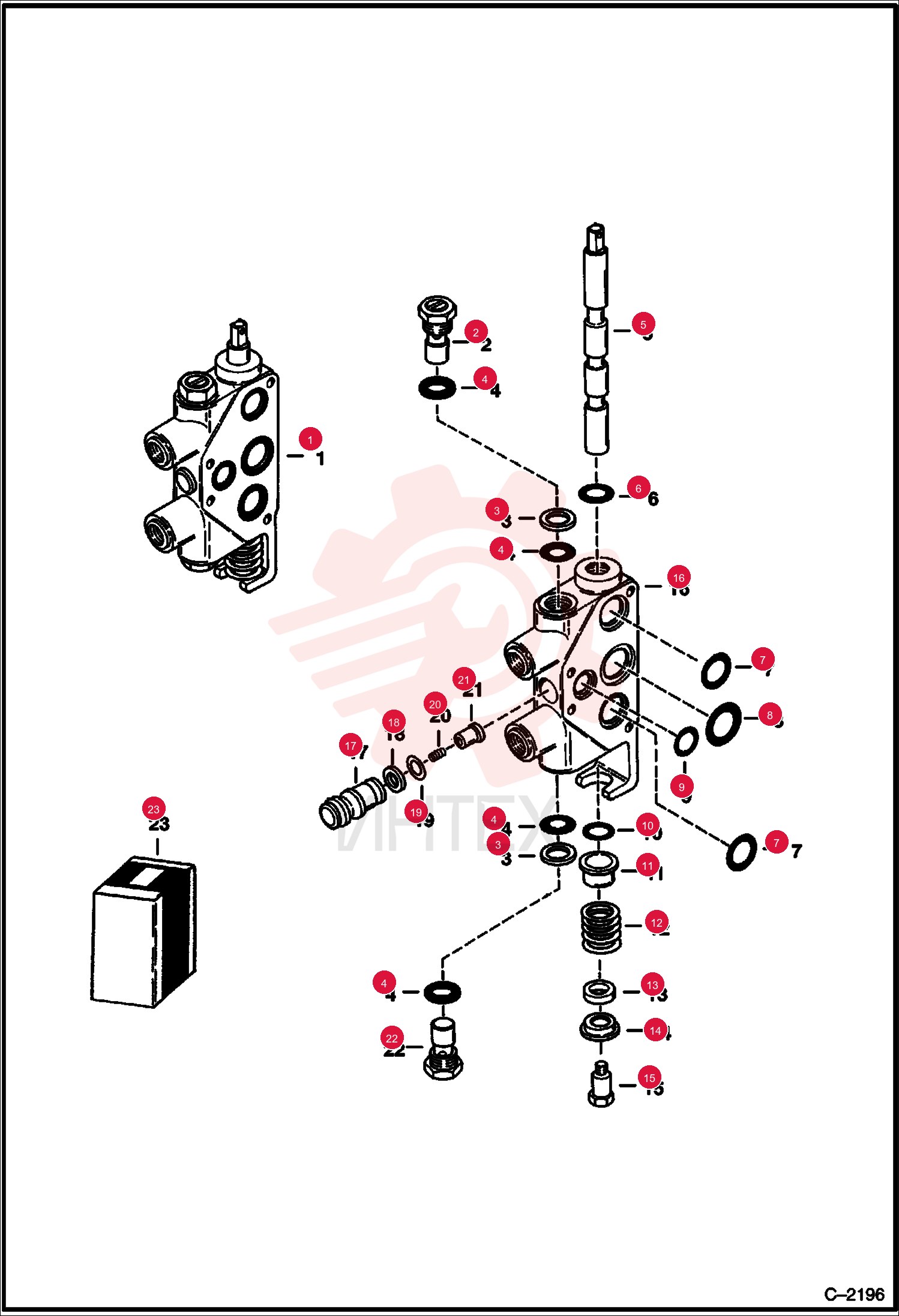

VALVE, SECTION 6510062

VALVE, SECTION 6510062

VALVE, SECTION 6510062

1 6510062

  • 6510062 - VALVE
  • SECTION
  • Ref. 5-21

2 73K116

  • 73K116 - RING
  • Was 80K000116B

3 25K30024

  • 25K30024 - O RING 10

4 4149070

  • 4149070 - WASHER
  • deep

5 4149068

  • 4149068 - SPRING SP

6 4149072

  • 4149072 - WASHER

7 4149067

  • 4149067 - WASHER
  • S
  • shallow

8 947750

  • 947750 - SCREW
  • spool

9 4149069

  • 4149069 - BODY LIFT
  • lift check

10 1550482

  • 1550482 - SPRING
  • lift check

11 4149071

  • 4149071 - PLUNGER L
  • lift check

12 6512603

  • 6512603 - VALVE
  • RELIEF
  • 2750 PSI

13 6510064

  • 6510064 - SEAL KIT
  • Between sections - Ref. 7-9

14 6510059

  • 6510059 - REPAIR KT
  • Ref. 3
  • 4
  • 6
  • 10
  • 18 & 19
