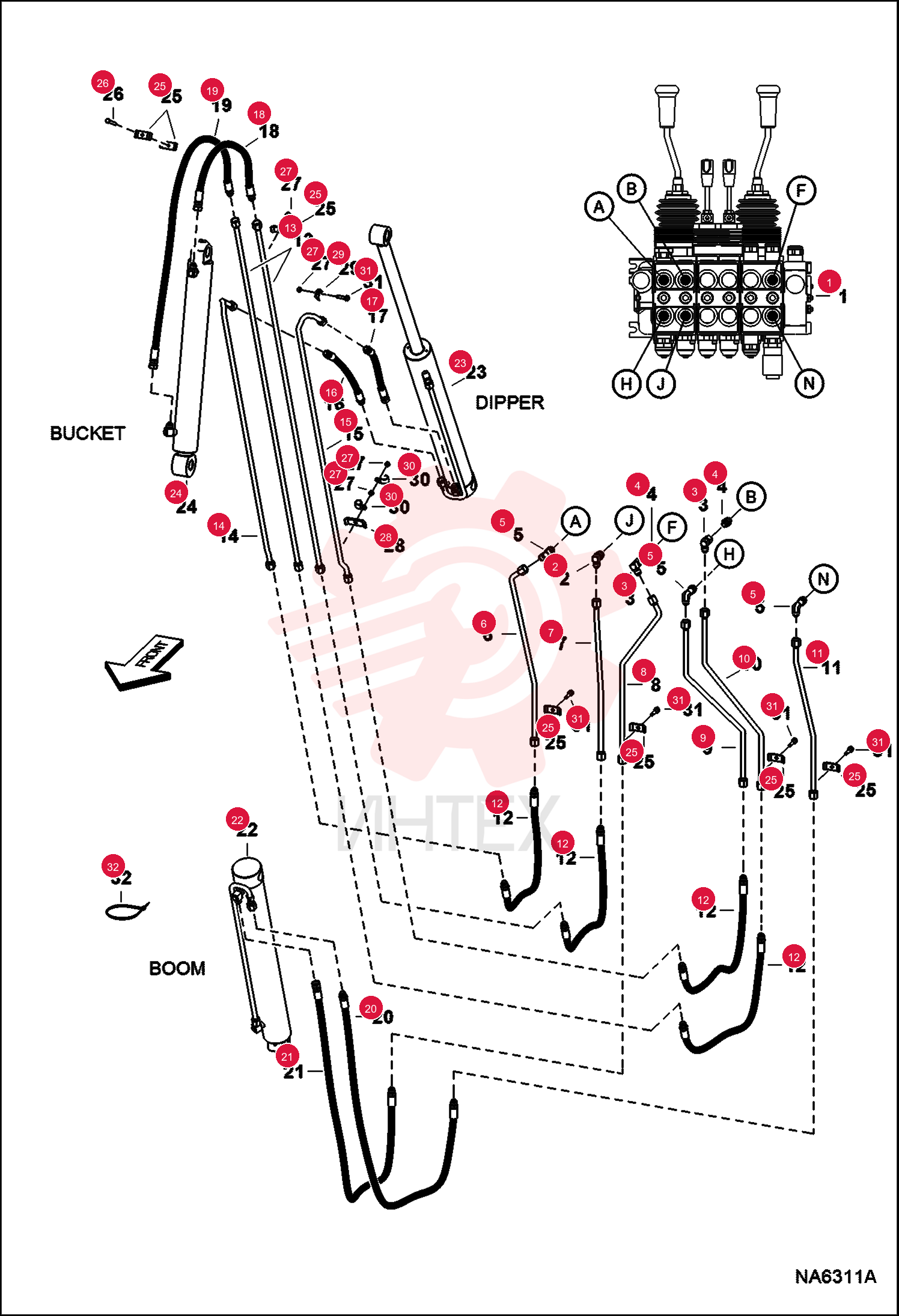

FTG HYD ELBOW 90 17KB1010 (4)

FTG HYD ELBOW 90 17KB1010 (4)

FTG HYD ELBOW 90 17KB1010 (4)

1 17KB1010

  • 17KB1010 - FTG HYD ELBOW 90

2 11K7

  • 11K7 - ADAPTER

3 15KB1010

  • 15KB1010 - FITTING
  • HYD CONNECTOR

4 6519195

  • 6519195 - ELBOW

5 7131255

  • 7131255 - TUBELINE

6 7131258

  • 7131258 - TUBELINE

7 7131259

  • 7131259 - TUBELINE

8 7131256

  • 7131256 - TUBELINE

9 7131257

  • 7131257 - TUBELINE

10 7131260

  • 7131260 - TUBELINE

11 7131530

  • 7131530 - HOSE

12 6536622

  • 6536622 - TUBE

13 6536623

  • 6536623 - TUBE

14 6536624

  • 6536624 - TUBE

15 6534349

  • 6534349 - HOSE

16 6713390

  • 6713390 - HOSE

17 6538438

  • 6538438 - HOSE

18 6536609

  • 6536609 - HOSE

19 7131531

  • 7131531 - HOSE

20 7131532

  • 7131532 - HOSE

21 6502426

  • 6502426 - CLAMP

22 17C632

  • 17C632 - BOLT 5

23 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

24 6537761

  • 6537761 - CLAMP

25 6562266

  • 6562266 - CLAMP TUBE

26 30H46

  • 30H46 - CLIP

27 84G3728

  • 84G3728 - SCREW THD ROLLING TT

28 6610510

  • 6610510 - STRAP
  • TIE 10
