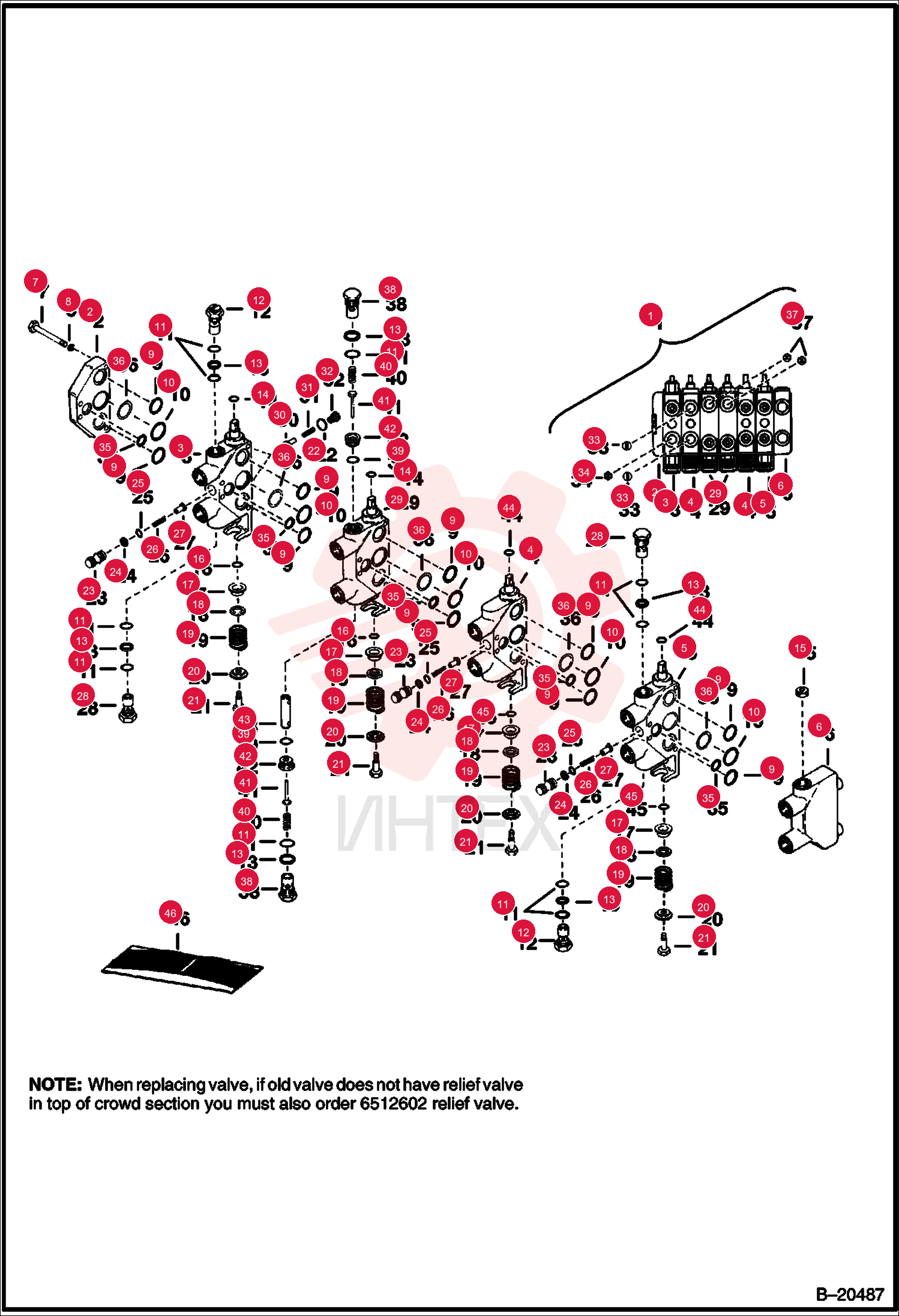

PLATE, END 6510041 (3)

PLATE, END 6510041 (3)

PLATE, END 6510041 (3)

1 6510041

  • 6510041 - PLATE
  • END
  • end

2 6513626

  • 6513626 - VALVE
  • SECTION
  • valve - crowd

3 17C6174

  • 17C6174 - BOLT

4 25E6

  • 25E6 - WSHR

5 6512603

  • 6512603 - VALVE
  • RELIEF

6 6510063

  • 6510063 - PLUG

7 4149070

  • 4149070 - WASHER
  • deep

8 4149072

  • 4149072 - WASHER
  • wire

9 6510048

  • 6510048 - SPRING

10 4149067

  • 4149067 - WASHER
  • S
  • shallow

11 947750

  • 947750 - SCREW

12 58K110

  • 58K110 - O RING 10

13 4149069

  • 4149069 - BODY LIFT
  • lift check

14 1550482

  • 1550482 - SPRING

15 4149071

  • 4149071 - PLUNGER L
  • lift check

16 994793

  • 994793 - POPPET

17 6510047

  • 6510047 - SPRING

18 6598346

  • 6598346 - PLUG ASSEMBLY

19 6598437

  • 6598437 - ORIFICE
  • .074" (1
  • 88 mm) dia.

20 6598752

  • 6598752 - ORIFICE
  • .081" (2.06 mm)

21 6598783

  • 6598783 - PLUG
  • W/Ref. 11 & 13

22 6598779

  • 6598779 - SPRING

23 6598780

  • 6598780 - POPPET US
  • Was 6599494

24 6598782

  • 6598782 - SEAT

25 6598781

  • 6598781 - PLUNGER

26 6510064

  • 6510064 - SEAL KIT
  • between section - Ref. 9
  • 10
  • 35 & 36

27 6598443

  • 6598443 - SEAL KIT
  • boom section - Ref. 11
  • 13
  • 14
  • 16
  • 24 & 25

28 6510058

  • 6510058 - SEAL KIT
  • bucket & swing sections - Ref. 24
  • 25
  • 44 & 45

29 6510059

  • 6510059 - REPAIR KT
  • crowd section - Ref. 11
  • 13
  • 24
  • 25
  • 44 & 45

30 6598203

  • 6598203 - SEAL KIT
  • complete overhaul

31 6598778

  • 6598778 - KIT
  • SEAL
  • stabilizer section - Ref. 11
  • 13
  • 14
  • 16 & 39
