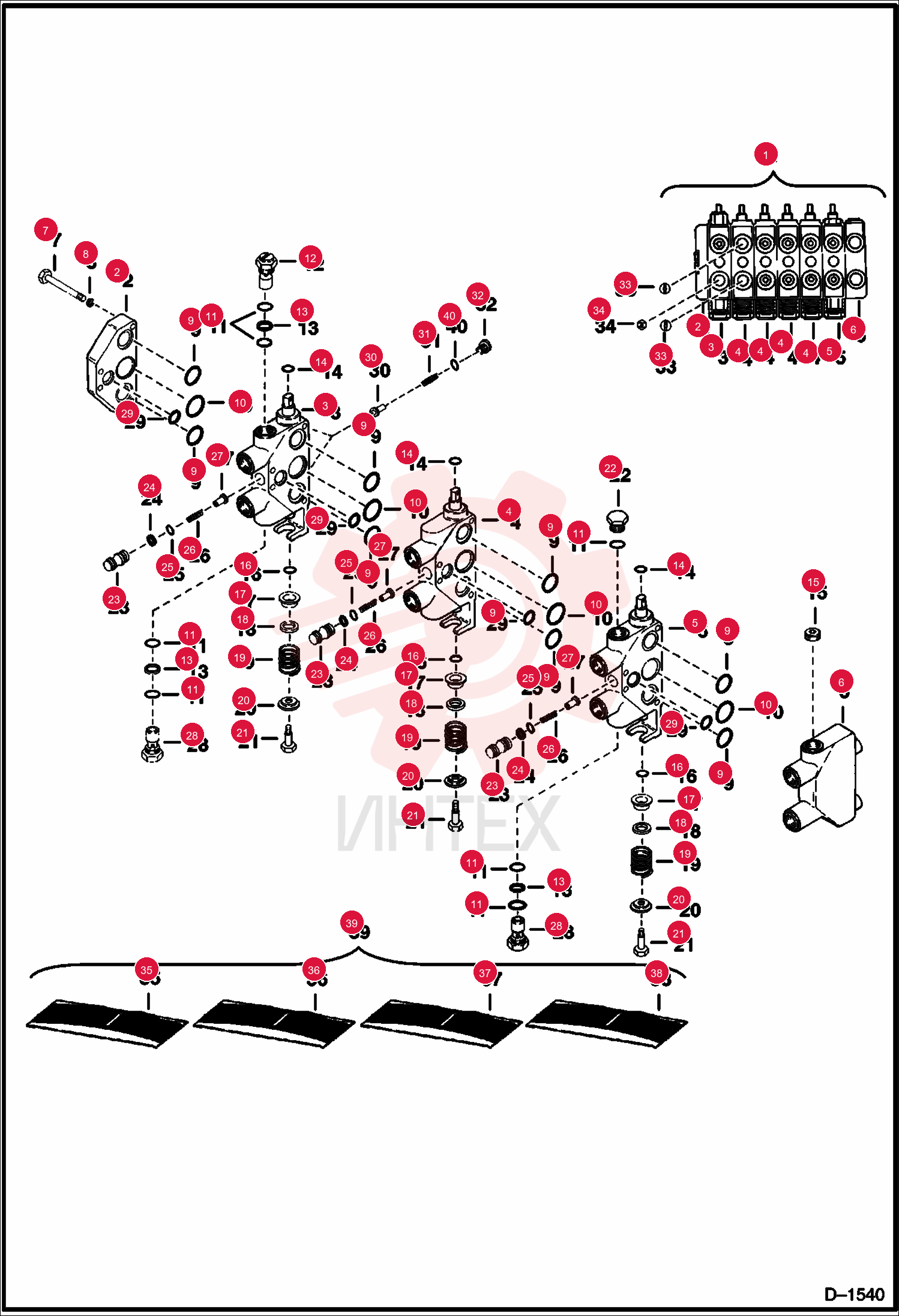

PLATE, END 6510041 (2)

PLATE, END 6510041 (2)

PLATE, END 6510041 (2)

1 6510041

  • 6510041 - PLATE
  • END
  • end

2 17C6174

  • 17C6174 - BOLT

3 25E6

  • 25E6 - WSHR

4 6512603

  • 6512603 - VALVE
  • RELIEF

5 6510063

  • 6510063 - PLUG

6 4149070

  • 4149070 - WASHER
  • deep

7 4149072

  • 4149072 - WASHER
  • wire

8 6510048

  • 6510048 - SPRING

9 4149067

  • 4149067 - WASHER
  • S
  • shallow

10 947750

  • 947750 - SCREW

11 6518043

  • 6518043 - PLUG

12 4149069

  • 4149069 - BODY LIFT
  • lift check

13 1550482

  • 1550482 - SPRING

14 4149071

  • 4149071 - PLUNGER L
  • lift check

15 994793

  • 994793 - POPPET

16 6510047

  • 6510047 - SPRING

17 6598346

  • 6598346 - PLUG ASSEMBLY

18 6598363

  • 6598363 - ORIFICE
  • .079"(2
  • 01 mm)

19 6598364

  • 6598364 - ORIFICE
  • .187" (4
  • 75 mm)

20 6510064

  • 6510064 - SEAL KIT
  • between sect. - Ref. 9
  • 10 & 29

21 6510058

  • 6510058 - SEAL KIT
  • stabilizer & swing sections Ref. 14
  • 16 & 25

22 6510059

  • 6510059 - REPAIR KT
  • crowd section - Ref. 11
  • 13
  • 14
  • 16
  • 24 & 25

23 6598443

  • 6598443 - SEAL KIT
  • boom section - Ref. 11
  • 13
  • 14
  • 16
  • 24 & 25

24 6598203

  • 6598203 - SEAL KIT
  • major - Ref. 35-38

25 58K110

  • 58K110 - O RING 10
