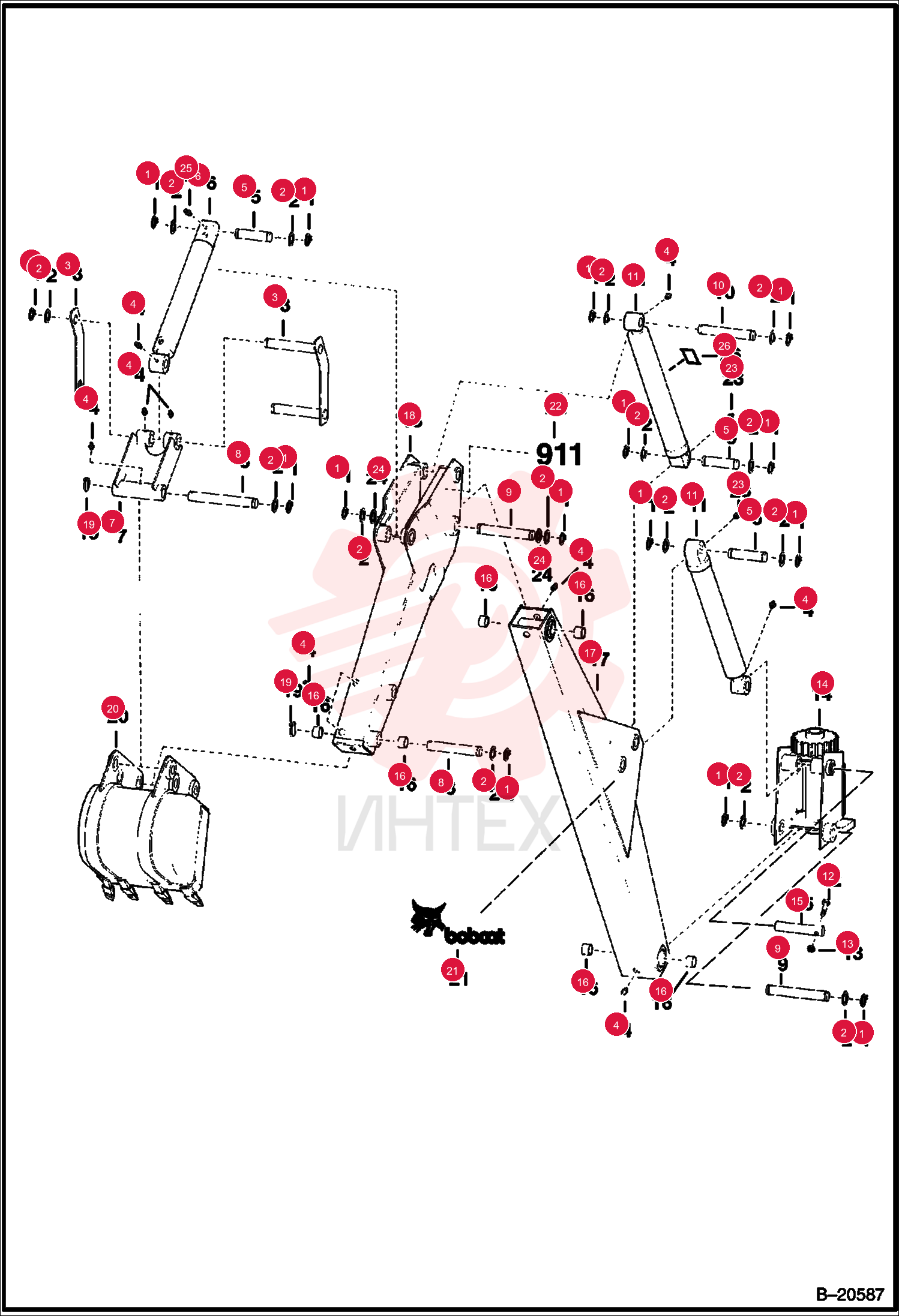

RING, SNAP 22J24 (3)

RING, SNAP 22J24 (3)

RING, SNAP 22J24 (3)

1 22J24

  • 22J24 - RING
  • SNAP
  • retainer - Was 6538285

2 231924

  • 231924 - WASHER
  • 1/8'' (3.18 mm) thick

3 6560390

  • 6560390 - LINK
  • W/ pins

4 6560391

  • 6560391 - LINK

5 10H25

  • 10H25 - FTG GREASE STRAIGHT

6 6560350

  • 6560350 - PIN

7 6592874

  • 6592874 - LINK

8 6560401

  • 6560401 - PIN
  • PIVOT BUCKET

9 6560349

  • 6560349 - PIN

10 6560352

  • 6560352 - PIN

11 17C648

  • 17C648 - SCREW HEX CAP

12 61D6

  • 61D6 - NUT HEX FINISHED GR5

13 6531611

  • 6531611 - FRAME
  • SWING
  • swing

14 6560351

  • 6560351 - PIN

15 6560334

  • 6560334 - BUSHING

16 6560726

  • 6560726 - BOOM
  • W/Ref. 16

17 6560384

  • 6560384 - DIPSTICK
  • W/Ref. 16

18 6560382

  • 6560382 - PIN
  • LOCK

19 6808545

  • 6808545 - DECAL
  • bobcat - R.H. - Was 6557412

20 6808546

  • 6808546 - DECAL
  • bobcat - L.H. - Was 6557413

21 6534438

  • 6534438 - DECAL

22 12H15

  • 12H15 - FTG GREASE 90

23 6584873

  • 6584873 - WASHER
  • 1/16'' (1.59 mm) thick

24 11H15

  • 11H15 - FTG GREASE STRAIGHT

25 6589445

  • 6589445 - DECAL
