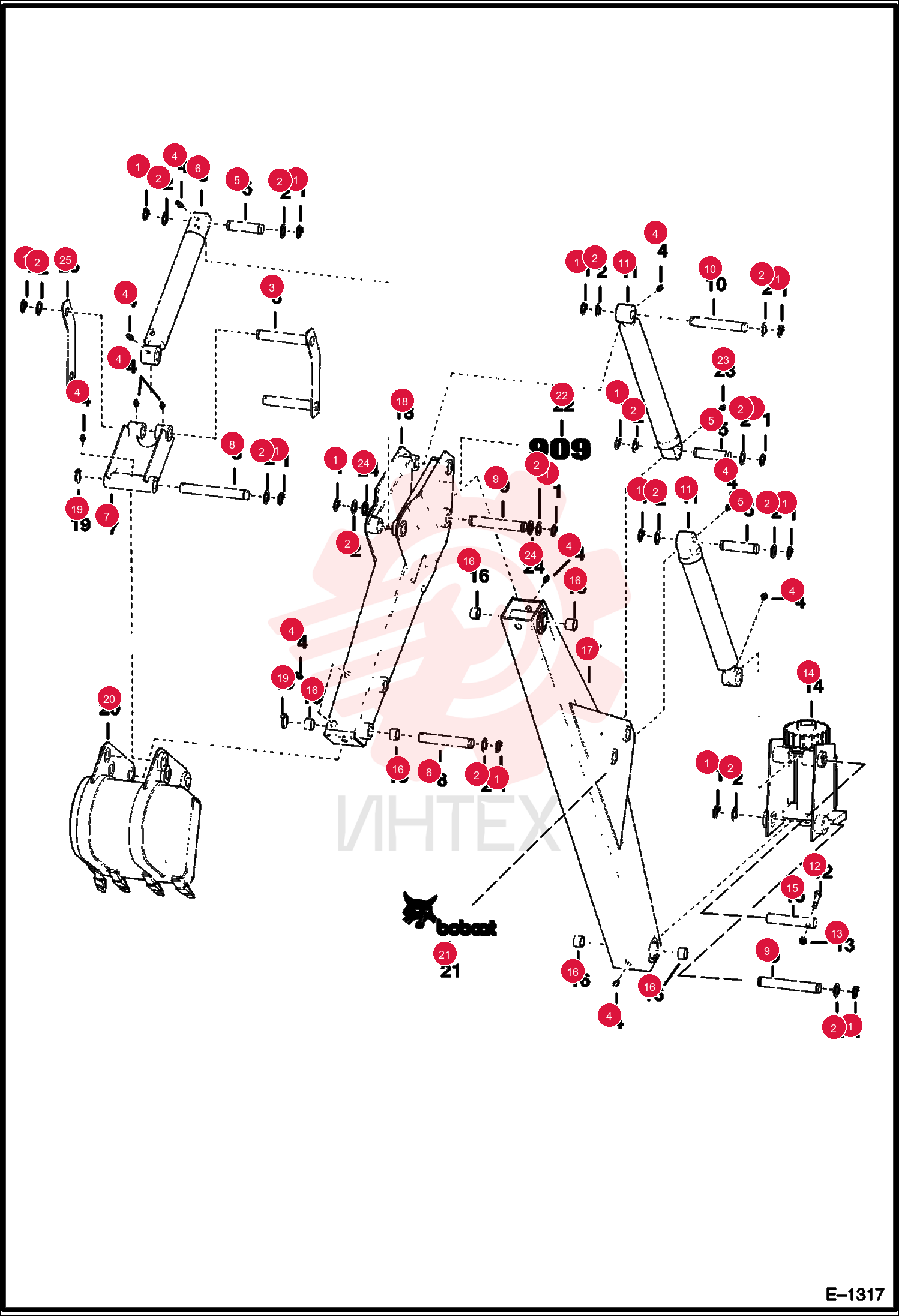

RING, SNAP 22J24 (1)

RING, SNAP 22J24 (1)

RING, SNAP 22J24 (1)

1 22J24

  • 22J24 - RING
  • SNAP
  • retainer - Was 6538285

2 6584872

  • 6584872 - WASHER 5
  • 1/8" (3.18 mm) thick

3 6560390

  • 6560390 - LINK
  • W/pins

4 10H25

  • 10H25 - FTG GREASE STRAIGHT

5 6560350

  • 6560350 - PIN

6 6592874

  • 6592874 - LINK

7 6560401

  • 6560401 - PIN
  • PIVOT BUCKET

8 6560349

  • 6560349 - PIN

9 6560352

  • 6560352 - PIN

10 17C648

  • 17C648 - SCREW HEX CAP

11 61D6

  • 61D6 - NUT HEX FINISHED GR5

12 6560351

  • 6560351 - PIN

13 6560334

  • 6560334 - BUSHING

14 6560727

  • 6560727 - ASSY
  • BOOM
  • W/Ref. 16

15 6560792

  • 6560792 - ARM DIPPER ASSEMBLY
  • W/Ref. 16

16 6560382

  • 6560382 - PIN
  • LOCK

17 6808545

  • 6808545 - DECAL
  • bobcat - R.H. - Was 6557412

18 6808546

  • 6808546 - DECAL
  • bobcat - L.H. - Was 6557413

19 6593413

  • 6593413 - DECAL

20 12H15

  • 12H15 - FTG GREASE 90

21 6584873

  • 6584873 - WASHER
  • 1/16" (1
  • 59 mm) thick

22 6560391

  • 6560391 - LINK
