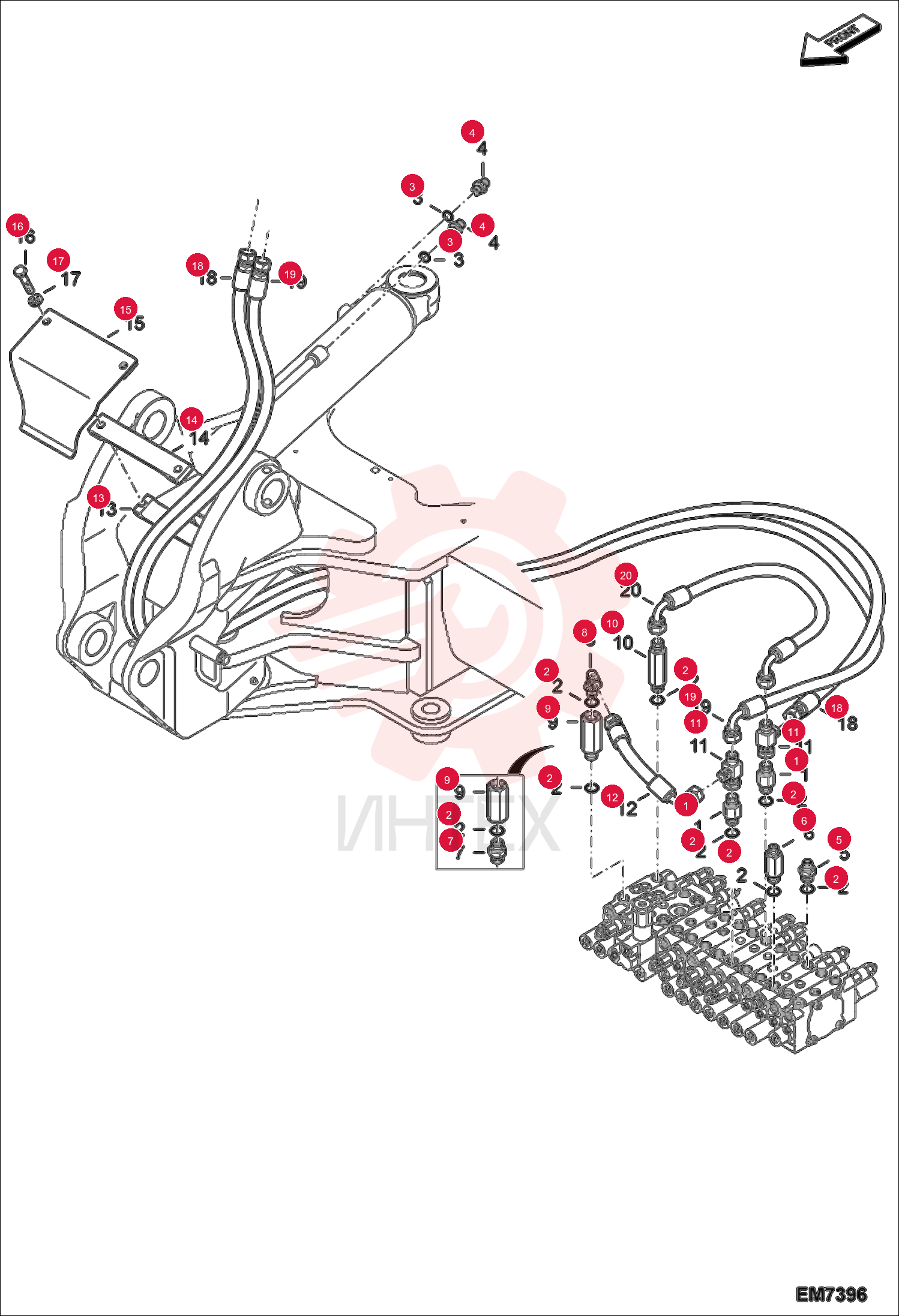

ADAPTER 7004691

ADAPTER 7004691

ADAPTER 7004691

1 7004691

  • 7004691 - ADAPTER

2 7284557

  • 7284557 - O-RING
  • Was 7007911

3 7284557

  • 7284557 - O-RING
  • Was 7007911

4 7284551

  • 7284551 - O-RING
  • Was 7007909

5 7004696

  • 7004696 - ADAPTER

6 7004685

  • 7004685 - ADAPTER

7 7004701

  • 7004701 - ADAPTER

8 7004731

  • 7004731 - ADAPTER

9 7004710

  • 7004710 - ELBOW

10 7015589

  • 7015589 - VALVE
  • CHECK

11 7004681

  • 7004681 - ADAPTER

12 7003957

  • 7003957 - TEE UNION

13 7005410

  • 7005410 - HOSE

14 7006710

  • 7006710 - CLAMP HOSE

15 7006711

  • 7006711 - CLAMP HOSE

16 7006712

  • 7006712 - COVER

17 7007686

  • 7007686 - BOLT

18 7007820

  • 7007820 - WASHER SPRING

19 7005509

  • 7005509 - HOSE

20 7005405

  • 7005405 - HOSE

21 7005246

  • 7005246 - HOSE
