Bobcat
/
E55W
/

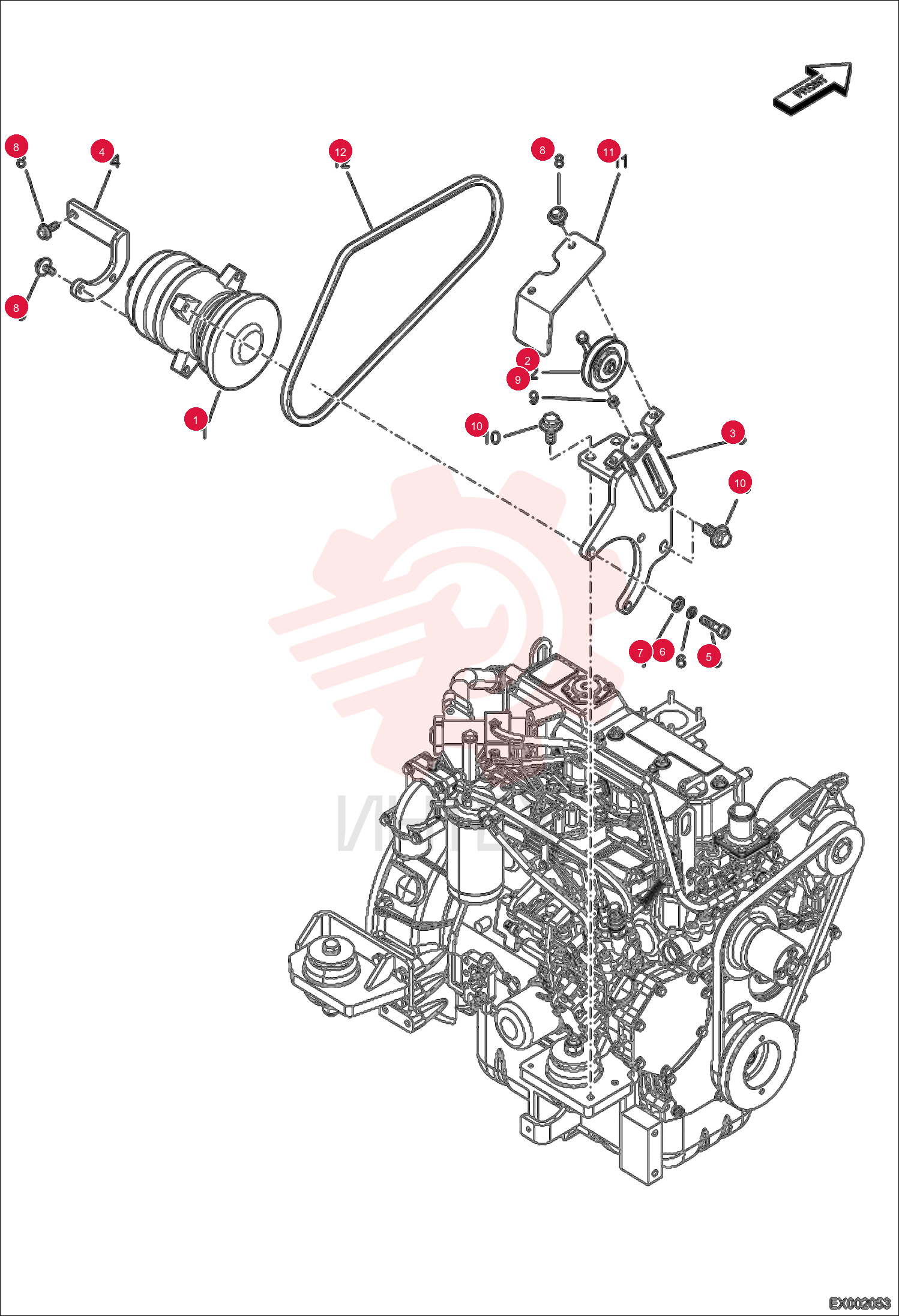

COMPRESSOR ASSY 7004842

COMPRESSOR ASSY 7004842

COMPRESSOR ASSY 7004842

1 7004842

  • 7004842 - COMPRESSOR ASSY

2 7005660

  • 7005660 - PULLEY

3 7006364

  • 7006364 - BRACKET

4 7005834

  • 7005834 - BRACKET

5 7007751

  • 7007751 - BOLT SOCKET M10X1.5X40

6 7007844

  • 7007844 - WASHER

7 7007818

  • 7007818 - WASHER PLAIN M10

8 7005128

  • 7005128 - BOLT SET

9 7007796

  • 7007796 - NUT

10 7005124

  • 7005124 - BOLT SET

11 7019005

  • 7019005 - COVER

12 7005577

  • 7005577 - BELT COMPRESSOR
