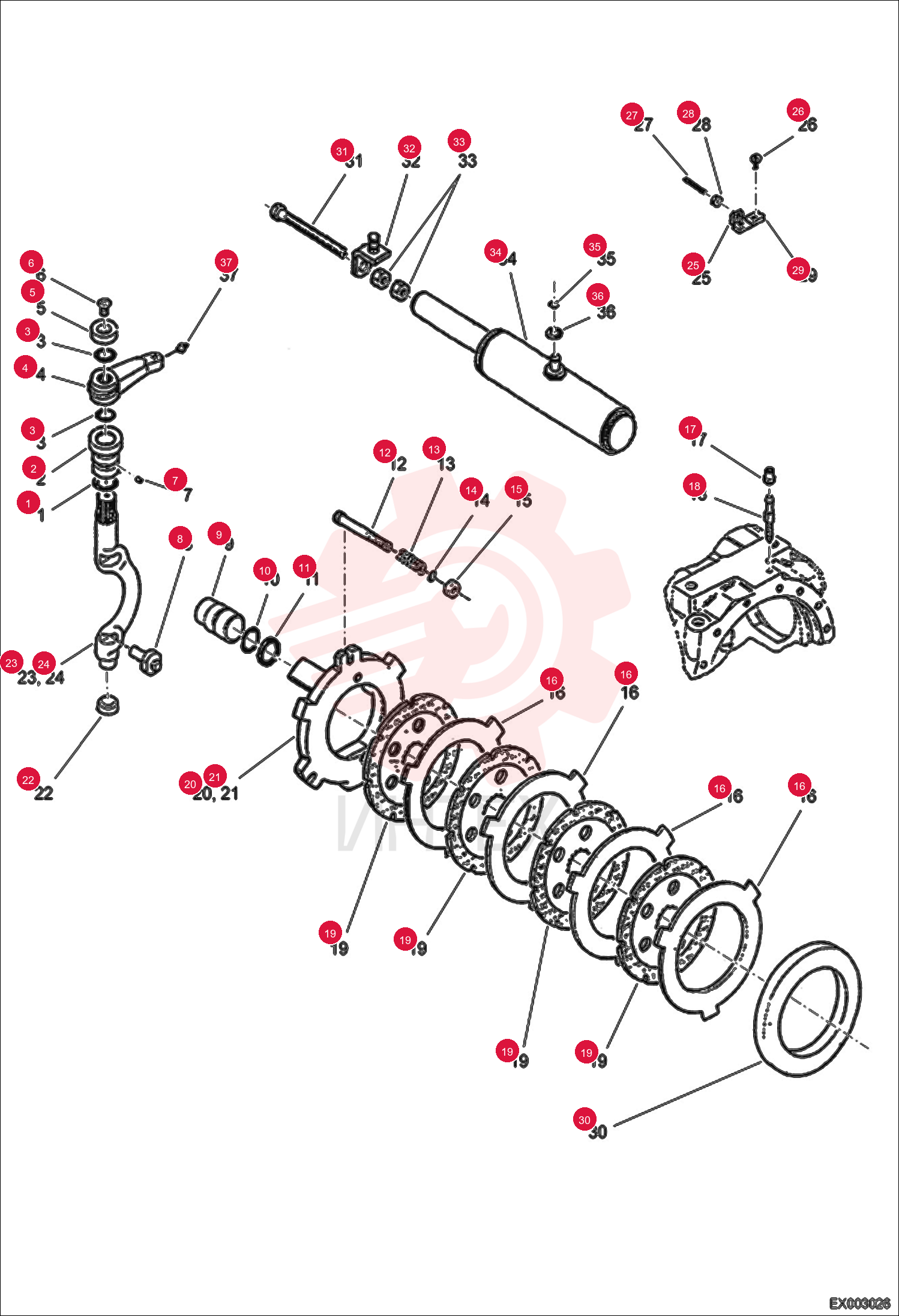

O-RING 7004245

O-RING 7004245

O-RING 7004245

1 7004245

  • 7004245 - O-RING

2 7004000

  • 7004000 - BUSHING REDUCTION

3 7004250

  • 7004250 - O-RING

4 7004341

  • 7004341 - LEVER

5 7004051

  • 7004051 - WASHER

6 7004113

  • 7004113 - BOLT COUNTERSUNK

7 7004117

  • 7004117 - BOLT GRUB

8 7004413

  • 7004413 - PUMP PUSHER

9 7004374

  • 7004374 - PISTON

10 7004256

  • 7004256 - O-RING

11 7004070

  • 7004070 - RING BACK-UP

12 7004120

  • 7004120 - BOLT ADJUSTING

13 7004201

  • 7004201 - SPRING

14 7004249

  • 7004249 - O-RING

15 7004152

  • 7004152 - NUT

16 7004324

  • 7004324 - DISC INTERMEDIATE BRAKE

17 7004282

  • 7004282 - PLUG

18 7004101

  • 7004101 - BOLT BLEEDING

19 7004325

  • 7004325 - DISC BRAKE

20 7004327

  • 7004327 - DISC BRAKE LEFT

21 7004323

  • 7004323 - DISC BRAKE RIGHT

22 7004307

  • 7004307 - PLUG

23 7004343

  • 7004343 - LEVER RIGHT

24 7004342

  • 7004342 - LEVER LEFT

25 7004396

  • 7004396 - STOP RIGHT

26 7004114

  • 7004114 - BOLT

27 7004116

  • 7004116 - BOLT GRUB

28 7004153

  • 7004153 - NUT

29 7004395

  • 7004395 - STOP LEFT

30 7024758

  • 7024758 - SPACER
  • Was 7004046

31 7004112

  • 7004112 - BOLT

32 7004318

  • 7004318 - SUPPORT

33 7004155

  • 7004155 - NUT

34 7004438

  • 7004438 - CYLINDER WHEEL

35 7004073

  • 7004073 - CLIP CIRCLIP

36 7004047

  • 7004047 - SPACER

37 7004304

  • 7004304 - FITTING GREASE
