Bobcat
/
E55W
/

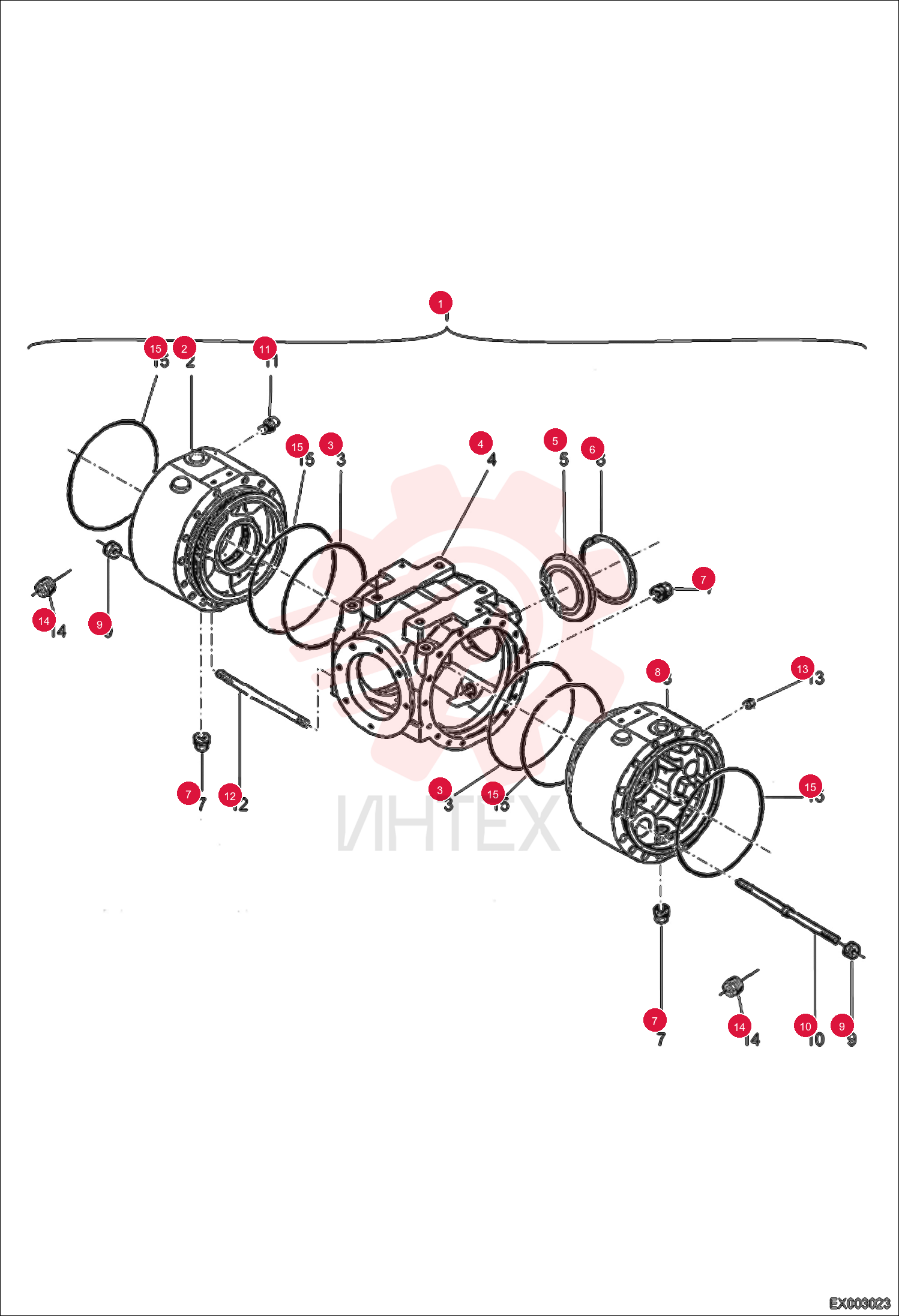

AXLE REAR 7004839 (1)

AXLE REAR 7004839 (1)

AXLE REAR 7004839 (1)

1 7004839

  • 7004839 - AXLE REAR
  • W/Ref. 2-15

2 7004431

  • 7004431 - COVER INTERMEDIATE

3 7004255

  • 7004255 - O-RING

4 7004351

  • 7004351 - HOUSING

5 7007307

  • 7007307 - PLUG

6 7004074

  • 7004074 - CLIP CIRCLIP

7 7004301

  • 7004301 - PLUG MAGNET

8 7004429

  • 7004429 - COVER INTERMEDIATE

9 7004154

  • 7004154 - NUT

10 7004337

  • 7004337 - STUD

11 7004302

  • 7004302 - VENT

12 7004340

  • 7004340 - STUD

13 7267732

  • 7267732 - PLUG
  • Was 7004280

14 7004281

  • 7004281 - PLUG

15 7004254

  • 7004254 - O-RING
